Connecting the adapters for reversing contactor assemblies
A pair of adapters comprising a busbar adapter and a device holder is required for the busbar
mounting of a reversing contactor assembly. The pair of adapters can be assembled from
individual components without the need for tools. The 63 mm wide adapter must be used for
assembling the size S2 adapter pair.

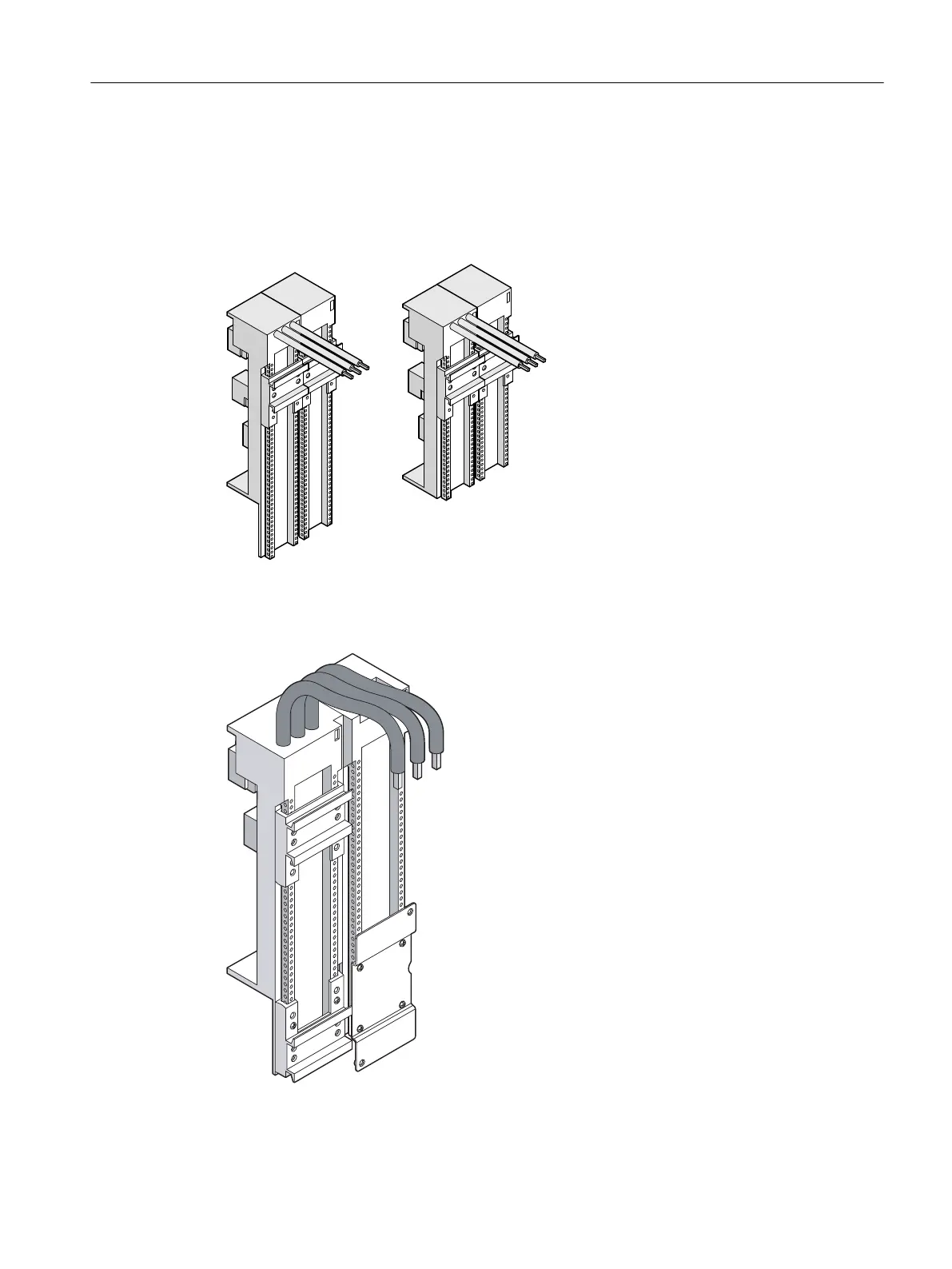

Figure 7-35 Adapter pairs for reversing contactor assembly (busbar adapter and device holder, size S00 /
S0)
Figure 7-36 Adapter pairs for reversing contactor assembly (busbar adapter and device holder, size S2)
