Busbar adapters and device holders can be connected without tools. Link wedges simply need
to be plugged in on the rear of the adapters.

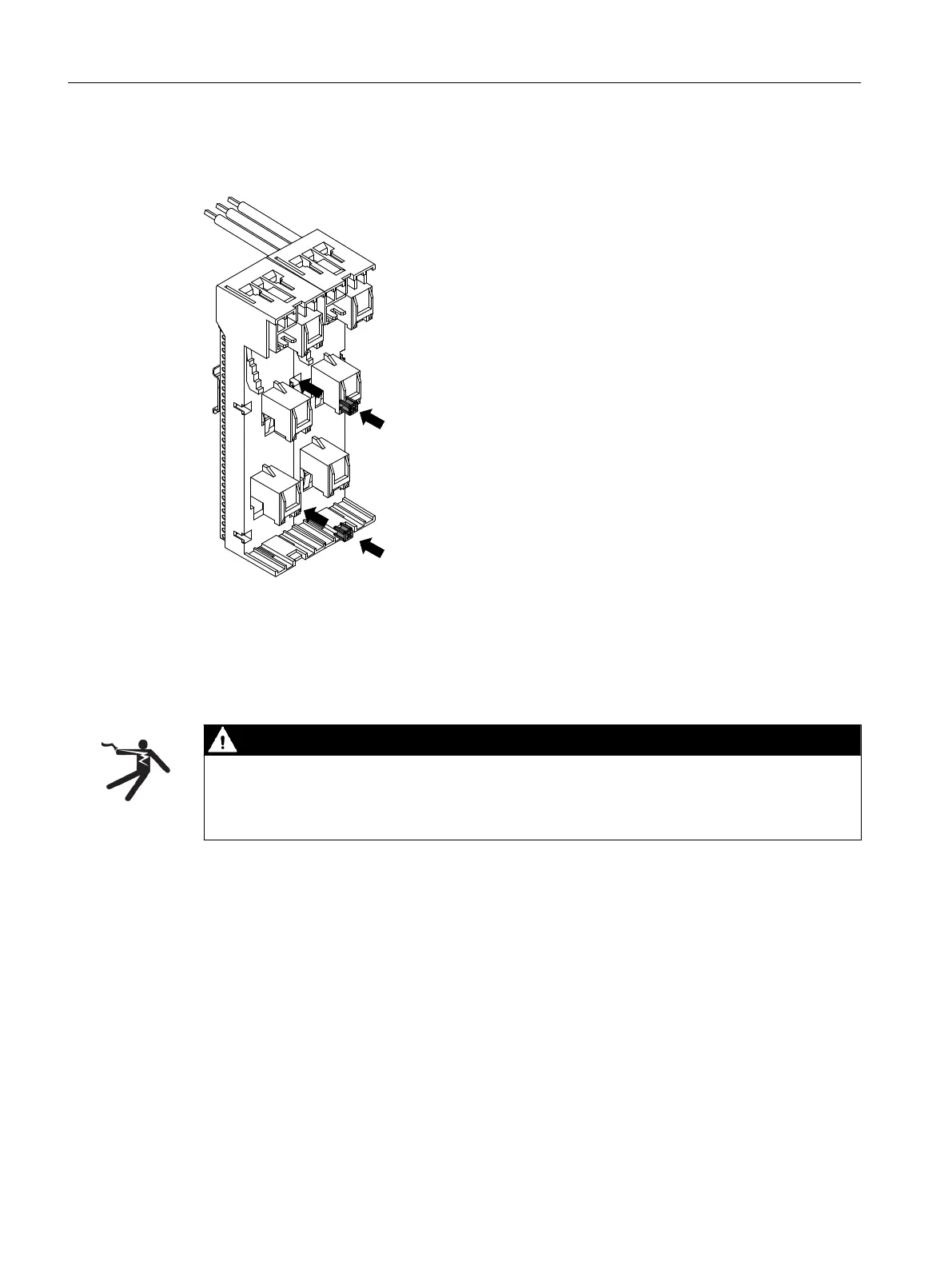

Figure 7-37 Connecting the adapters for mounting reversing contactor assemblies
The link wedges are included in the assembly kit for reversing operation, or they can be ordered
separately as accessories.
Adapting the busbar adapter to the busbar system
DANGER
Hazardous voltage!
Will cause death or serious injury.
Turn o and lock out all power supplying this device before working on this device.
The busbar adapter and the device holder can be adjusted to suit the following busbar
thicknesses:
• 5 mm (delivery condition)
• 10 mm
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
92 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
