Adjusting the busbar adapter to suit the busbar thickness
① Push the 3 fastening blocks down.
② Adjust the fastening blocks in accordance with the busbar thickness (5 mm/10 mm).
③ Push the fastening blocks up until they engage.
Figure 7-38 Adjusting the busbar adapter to suit the busbar thickness
Mounting the busbar adapter on the busbar
Attaching the busbar adapter to the busbar is a very straightforward process. The busbar hooks
on the rear of the adapter will hold the structure securely on the bar even under severe ambient
conditions.
① Press the button on the top of the busbar adapter to release the holder. The holder should ip out
from the front of the busbar adapter.

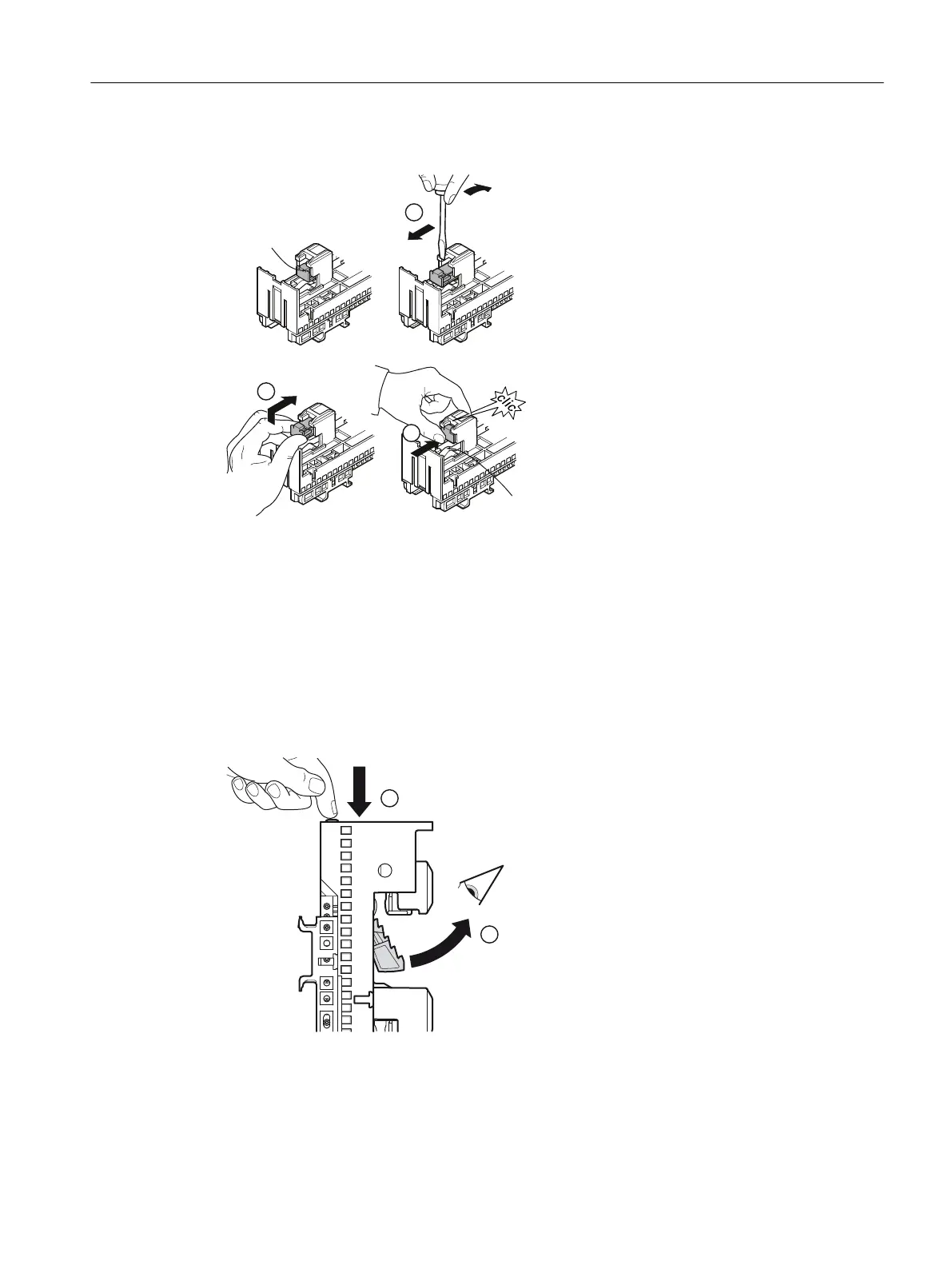

Figure 7-39 Mounting the busbar adapter on the busbar
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004 93
