② Attach the busbar adapter to the busbars from above.

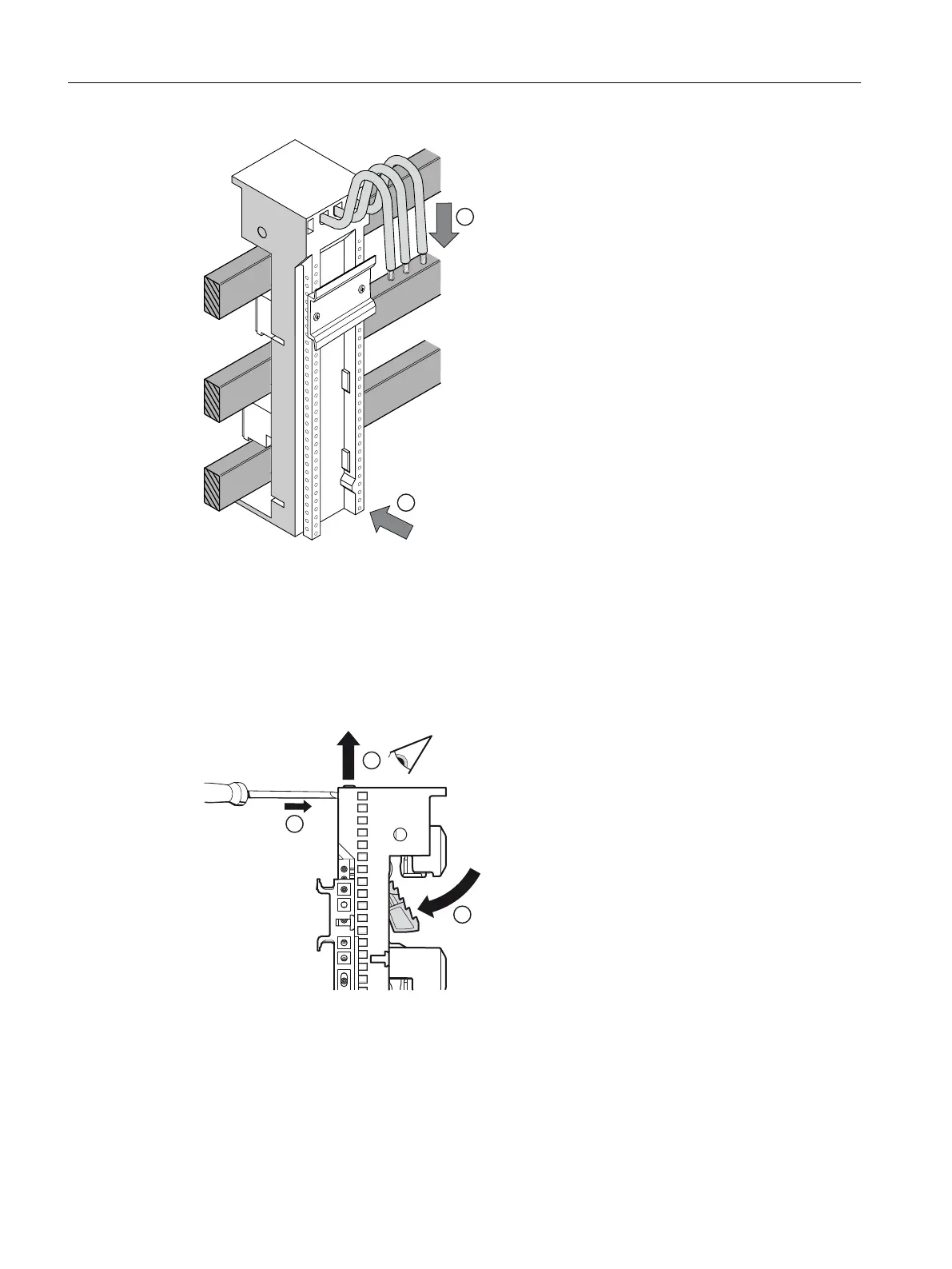

Figure 7-40 Mounting the busbar adapter on the busbar
Disassembly of the busbar adapter from the busbar system
The diagrams below illustrate how the busbar adapter is disassembled from the busbar system:
① From the front, insert a screwdriver into the right-hand opening on the busbar adapter and lock
the holder. The button on the top of the busbar adapter should spring up and lock.
Figure 7-41 Disassembling the busbar adapter from the busbar
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
94 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
