② Remove the busbar adapter from the busbars. To do this, you will rst need to push it up slightly
so that you can remove it by pulling it o toward you.

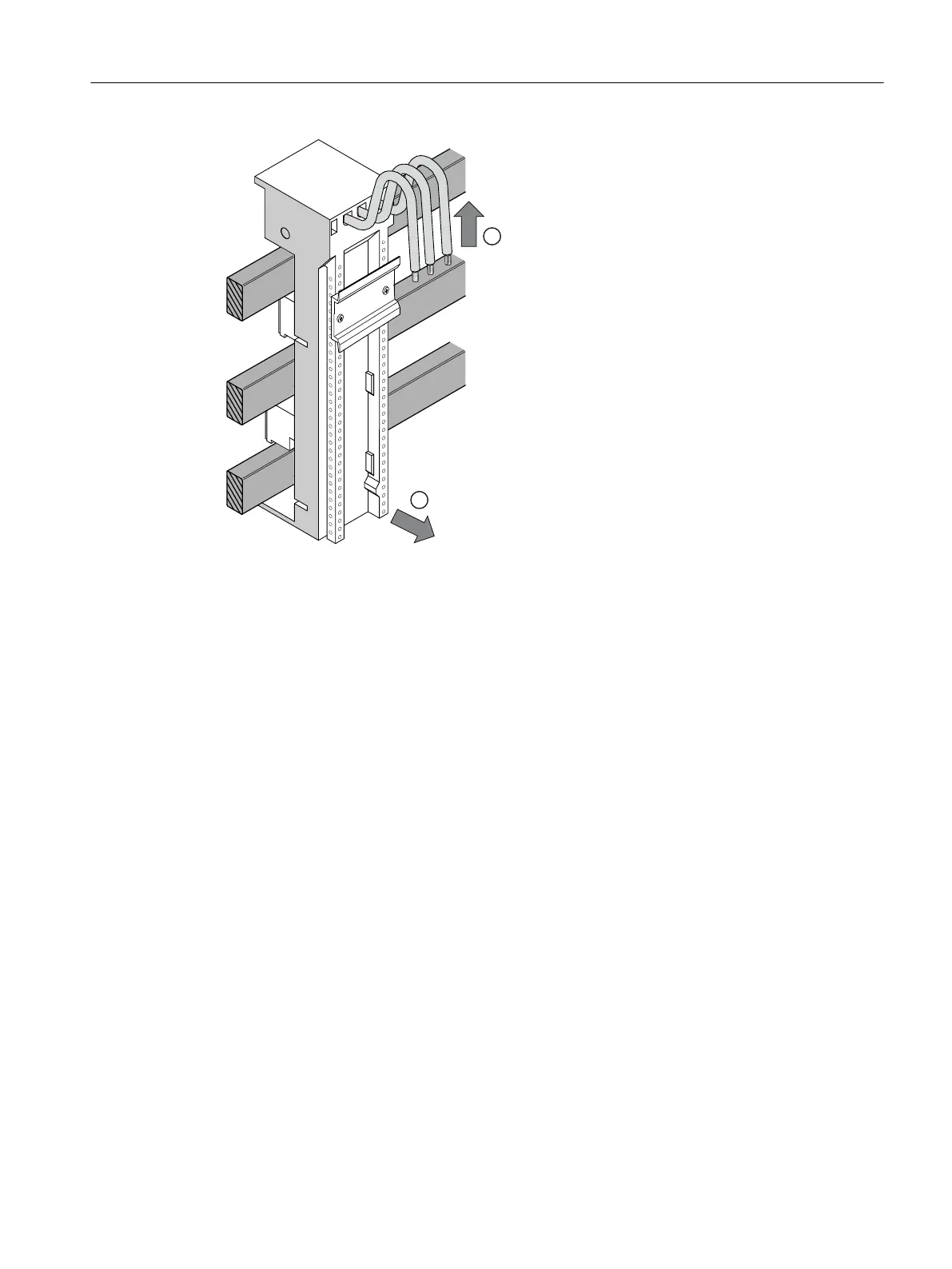

Figure 7-42 Disassembling the busbar adapter from the busbar
Mounting components on the busbar adapter
Mounting the direct-on-line starter (sizes S00 and S0)
The load feeder components can be attached to the busbar adapter without tools.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004 95
