① Mount the link module on the contactor.
② Insert the connectors into the corresponding main conductor terminals.
③ Screw the main conductor terminals tight.
④ Place the contactor and the link module on the bottom of the motor starter protector. Insert the guide tabs into the
slots on the motor starter protector. Insert the connectors into the corresponding main conductor terminals at the
same time.
⑤ Screw the main conductor terminals tight.
⑥ Snap the direct-on-line starter onto the busbar adapter.
⑦ Connect the connection cables to the applicable main conductor terminals.
⑧ Slide the positioning piece from below onto the busbar adapter until it engages at the bottom on the contactor.

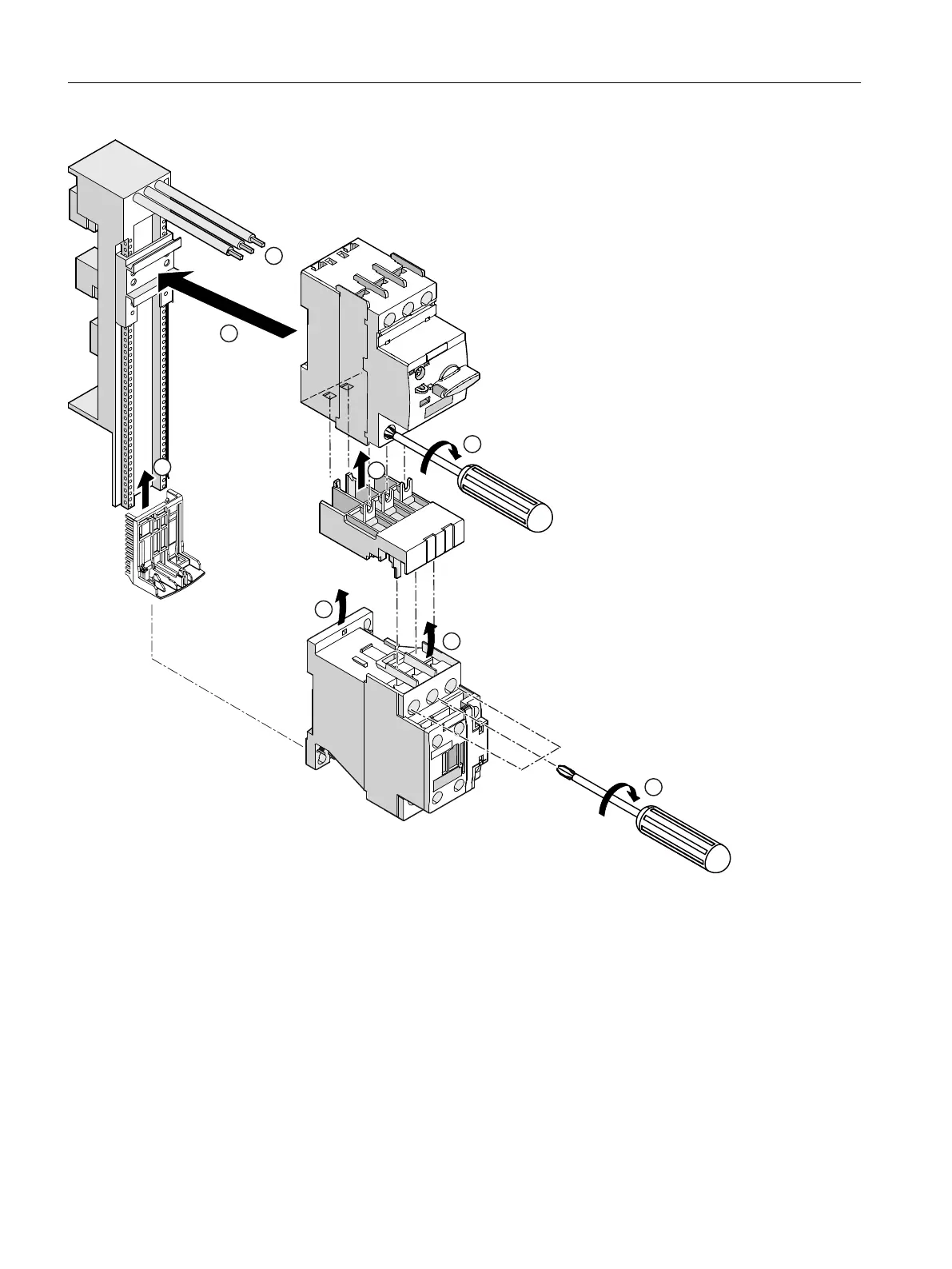

Figure 7-43 Mounting on the busbar adapter (direct-on-line starter, screw-type connection system, size S0)
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
96 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
