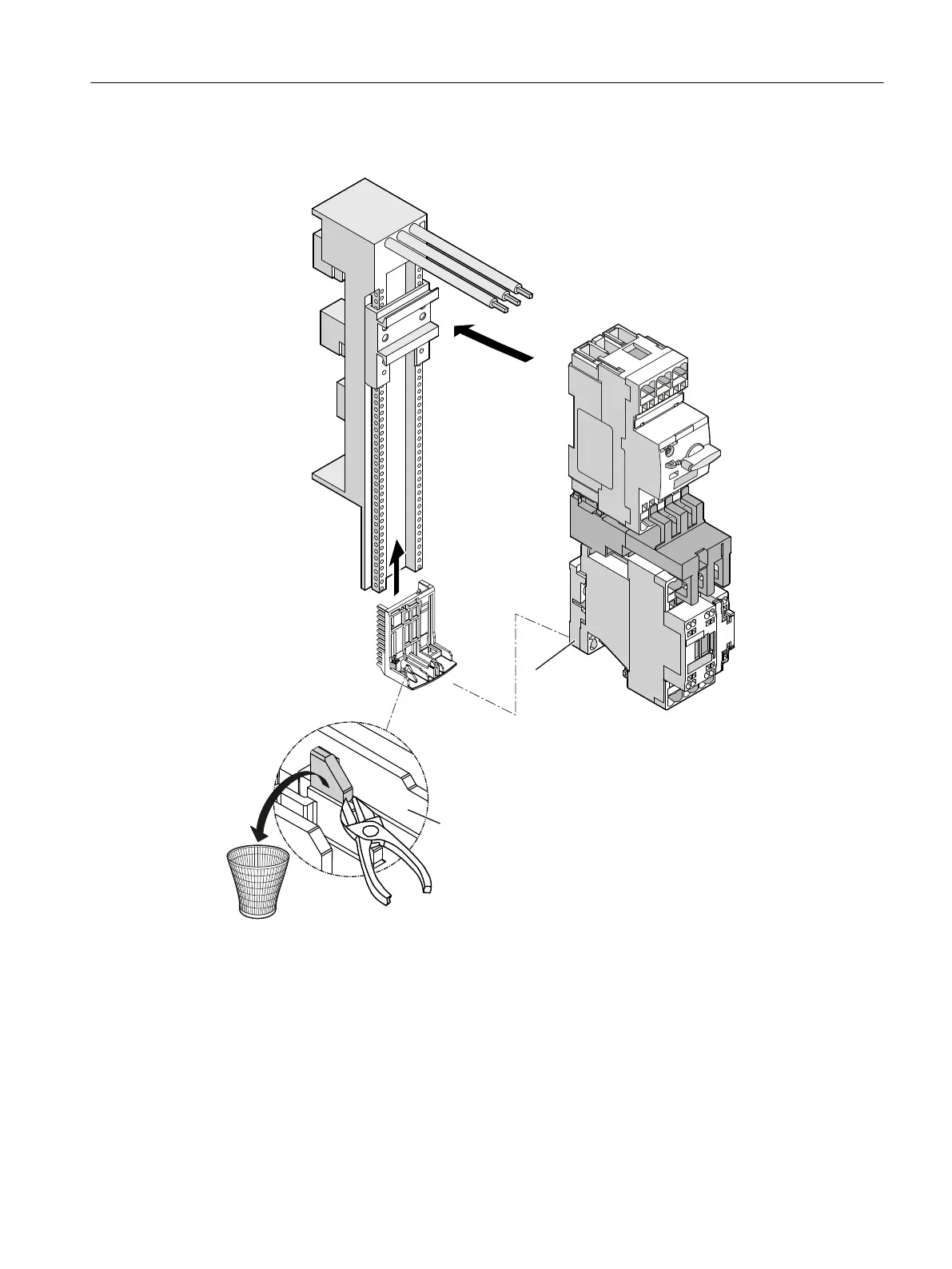

Figure 7-44 Mounting on the busbar adapter (direct-on-line starter, spring-loaded connection system,
size S0)
Slide the positioning piece from below onto the busbar adapter until it engages at the bottom
on the contactor. In the case of contactors in size S0 with AC operation and spring-loaded
connection technology, the lug must be broken o (a).
S0 contactors with AC operation and spring-loaded connection system need a spacer (d).
The positioning piece and spacer are included in the assembly kit or can be ordered separately.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004 97
