Mounting the direct-on-line starter (size S2)
The 󹪝gur

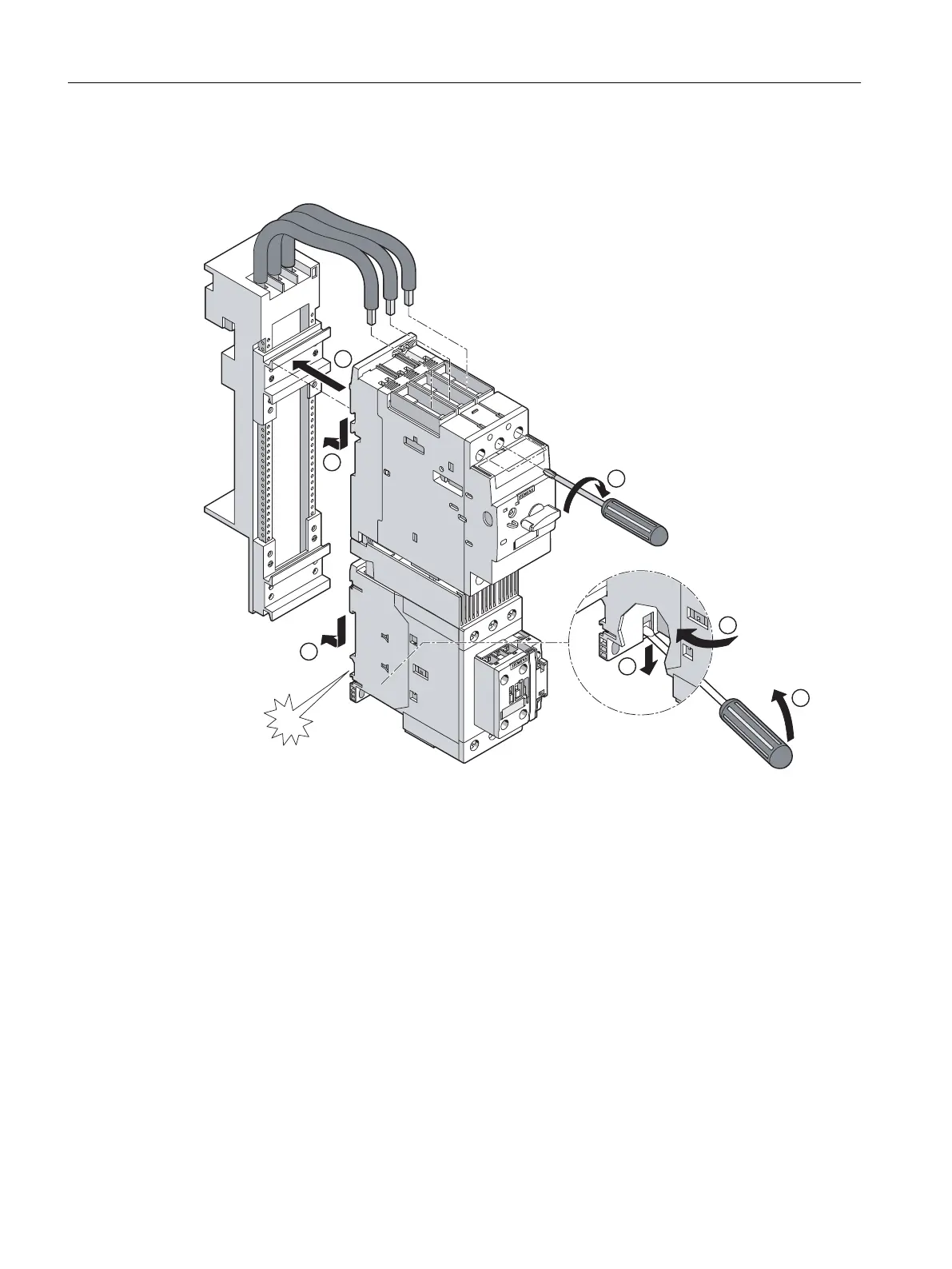

e below shows the work steps for mounting the direct-on-line starter in size S2.







FOLFN
①/
②
Hook the feeder into the upper hooking position of the motor starter protector, and swivel the
f
eeder to the busbar adapter.
③ Press the lock on the contactor down using a screwdriver, and push the feeder onto the DIN rail
of t
he busbar adapter.
④ Insert the connecting cables into the corresponding main conductor terminals. Screw the main
conduct
or terminals tight.
Figure 7-45 Mounting on the busbar adapter (direct-on-line starter, screw-type connection system, size
S2)
