SIRIUS 3RT2 contactors/contactor assemblies
2.7 Accessories
SIRIUS Innovations
216 System Manual, 01/2011, A8E56203870002-03
Assembling the reversing contactor assembly with spring-loaded connection - size S0
The illustrations below show the components of the assembly kit for the reversing contactor
assembly in size S0 and explain the assembly procedure. The mechanical interlock and the
connecting clips are mounted in the same way as described for size S00 with screw-type
connection.

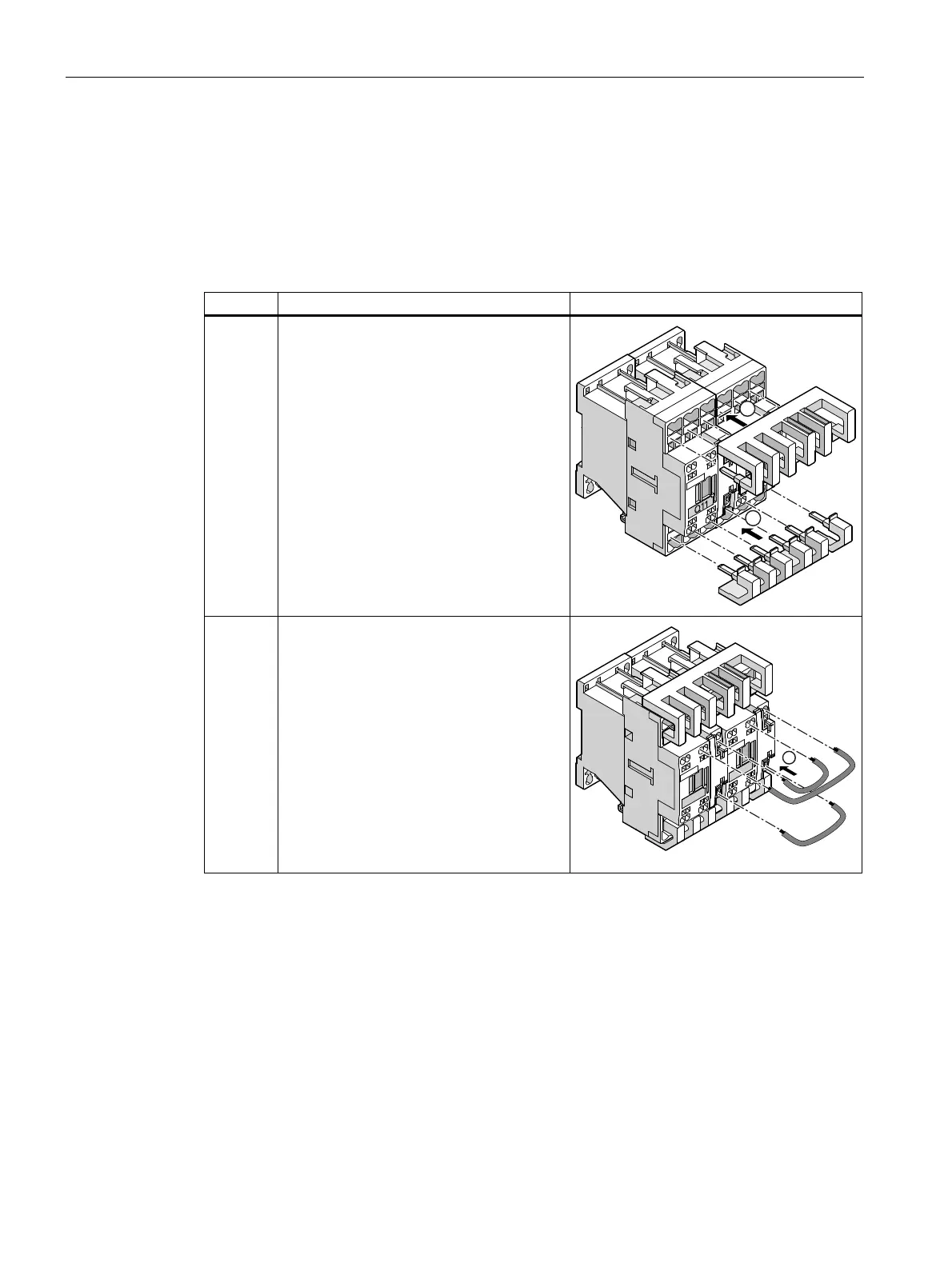

Table 2- 70 Assembling the reversing contactor assembly with spring-loaded connection (size S0)
Step Operating instruction Figure
1 / 2 Attach the wiring modules for connecting
the main current paths to the contactors
from above and below.


3 For connecting the control current paths
strip the conductors and push them into the
contactor terminals from above and below.
Note:
The conductors required for connecting the
control current paths are not included in the
scope of supply of the assembly kit for
reversing contactor assemblies with spring-
loaded connection (size S0).

