SIRIUS 3RA28 function modules for mounting on 3RT2 contactors
7.6 Mounting
SIRIUS Innovations
666 System Manual, 01/2011, A8E56203870002-03
7.6.4.2 Function module for star-delta (wye-delta) start
DANGER
Hazardous Voltage
Will Cause Death, Serious Injury or Property Damage
Turn off and lock out all power supplying this device before working on this device.

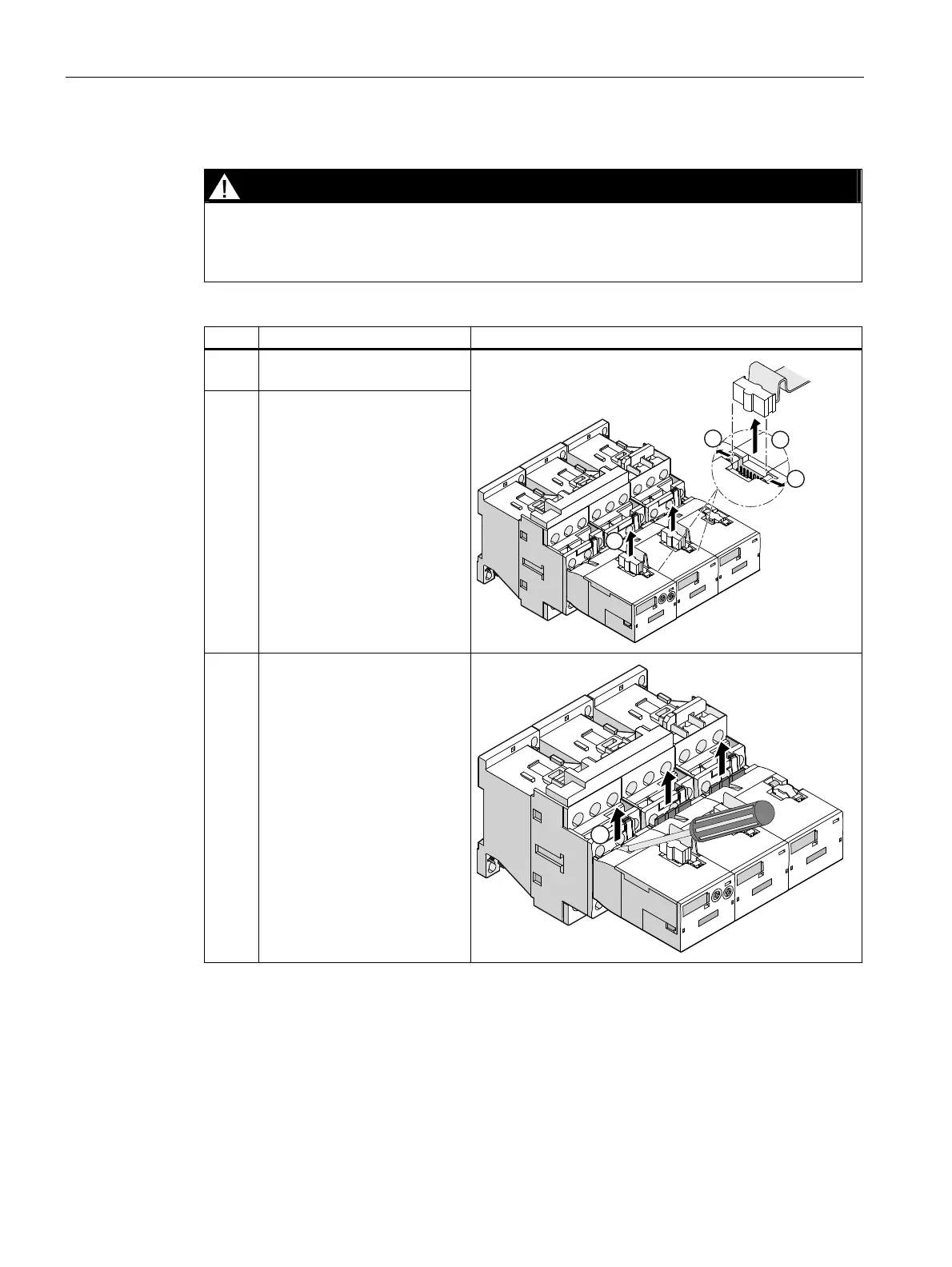

Step Operating instruction Figure
1 Remove the locking
mechanisms.
2 Remove the module connecter
from the connector by lifting it
up and out.




3 Push the interlock slide up with
a screwdriver.

