4.9.3.2 Mounting
Note
The auxiliary switches are mounted in the same way for all sizes.
Mounting auxiliary switches

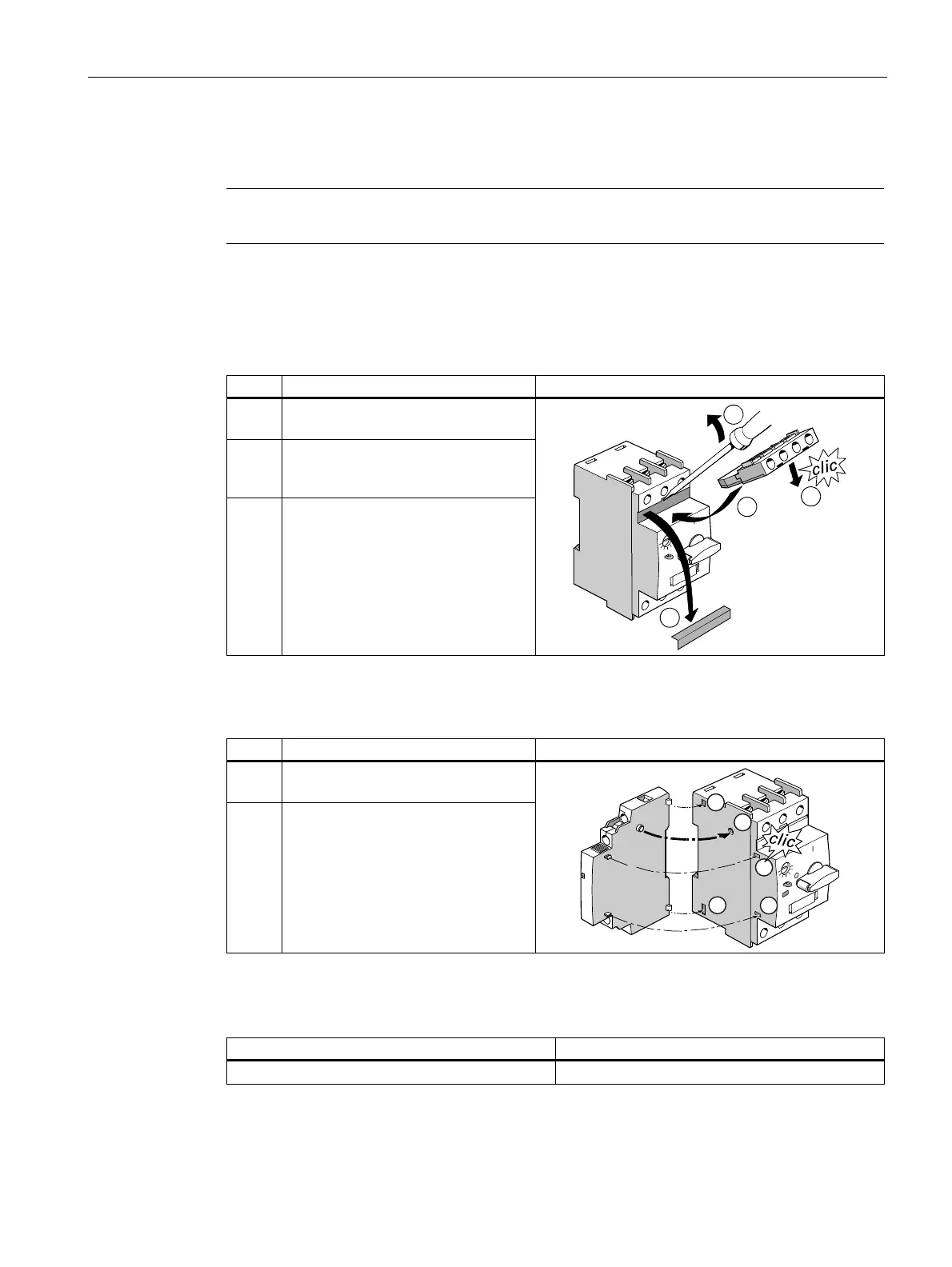

Table 4- 9 Mounting a transverse auxiliary switch
Step Operating instruction Figure
1 / 2 Using a screwdriver, carefully force
off the cover.
3 Slant the transverse auxiliary switch
and push it into the opening on front
of the motor starter protector.
4 Press the transverse auxiliary switch
down until you hear it engage.




Table 4- 10 Mounting a lateral auxiliary switch
Step Operating instruction Figure
1 Attach the lateral auxiliary switch to
the rear of the motor starter protector.
2 Press the auxiliary switch to the
motor starter protector until you hear
it engage.





Reference
More information ... Is available in ...
About connection the chapter titled Circuit diagrams (Page 482)
