SIRIUS 3RV2 motor starter protectors

4.9 Accessories

SIRIUS Innovations

System Manual, 01/2011, A8E56203870002-03

425

4.9.8.2 Mounting

Mounting the door-coupling rotary operating mechanism

min. 16 mm

max. 20 mm















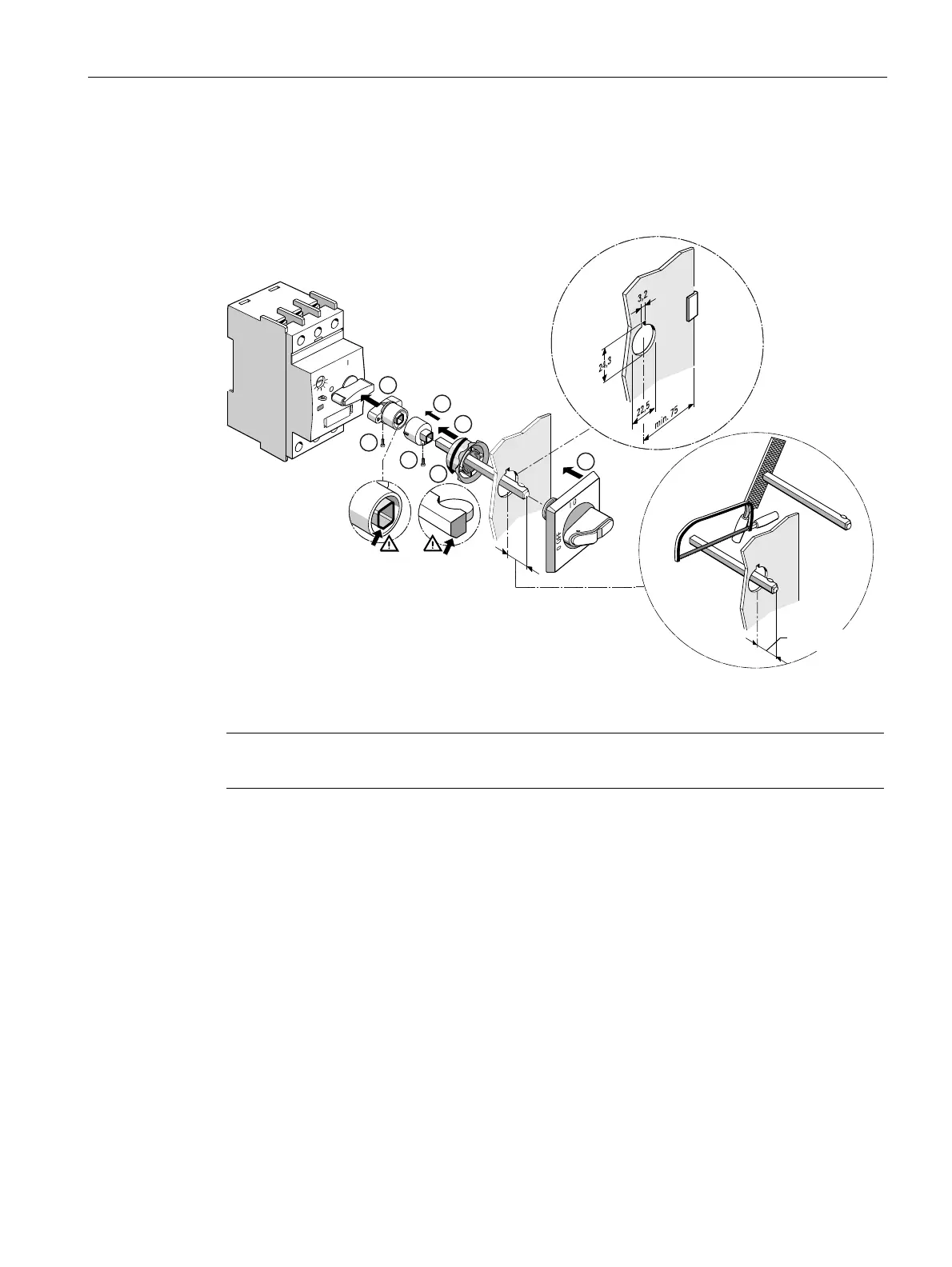

Figure 4-8 Mounting the door-coupling rotary operating mechanism

Note

Remember to observe the mechanical coding of the connecting rod!
