SIRIUS 3RV2 motor starter protectors
4.11 Dimension drawings (dimensions in mm)
SIRIUS Innovations
478 System Manual, 01/2011, A8E56203870002-03
4.11 Dimension drawings (dimensions in mm)
Note
All dimensions are specified in mm.
4.11.1 Dimension drawings for 3RV2 motor starter protectors
Motor starter protector with screw-type connection system






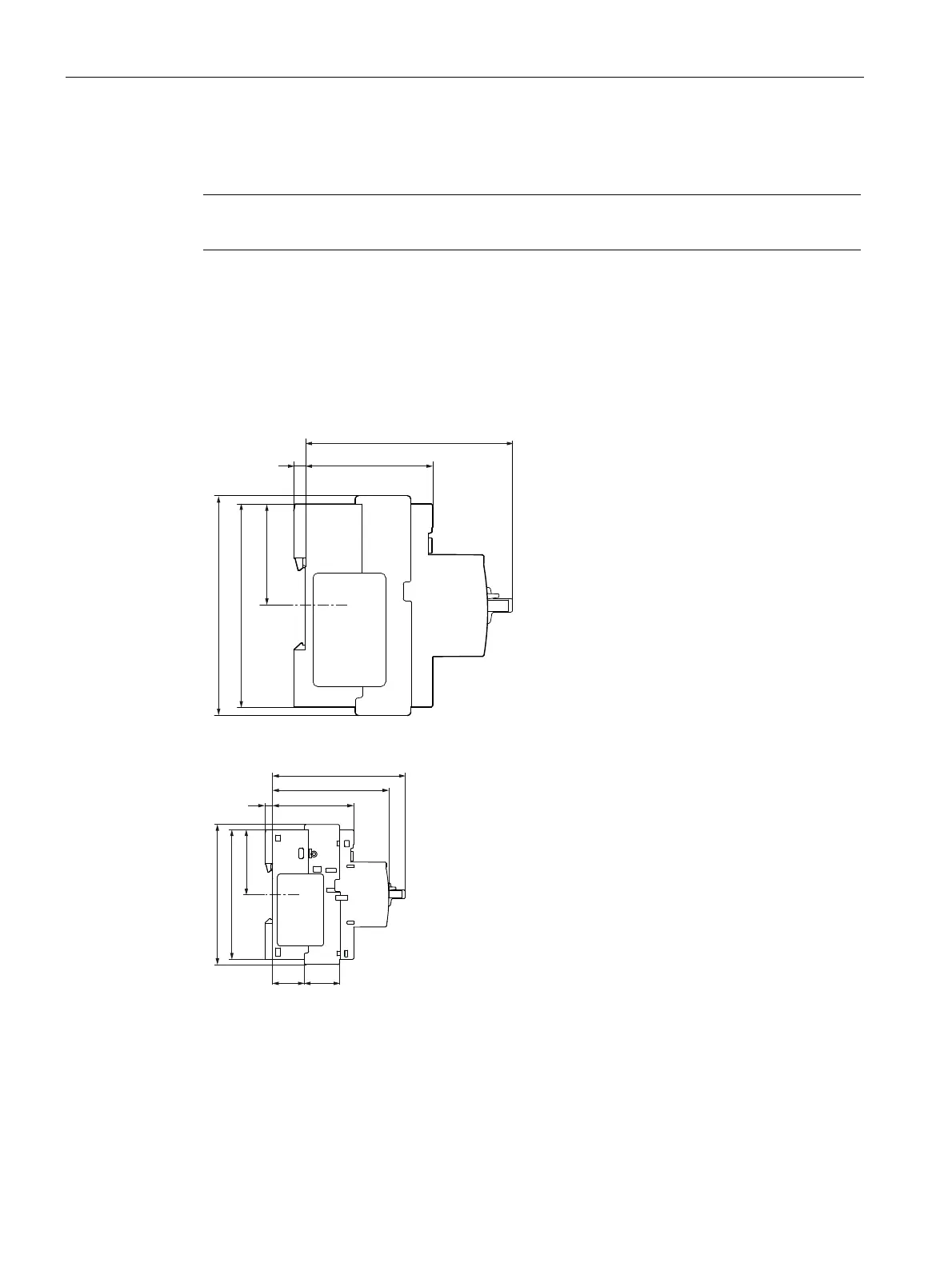

Figure 4-10 Motor starter protector with screw-type connection system S00









Figure 4-11 Motor starter protector with screw-type connection system S0
