SIRIUS 3RA21/22 load feeders
6.6 Mounting
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
579
6.6.2.3 Load feeder with spring-loaded connection system
Mounting an S00 load feeder with spring-loaded connection system
D
F

Table 6- 11 Mounting an S00 load feeder with spring-loaded connection system
Step Operating instruction

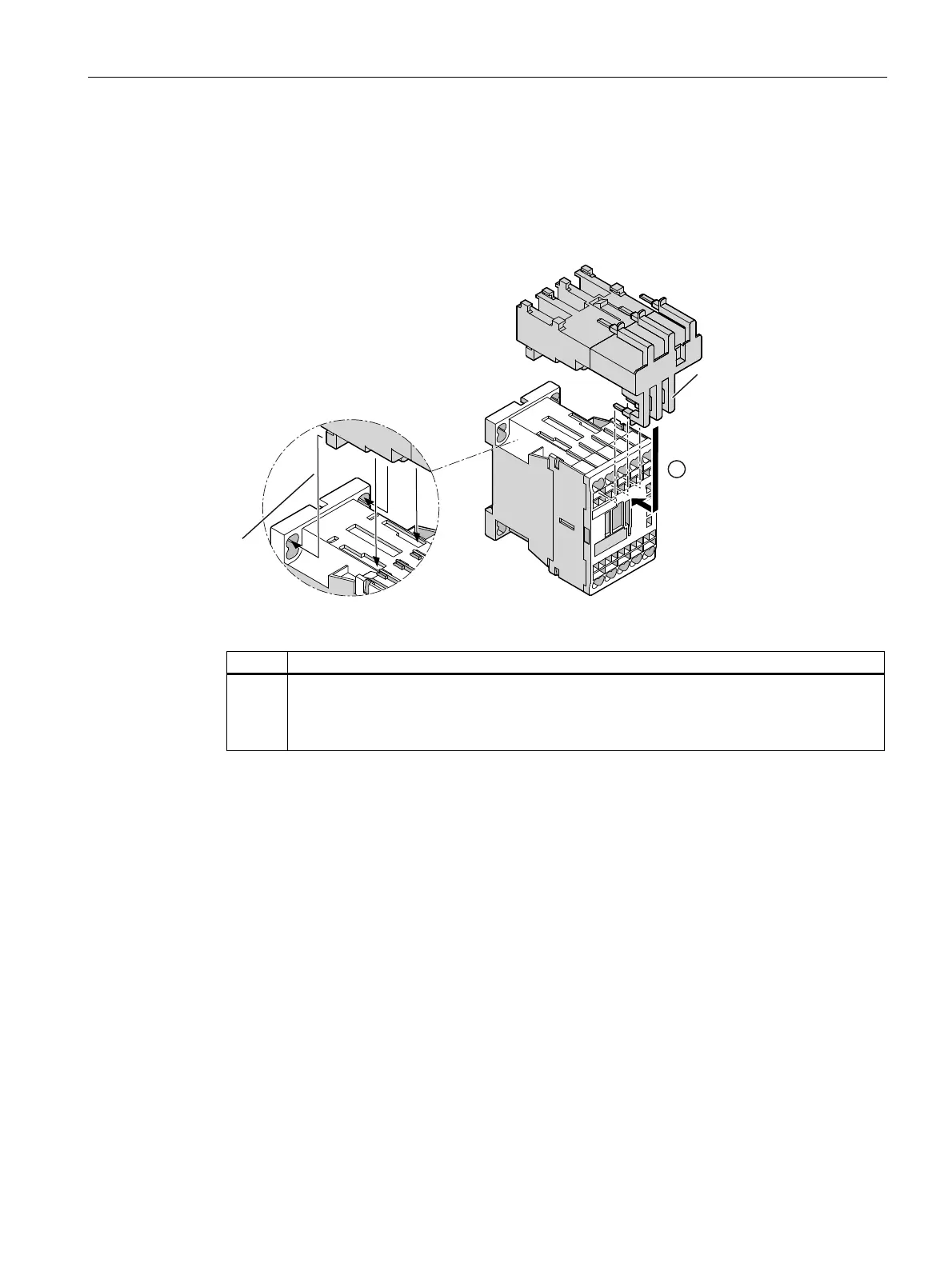

1 Insert the connectors (a) on the link module into the corresponding main conductor
terminals (a) on the contactor. Make sure that the guide tabs are inserted into the slots (c)
on the contactor.
The link module will sit flush with the contactor on the left- and right-hand sides.
To Next Page
