System overview
1.7 Components and combinations
SIRIUS Innovations
54 System Manual, 01/2011, A8E56203870002-03
1.7.2.2 SIRIUS 3RV2917 infeed system
3RV2917 infeed system
6
4
7
3a
3b
2
1
5
5
5
5
1 3-phase busbar with infeed
2 3-phase busbar for system expansion
3 Expansion plug
4 End cap
5 Connector
6 Contactor base
7 Outgoing terminal

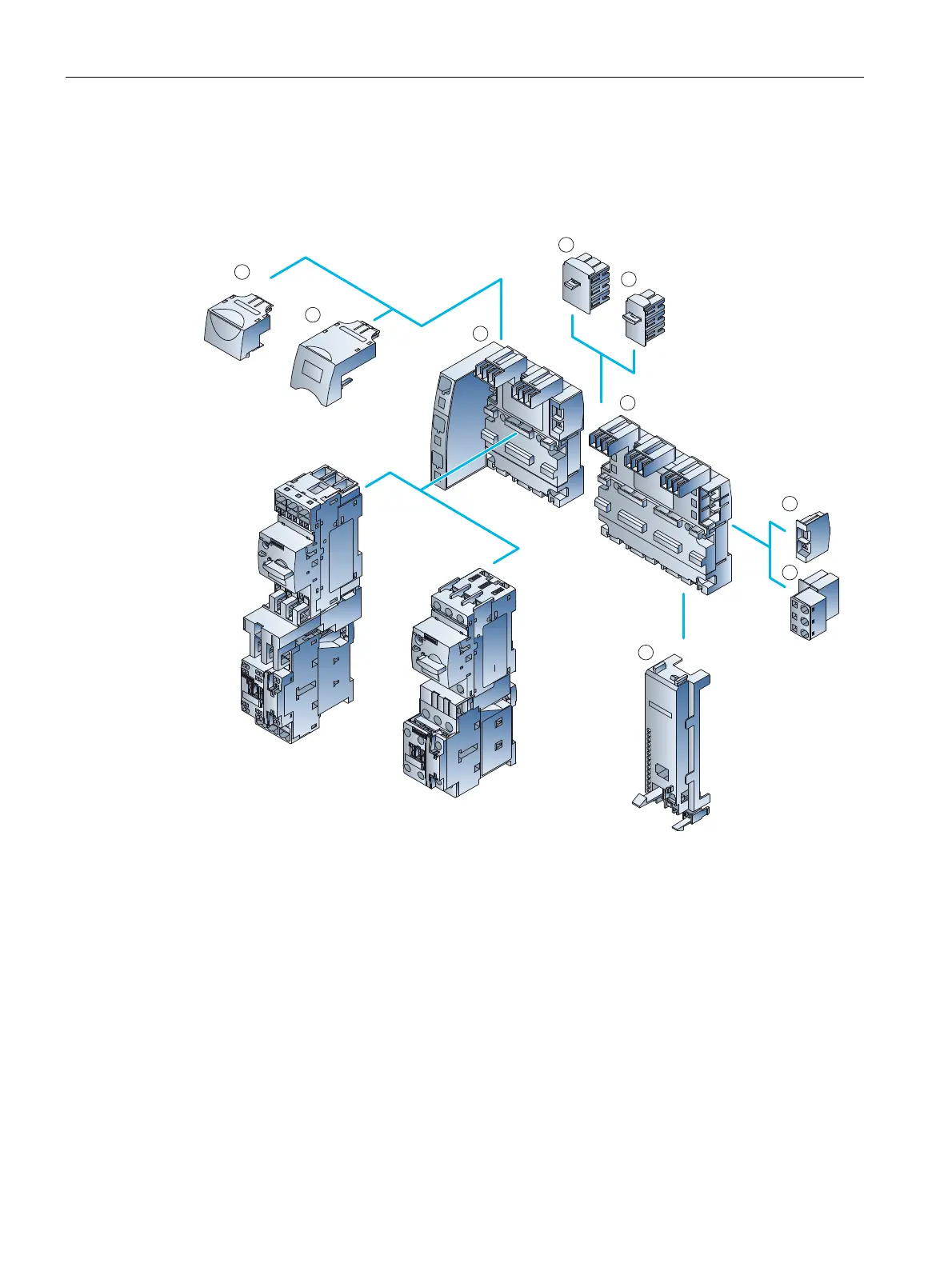

Figure 1-22 3RV2917 infeed system
