SIRIUS 3RF34 solid-state switching devices
3.2 Product description
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
323
9
$
'&
$
/ / /
/ / /
SIRIUS
5)%%
*(

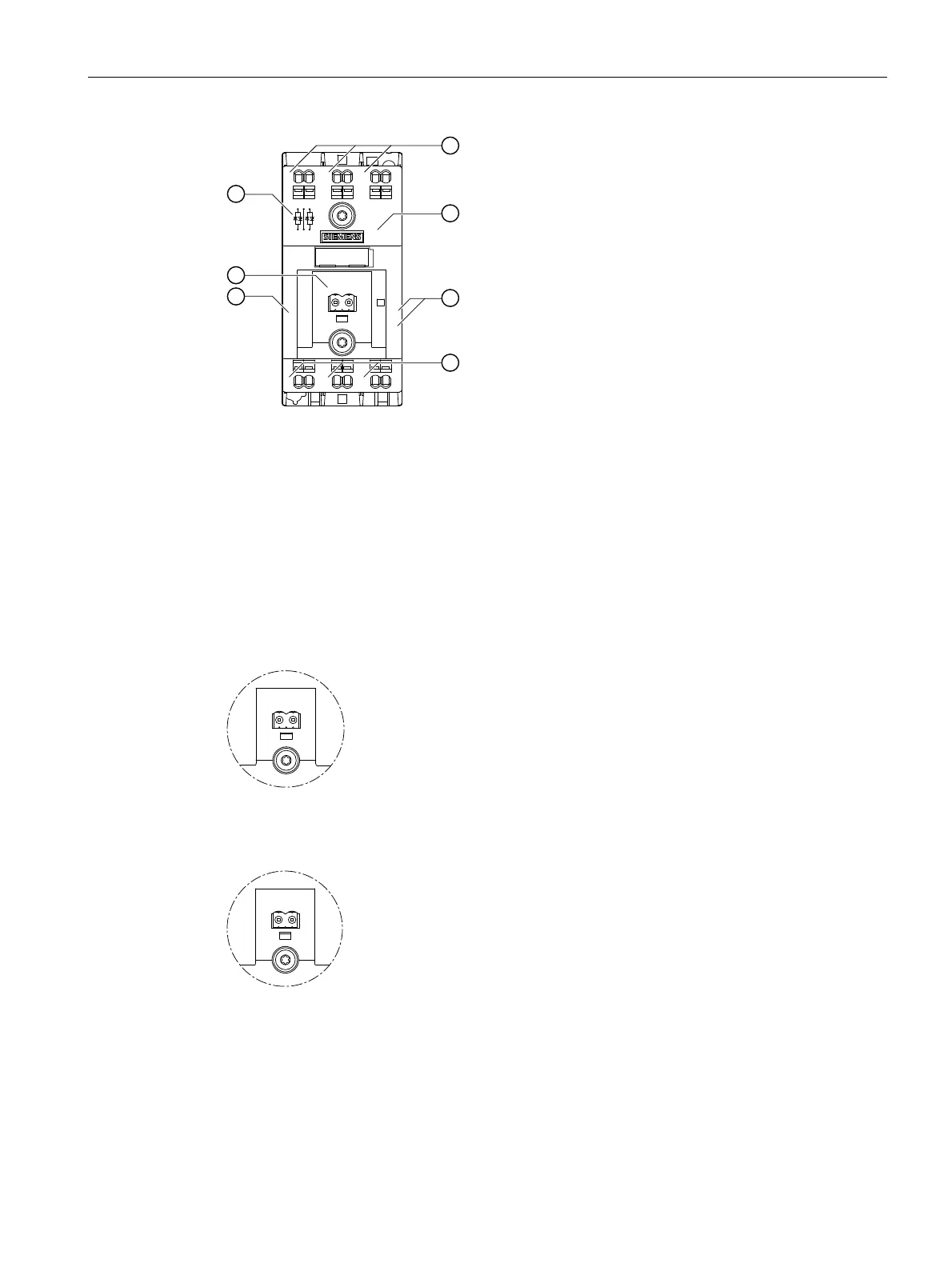

1 Labeling to identify the main circuit terminals infeed/line side
2 SIRIUS (device group)
3 Production date/Product version
4 Labeling to identify the main circuit terminals outgoing feeder motor/load side
5 Order designation
6 Labeling to identify the control circuit terminals and indication of the control voltage
(See also the diagrams below, "Labeling on solid-state contactors, zoom view".)
7 Circuit diagram
Figure 3-4 Labeling to identify solid-state contactors with spring-loaded terminals
9$&
$$
Figure 3-5 Labeling on solid-state contactors with AC control voltage, zoom view
9
$
'&
$
Figure 3-6 Labeling on solid-state contactors with DC control voltage, zoom view
