SIRIUS 3RU2/3RB3 overload relays

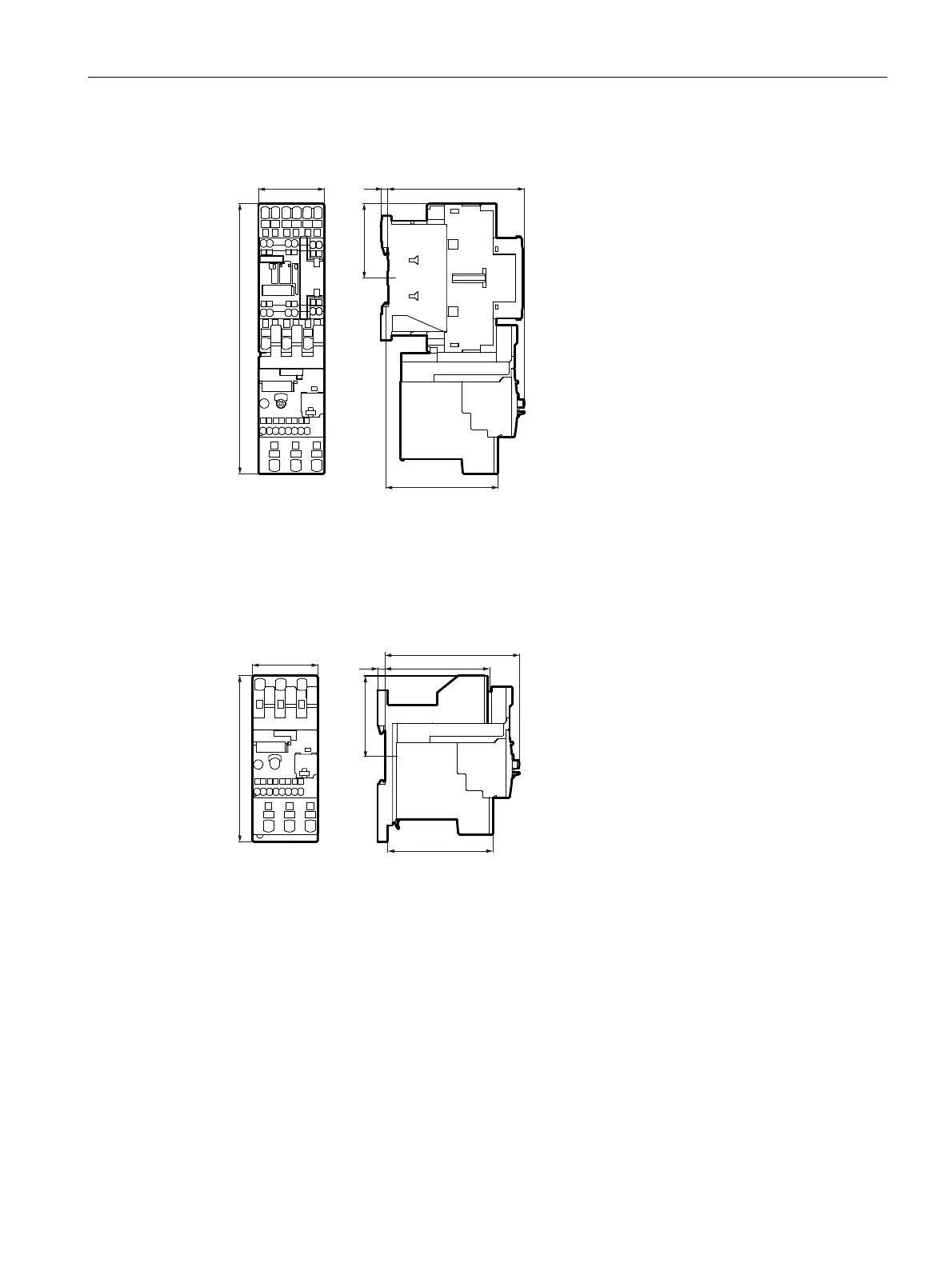

5.11 Dimension drawings (dimensions in mm)
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
555
3RU2126-..C0 (S0)
5
51
185
45
a
b
a AC: 93; DC: 103
b AC: 76; DC: 86
Figure 5-13 3RU2126-..C0
3RU2126-4.C1 (S0)
55
55
92
114
45
72
73
Figure 5-14 3RU2126-4.C1
