1.7 Components and combinations

SIRIUS Innovations

64 System Manual, 01/2011, A8E56203870002-03

Infeed system for 3RA6 compact starter























1 Infeed on left or right using spring-loaded connection system

2 Infeed on left using screw-type connection system

3 Expansion module

4 Expansion plug

5 Terminal block

6 Expansion plug for 3RV19

7 PE infeed

8 PE expansion plug

9 PE tap

10 45 mm adapter for infeed system for 3RA6

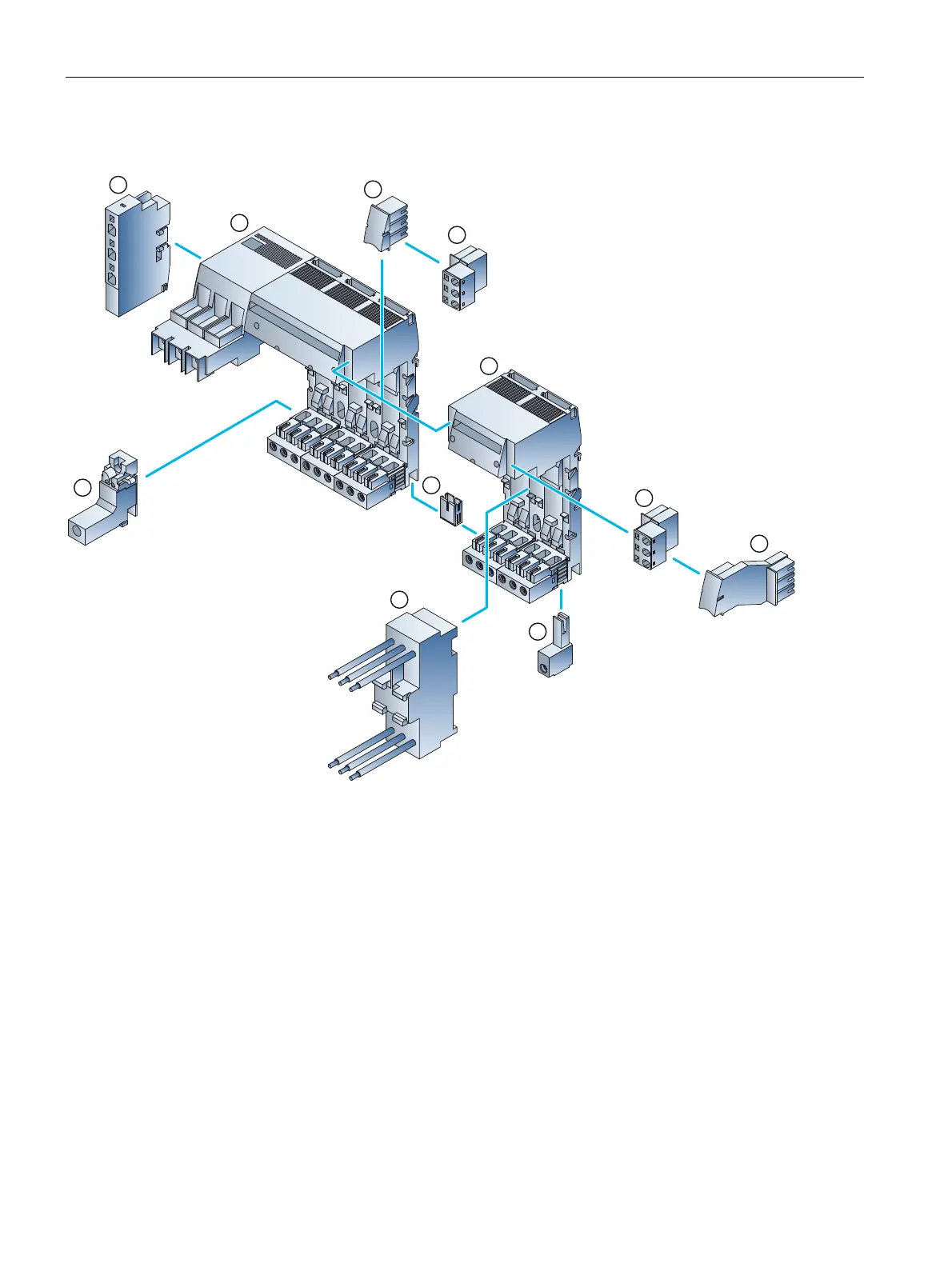

Figure 1-30 Infeed system for 3RA6 compact starter
