Siemens SIRIUS 3RT2.1 Series System Manual

System overview
1.10 Connection to the higher-level control
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
87
In addition to the established fieldbus systems, SIRIUS Innovations also safeguard
communication right up to the "final mile" on the actuator side. In a similar way to with
PROFIBUS DP and AS-Interface, a user organization made up of a range of renowned
manufacturers ensures that control data, status data, and diagnostics data can now be
transferred in accordance with a uniform communication standard via IO-Link intelligent
wiring, as well as via classic parallel wiring.
ET200S mit
IO-Link Master
ET200S
Verdrahtungssystem
Schalt-
geräte
SIRIUS
Schalt-
geräte
SIRIU
S
Aktoren Aktoren
K20
Feld-
verteiler
Sensoren Sensoren
Punkt-zu-PunktVerbindung Klassische Verdrahtung
666 3n666 3n
$FWXDWRUV 6HQVRUV
)LHOG
GLVWULEXWRU
6,5,86
6ZLWFKLQJ
GHYLFHV
6ZLWFKLQJ
GHYLFHV
6,5,86
(76ZLWK
,2/LQNPDVWHU
3RLQWWRSRLQWFRQQHFWLRQ
&ODVVLFDOZLULQJ
:LULQJV\VWHP
$FWXDWRUV
ET200S
K20
6HQVRUV

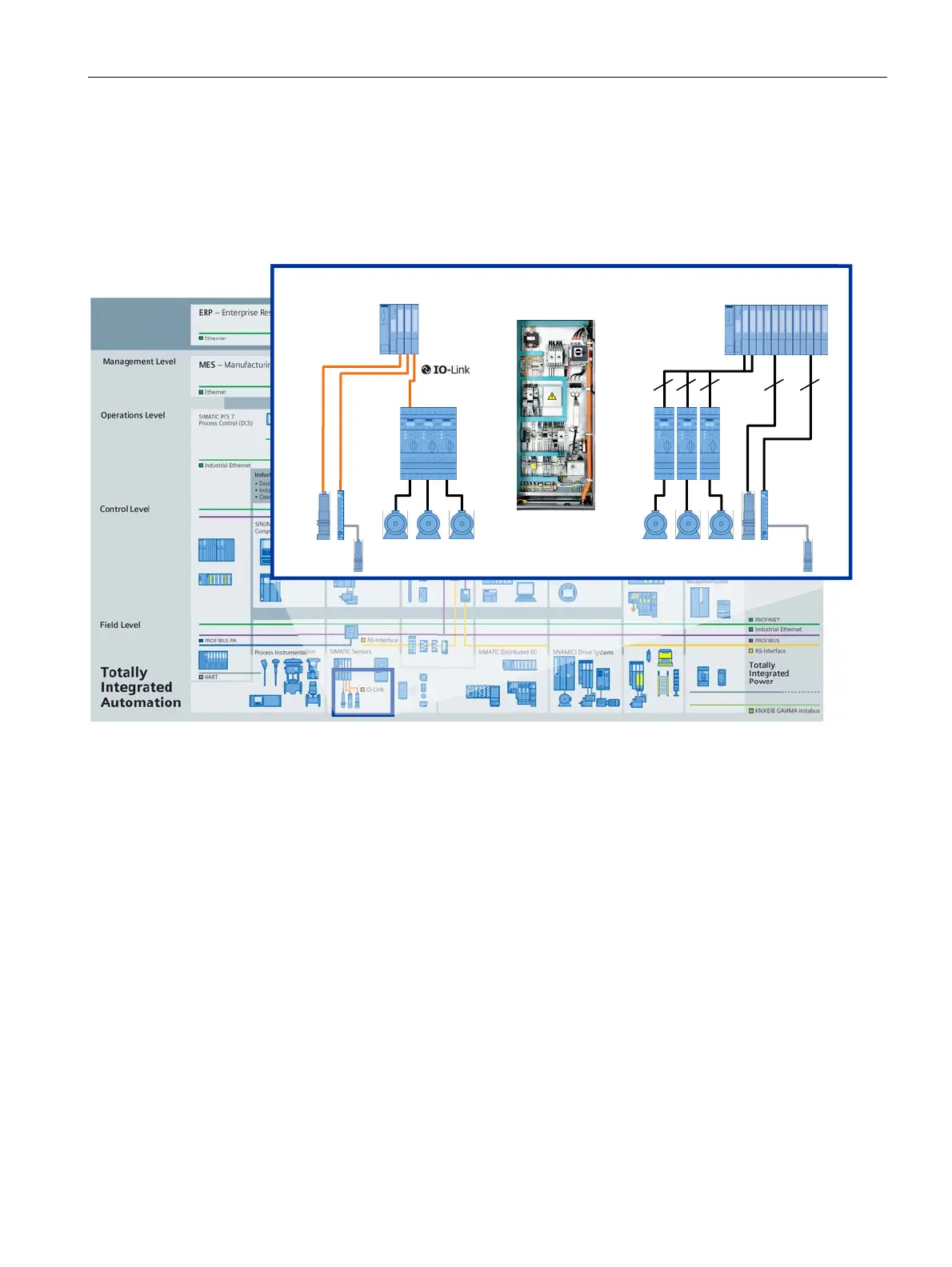

Figure 1-39 Connection to the higher-level control
SIRIUS switching devices can be connected to higher-level control systems using
conventional wiring, but also by means of intelligent wiring and a fieldbus:
● IO-Link
● AS-Interface
SIRIUS switching devices are linked into the Siemens Totally Integrated Automation concept
via function modules. Totally Integrated Automation offers the user uniformity in terms of
configuration, programming, data storage, and communication.
