Siemens SIROTEC Installation And Start-Up Manual

System Overview
SINAMICS S120 components
1-24
E Siemens AG, 2004. All rights reserved
SINAMICS S120 Installation and Start-Up Manual, 12/04 Edition
1.5 SINAMICS S120 components
3-Phase Supply
Connection Method
SINAMICS S120 Components
Motors
Line-Side Power Components
Power Supplies
DC Link Components
with braking resistors
Asynchronous motors
Synchronous motors
Additional System Components
and Sensor Modules
Braking modules
Capacitor Modules
Control Supply Modules
Single Motor Modules
Double Motor Modules
Motor Modules
Option Boards
Terminal Modules
Sensor Modules
Line contactors
Line fuses
Line filters
Line reactors
Active Interface Module
Line Modules
Smart Line Modules
Basic Line Modules
Active Line Modules
Control Units

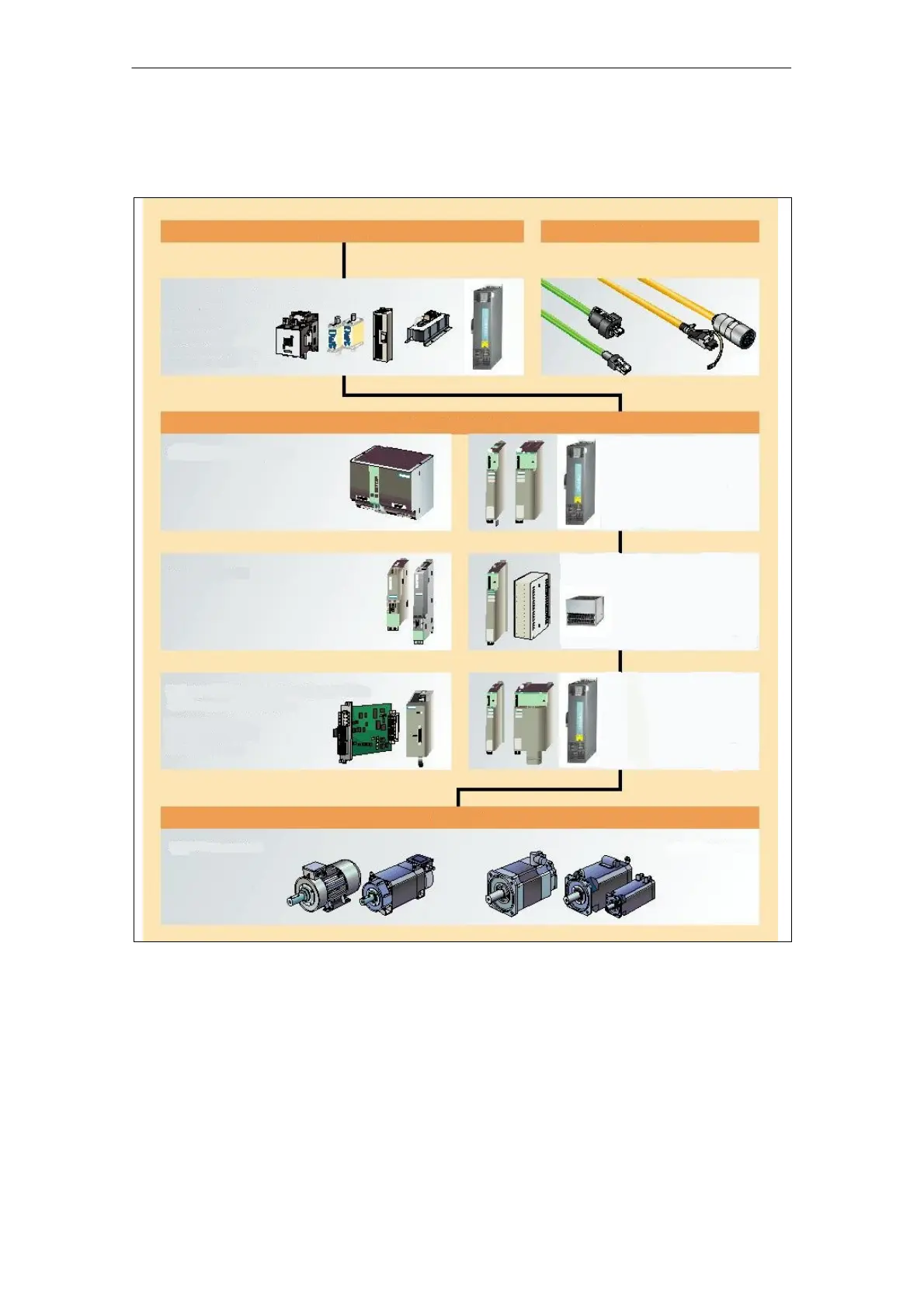

Fig. 1-5 SINAMICS S120 component overview
