Commissioning
Initial commissioning using vector (booksize) as an example
3-60
E Siemens AG, 2004. All rights reserved
SINAMICS S120 Installation and Start-Up Manual, 12/04 Edition
3.5.2 Component wiring (example)

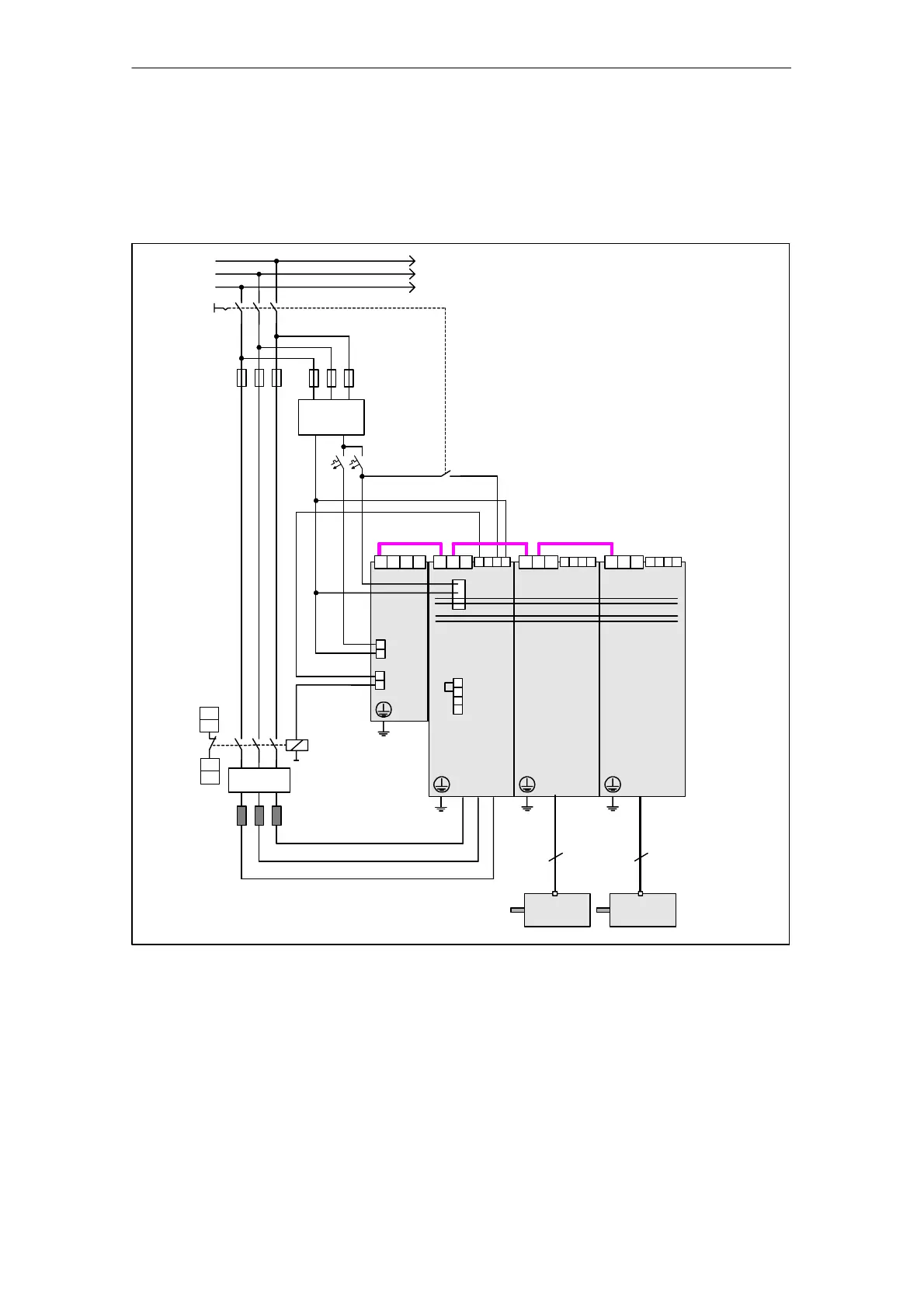

The following diagram shows a possible component configuration and wiring op-
tion. The DRIVE-CLiQ wiring is highlighted in bold.
ibn_vektor_verdrahtung.vs
d
DRIVE–CLiQ
Line filter
Line reactor
DO
X124
X100
Control
Unit
320
24 V DC
external
Line contactor
L1
L2
L3
Smart
Line Module
X200
3 4
EP
DI
CU
ext.
24 V
Single
Motor Module
X200
4
Motorized
cable
2 1
SH
Single
Motor Module
X200
4
DI
1
RDY
X22
X21
1 + 24 V
2 Disable
Fig. 3-5 Component wiring (example)
For more information on wiring, see the Equipment Manual.
