Preparations for Commissioning
Rules for wiring with DRIVE-CLiQ
2-37
E Siemens AG, 2004. All rights reserved
SINAMICS S120 Installation and Start-Up Manual, 12/04 Edition
2.3.3 Sample wiring for vector drives
Drive line-up comprising three Motor Modules (chassis) with identical pulse frequencies
or vector (booksize)
Motor Modules (chassis) with identical pulse frequencies or vector (booksize) can
be connected to a DRIVE-CLiQ interface on the Control Unit.
In the following diagram, three Motor Modules are connected to interface X101.
Note
This topology does not match the topology created offline by STARTER and must
be changed (see Subsection 2.3.4.)
topologie_chassis_1.vsd
Active
Line
Module
X400
X401
X402
DRIVE–CLiQ
Encoder
Output
CU
320
X100
X101
X102
X103
Infeed 1
Active
Interface
Module
VSM
X500
M
Single
Module
X400
X401
X402
SMC
30
X500
X520
Drive 1
M
Single
Module
X400
X401
X402
SMC
30
X500
X520
Drive 2
M
Single
Module
X400
X401
X402
SMC
30
X500
X520
Drive 3
Motor
Motor Motor

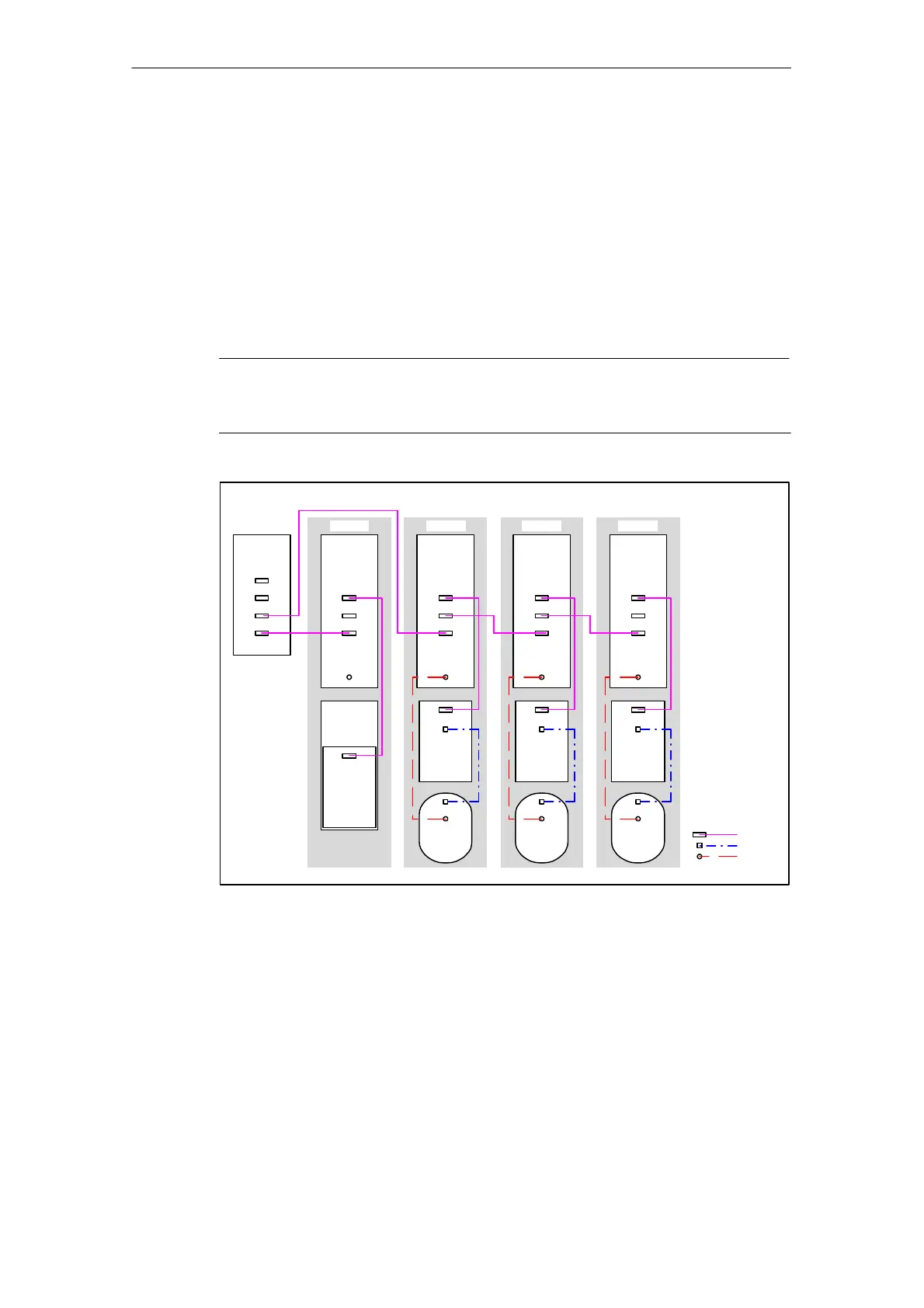

Fig. 2-4 Drive line-up (chassis) with identical pulse frequencies
