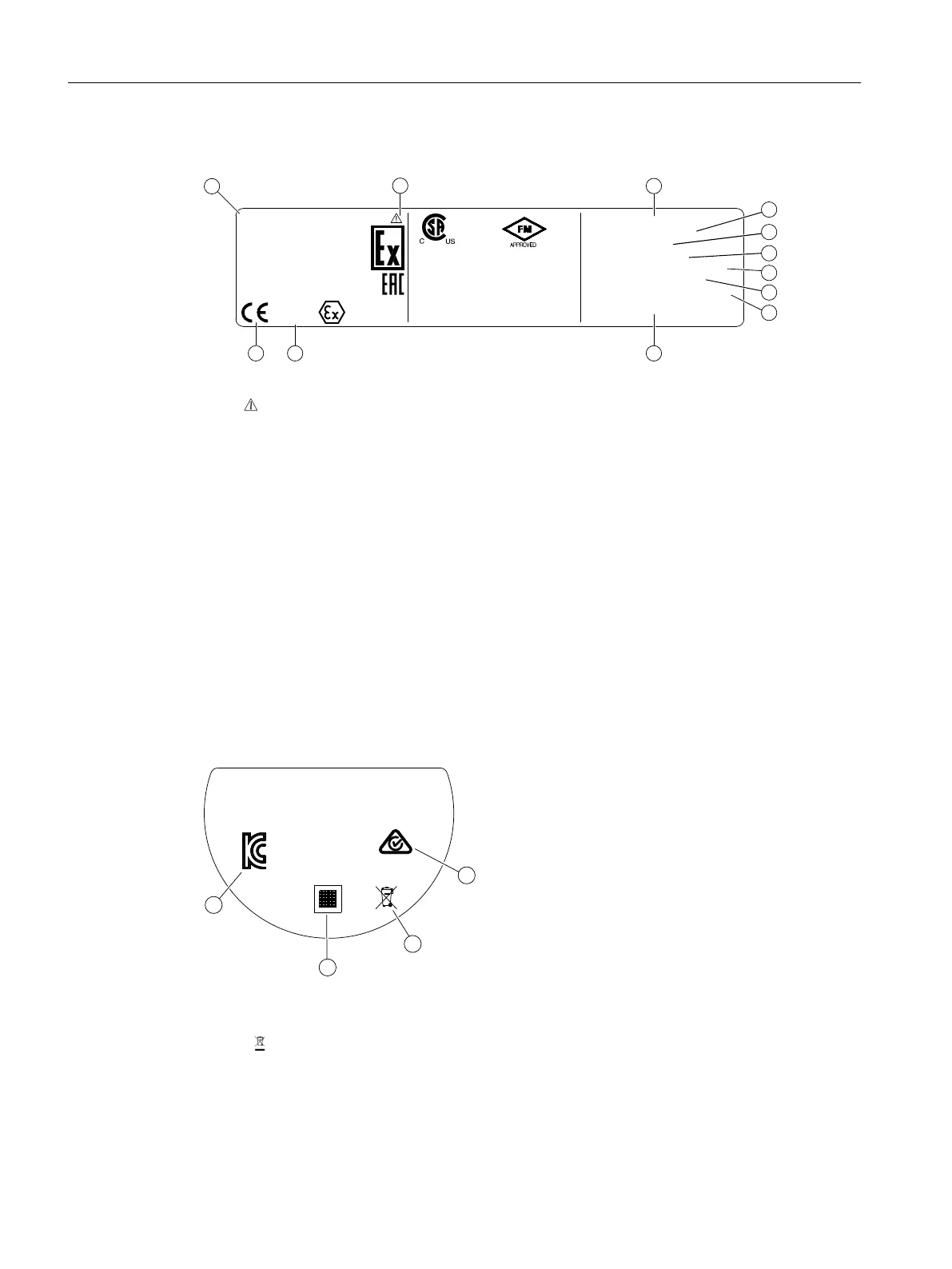

FCS400 sensor: Nameplate with specific information
12 11
4
5
6
10
7
8
9
1
2
3
<HDURIPDQXIDFWXUH
&DOIDFWRU
TPPLQNJK
TPQRPNJK
,69L 9OL P$3L :
(QFORVXUH,31(0$;
7DPEr&r)WRr&r)
$FFXUDF\)ORZNJPu
)RU86
*36()*7r&
&ODVV,,'LYLVLRQ
$([GELD,,&77*E
(;GEHELD>LD*D@,,&7r&*D*E
(;WE>LD'D@,,,&7r&'E
6LUD$7(;;
,(&([6,5;
7D r&WRr&
7&ODVV XSSHU7DPE
5HIHUWRXVHULQVWUXFWLRQV
,,*
([LD
① EX approvals Ex approval specifications
② Consult the operating instructions
③ Year of manufacture Manufacturing year
More detailed manufacturing date information is given in the serial num‐
ber found on the identification nameplate
④ Cal. factor Calibration factor
⑤ qm (min) Minimum flow with water at 20 °C (68 °F)
⑥ qm (nom) Nominal flow with water at 20 °C (68 °F)
⑦ IS Power supply (not given on the compact variant because it is internal)
⑧ Enclosure Degree of protection
⑨ Tamb. Ambient temperature range
⑩ Accuracy Accuracy for mass flow and density
⑪ 0518 Notified Body ID (ATEX, example)
⑫ CE CE mark
FCT030 transmitter: Nameplate with approval information
:$51,1*'212723(1:+(1$1
(;3/26,9($70263+(5(,635(6(17
$9(57,66(0(171(3$62895,5'$1681
(19,5211(0(17(;3/26,)
)25&(2,0/FHUW1R
0)5'00<<<<
.&&5(06
① IC Conformity with country-specific directives
② QR code Product-specific QR code
③ WEEE symbol, see Disposal (Page 56)
④ C✓ C-tick logo
Introduction
1.3 Nameplate layout
SITRANS FC430
10 Compact Operating Instructions, 09/2019, A5E39940293-AB
