Operating
3.2 Test function
SITRANS LVS100/200
Operating Instructions, 01/2019, A5E44839609-AA
11
8/16 or 4 to 20 mA model

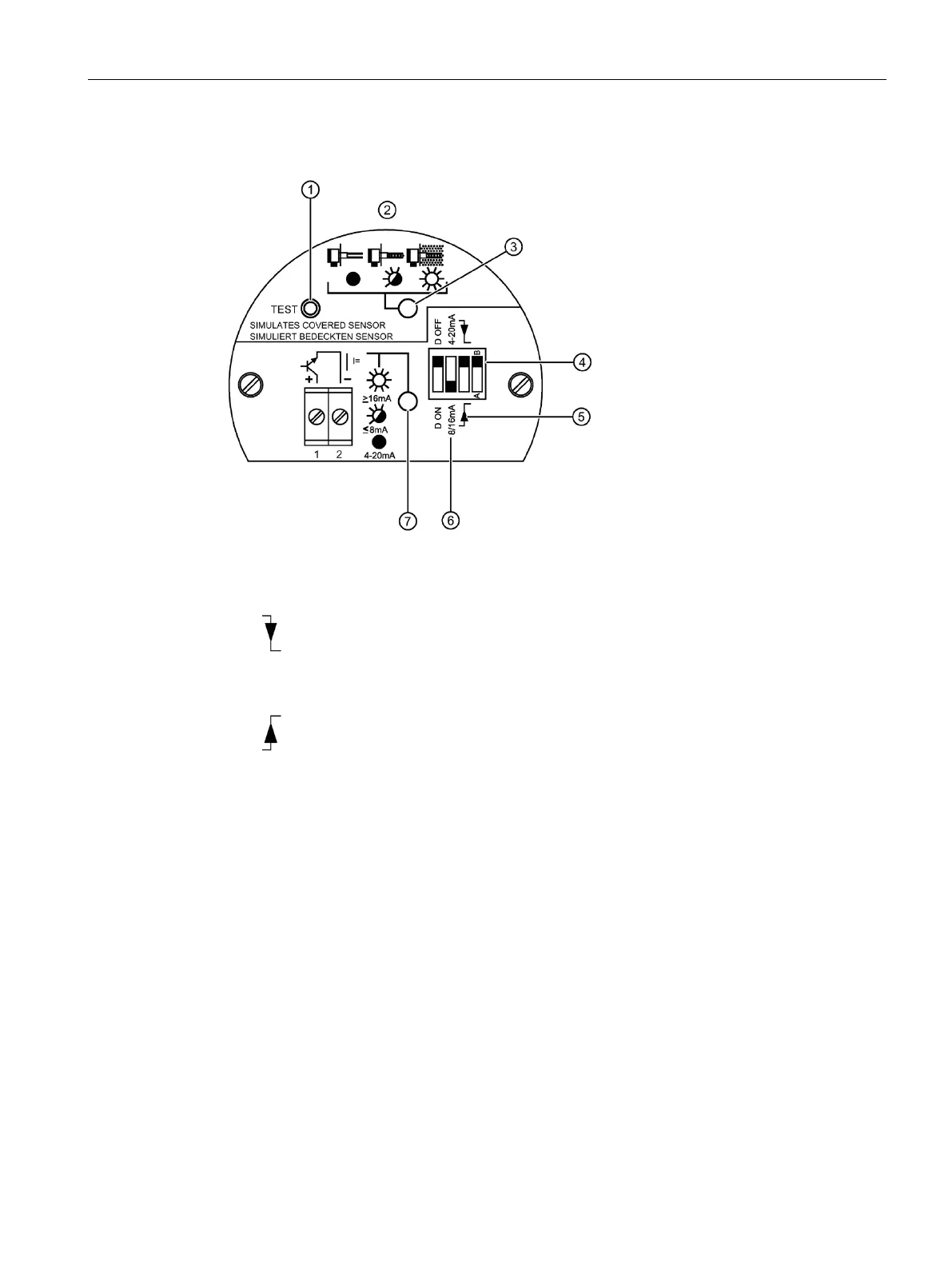

①
Test button
②
Sensor switches at high level
Fail-safe function will default to full signal
Sensor switches at low level
Fail-safe function will default to empty signal
③
Diagnostic LED
④
Sensitivity adjustment:
B = factory setting
A = decreased sensitivity
⑤
Filling or emptying
⑥
Output setting
⑦
Signal output LED
