4.3 Temperature isolator option (LVS100/200)
SITRANS LVS100/200
18 Operating Instructions, 01/2019, A5E44839609-AA
4.3
Temperature isolator option (LVS100/200)

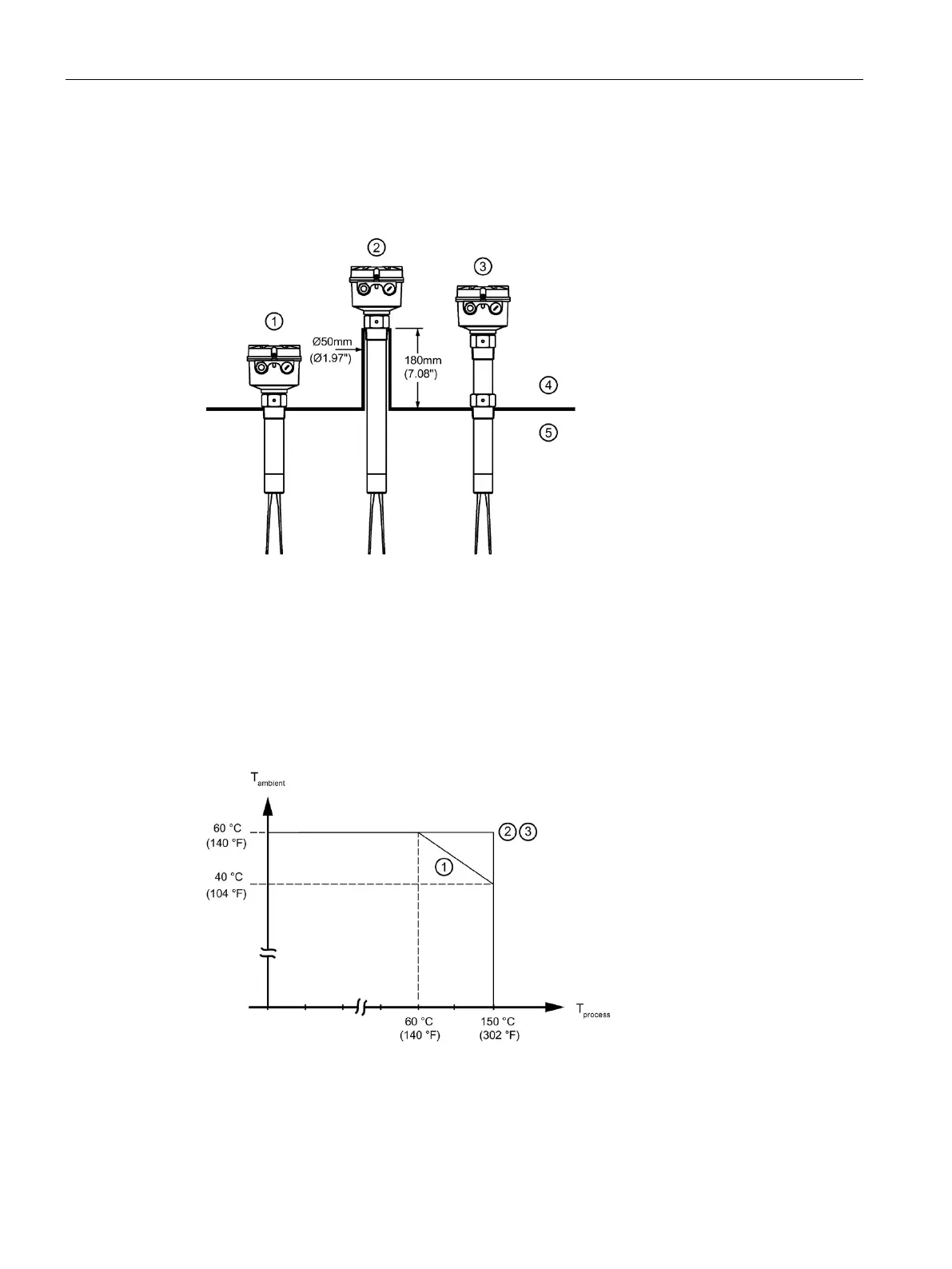

When installed with the temperature isolator option, SITRANS LVS100/200 can operate in
higher ambient temperatures.
①
Installed without temperature isolator, process connection at surface
②
Installed without temperature isolator, process connection above surface
③
Installed with temperature isolator option
④
T
amb.
⑤
T
process
Installing SITRANS LVS100/200 with the temperature extension allows the device to be
operated at higher ambient temperatures,
③, than would be possible otherwise, ①.
Process temperature (LVS100)
①
Installed without temperature isolator, process connection at surface
②
Installed without temperature isolator, process connection above surface
③
Installed with temperature isolator option
