5.6 SITRANS LVS200 Pipe extension version
SITRANS LVS100/200
36 Operating Instructions, 01/2019, A5E44839609-AA
5.6.4

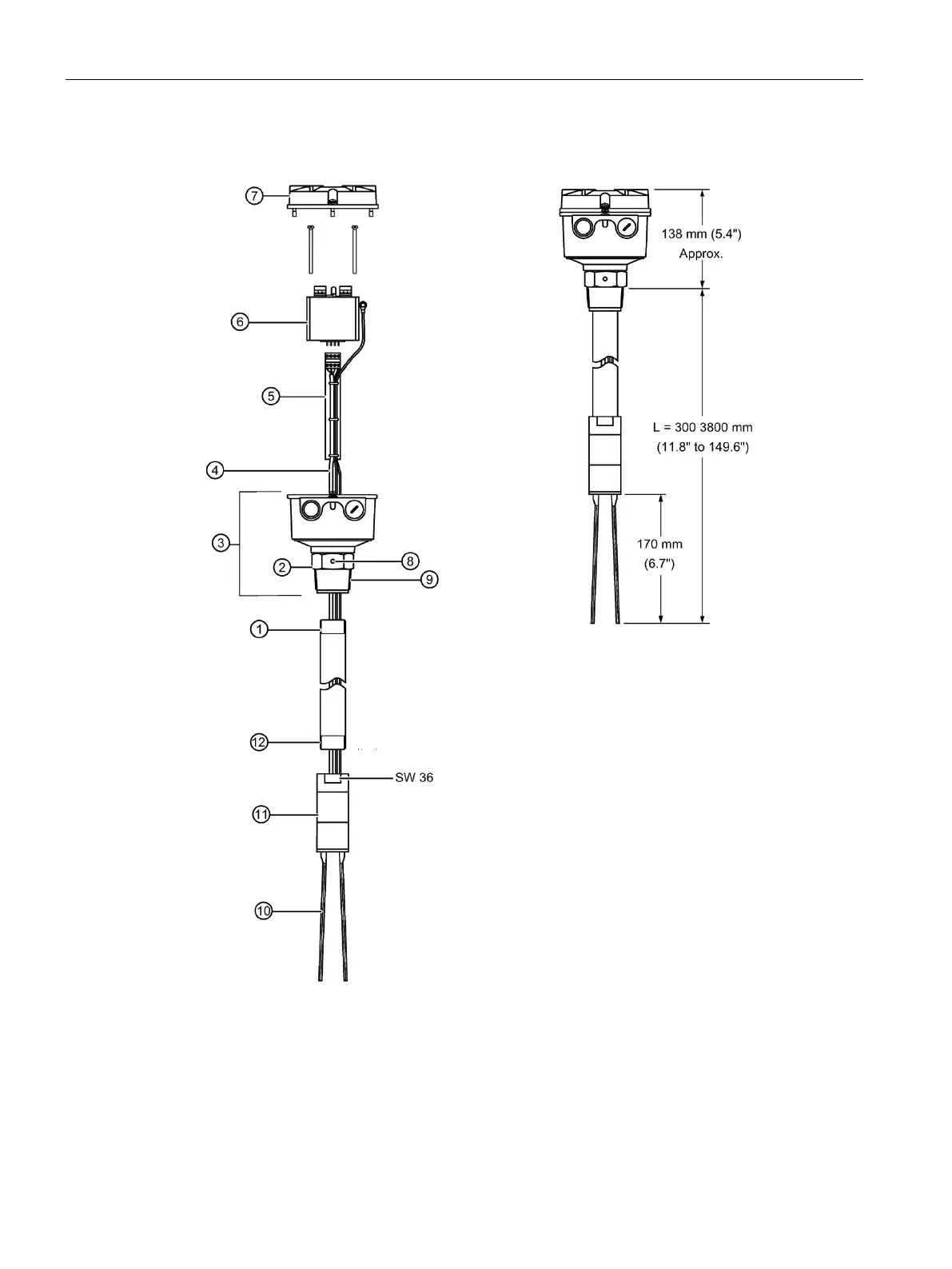

Assembly overview drawing
①
Thread G1” or 1" NPT
(use appropriate thread sealant)
⑦
Lid
②
Process connection
⑧
Tine orientation marking
③
Enclosure assembly
⑨
Process thread 1 ½” NPT (taper) or R 1 ½” (BSPT)
④
Sensor cable
⑩
Fork
⑤
Terminal connection board
⑪
Fork assembly
⑥
Electronics module
⑫
Thread G1” or 1" NPT (use appropriate thread sealant)
