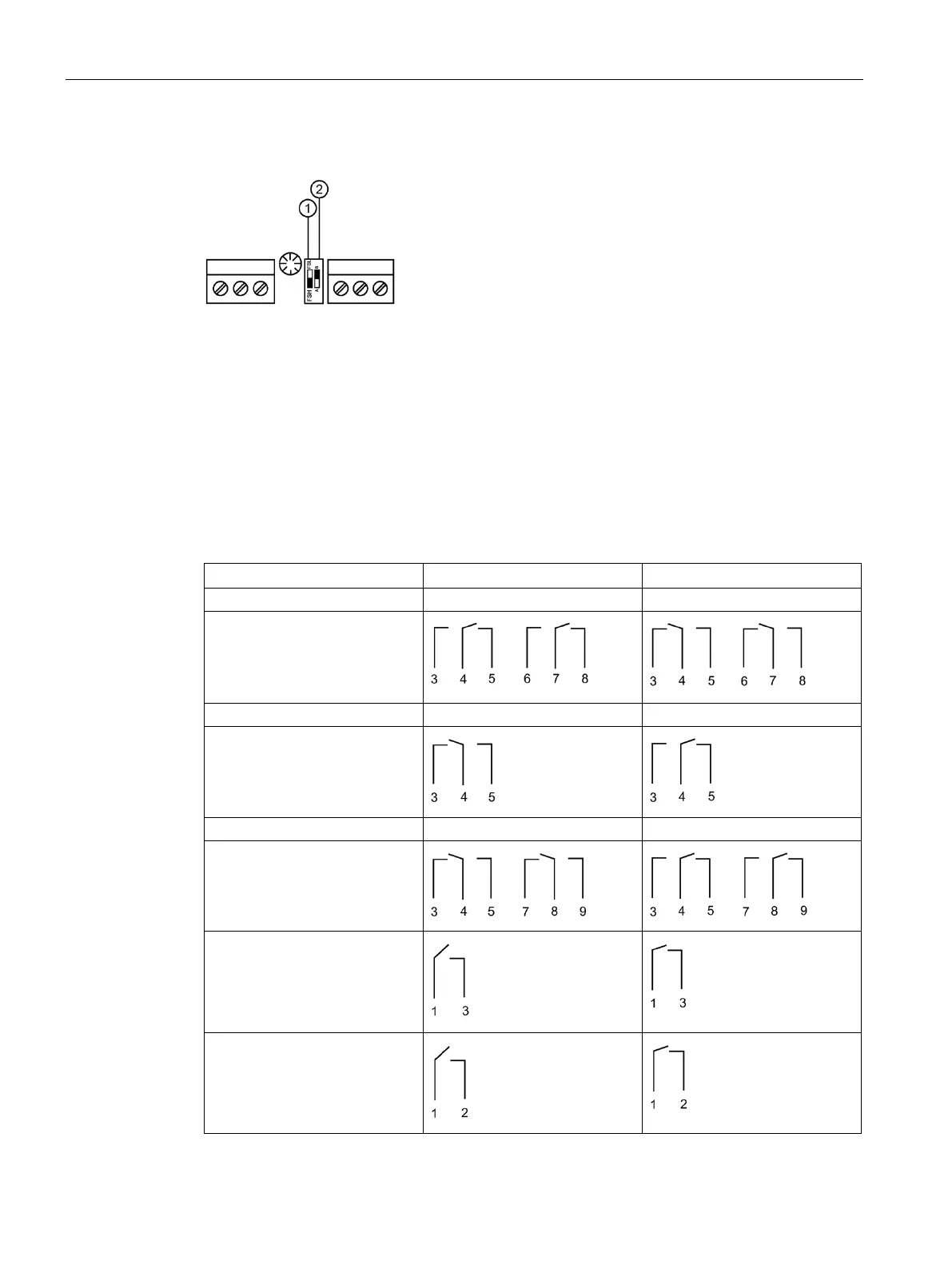

5.5 Switching logic
SITRANS LVS100/200
28 Operating Instructions, 01/2019, A5E44839609-AA
LVS200
①
FSH/FSL adjustment or High/Low Alarm setting (NAMUR)
②
sensitivity adjustment:
B = factory setting
A = decreased sensitivity
5.5
Switching logic
Probe uncovered
Model
Signal output failsafe - low
Signal output failsafe - high
LVS100
DPDT relay
LVS200
SPDT relay
LVS200
DPDT relay
3-wire PNP
2-wire
