Siemens SITRANS L Series - 8 Dimension Drawings; Sitrans Lvs100

SITRANS LVS100/200
Operating Instructions, 01/2019, A5E44839609-AA
42
Dimension drawings
8
8.1

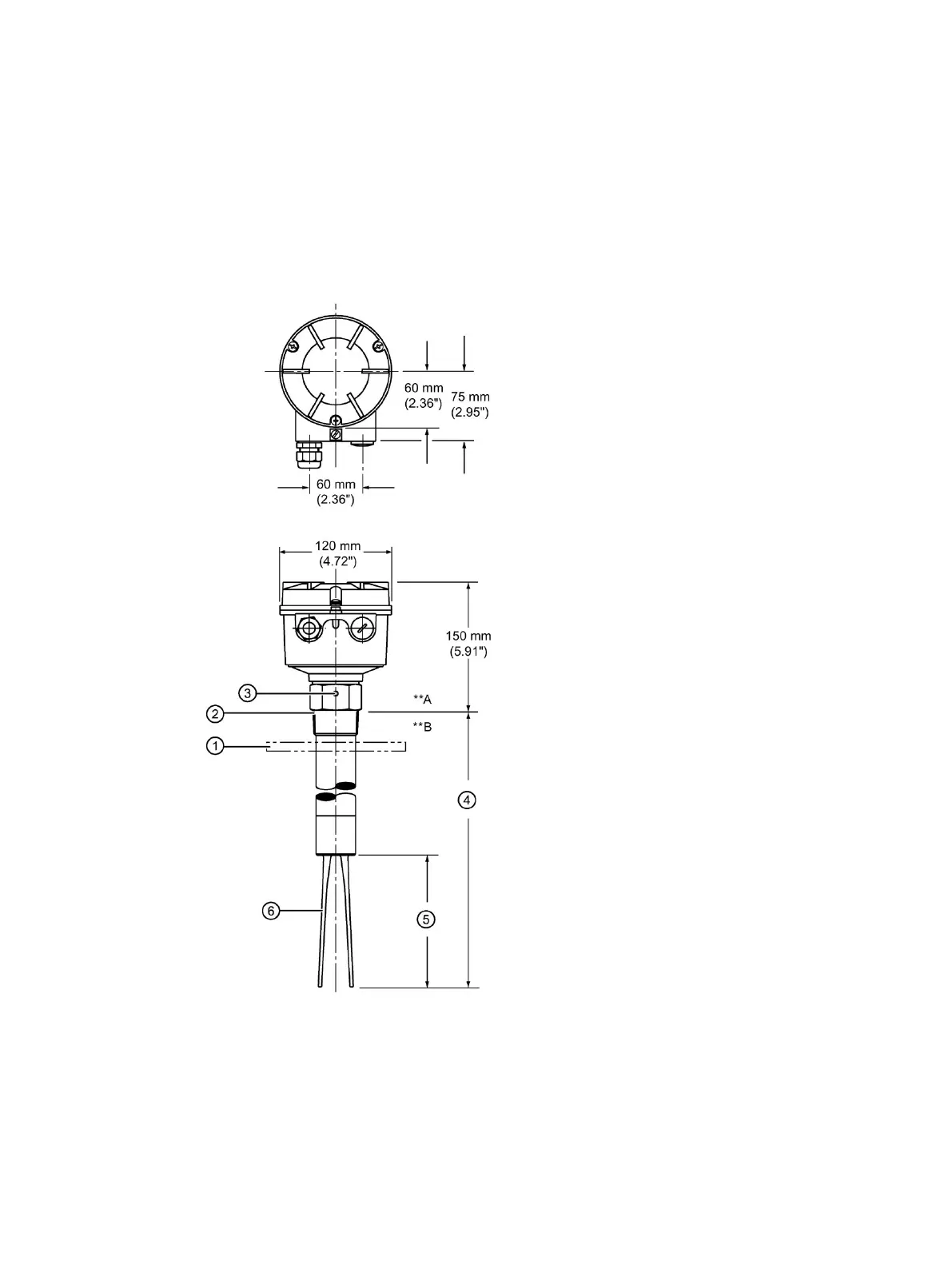

SITRANS LVS100
①
Customer supplied process flange
④
170 to 4000 mm (6.69 to 157"): customer-specified
rigid extension
②
Threaded bushing [max. temp.
+80°C(+176°F)]
⑤
125 mm (4.92"): standard fork
③
Tine orientation marking
⑥
Tine
