Connecting
5.2 Precautions
SITRANS LVS100/200
Operating Instructions, 01/2019, A5E44839609-AA
23

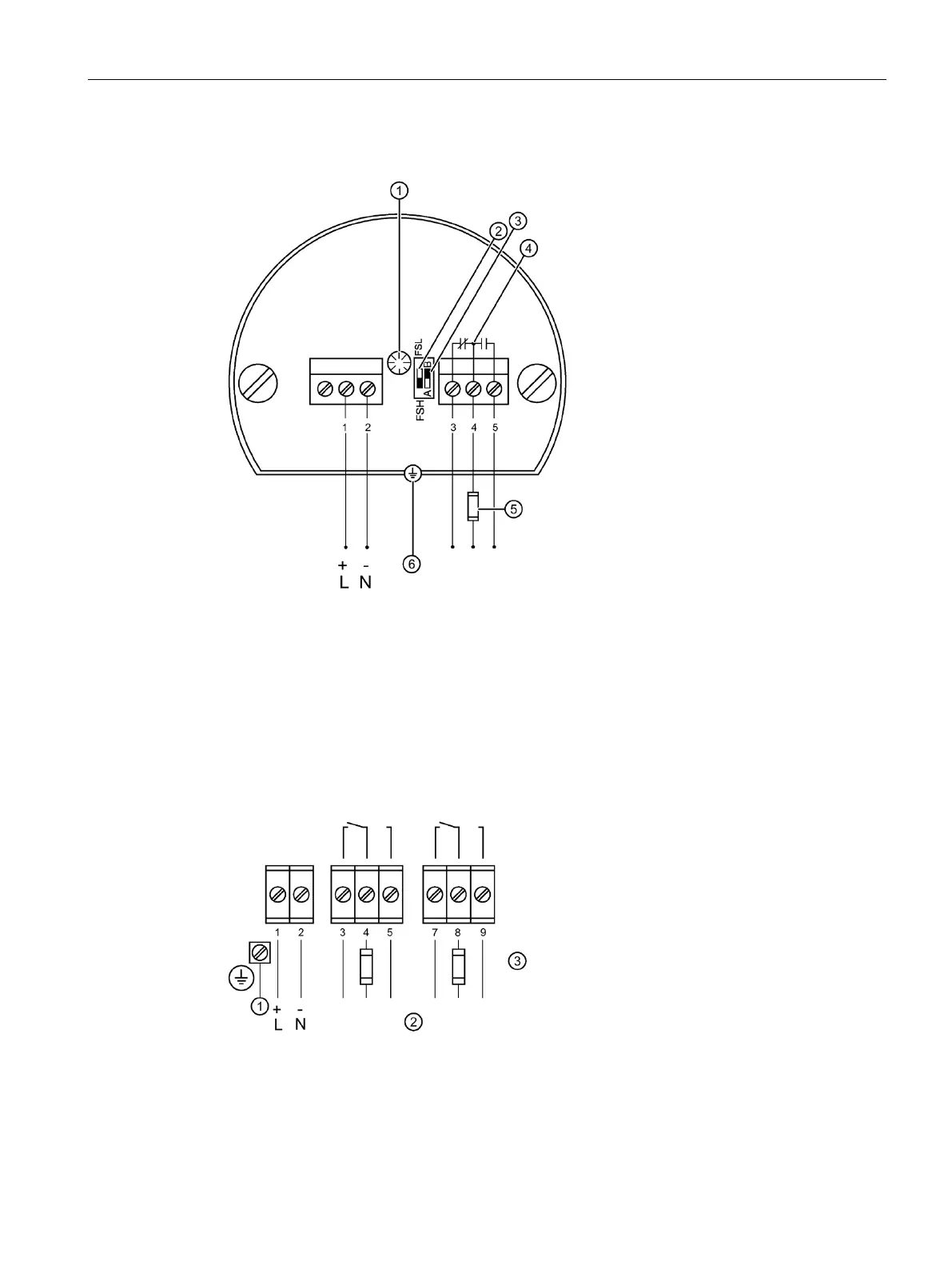

Universal voltage (SPDT relay) (LVS200)
①
LED
④
alarm output relay
②
FSH/FSL adjustment
⑤
fuses: max. 10 A, fast or slow, HBC, 250 V
③
sensitivity adjustment
B = factory setting,
A = decreased sensitivity
⑥
protective earth terminal
Universal voltage (DPDT relay) (LVS200)
①
PE
②
alarm output relays
③
fuses: max. 10 A, fast or slow, HBC, 250 V
