WA_DEV_GL6100_PTS_001 Rev 002 May 24, 2010 26
GL61x0 Product Technical
Specification and User Guide
GL61x0 Cables and Accessories
Table 10: USB Pin Assignment
Pin Number
Signal
Description
1
Vin
Vbus 5V output from PC
2
D-
Universal Serial Bus Data Negative
3
D+
Universal Serial Bus Data Positive
4
GND
Ground Connection
3.6. FME Antenna
Refer to Table 2: GL61x0 Shipment Configuration to see which shipment configuration of the GL61x0
comes with this antenna.

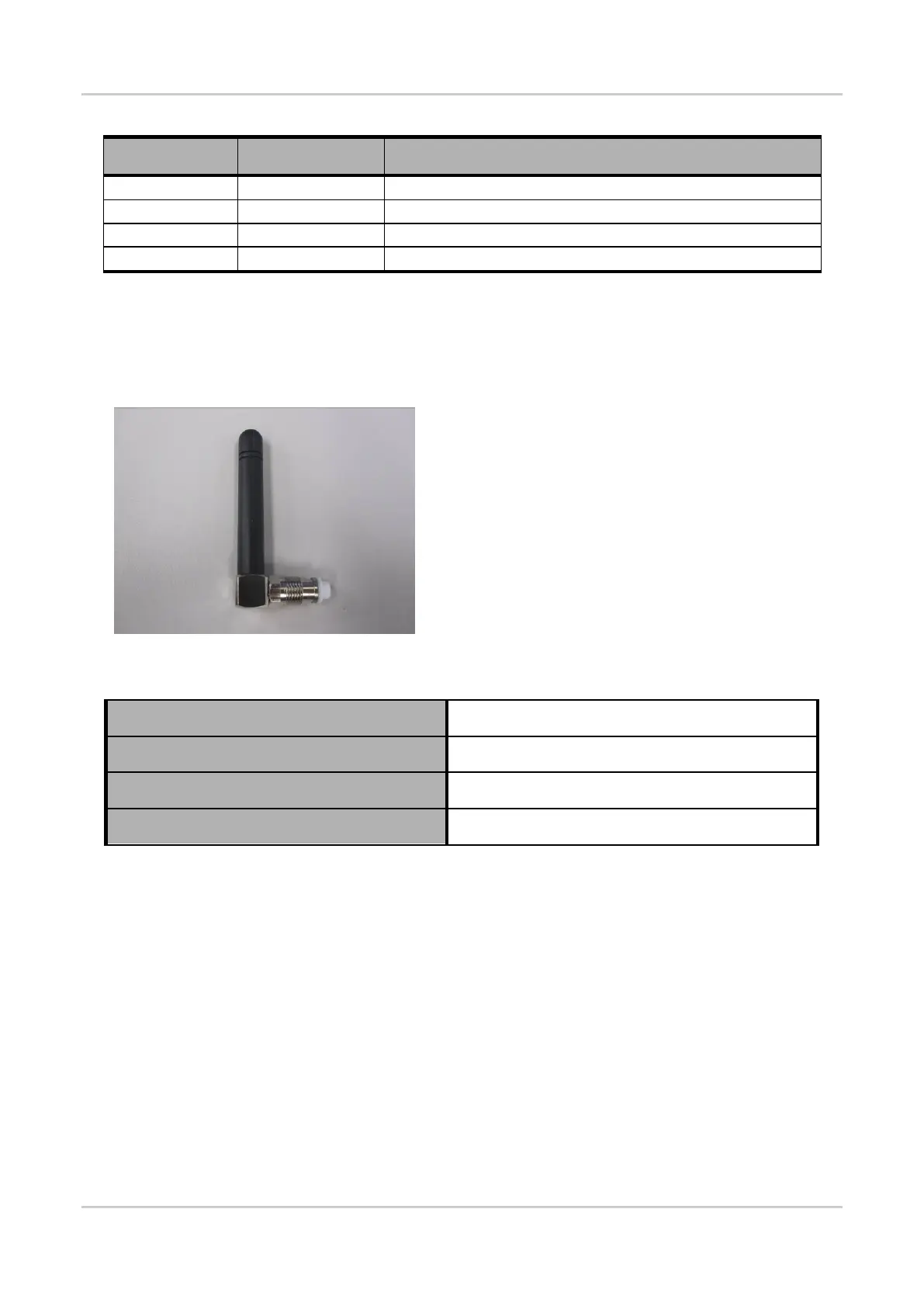

Figure 15. FME Antenna
Table 11: FME Antenna Characteristics
Antenna Frequency Range
824MHz ~ 960MHz / 1710MHz ~ 1910MHz
Impedance
50Ω Nominal
VSWR
3.5:1 Max
Gain (antenna + cable)
1.0dBi
