Sierra Wireless GL6110 - Mechanical Resistance Stress Tests; Table 59: Mechanical Resistance Stress Tests

WA_DEV_GL6100_PTS_001 Rev 002 May 24, 2010 73
GL61x0 Product Technical
Specification and User Guide
Reliability Standards: Compliance and
Recommendations
Designation
Condition
TSKT
Special conditions:
 Upper temperature: +85°C
 Lower temperature: -40°C
 Rate of temperature change: 30s
 Number of cycles: 200
 Duration of exposure: 30 minutes
 Recovery time: 3 hours
Operating conditions: Un-powered
Duration: 72 hours
13.4.5. Mechanical Resistance Stress Tests
The following tests the GL61x0’s resistance to vibrations and mechanical shocks.

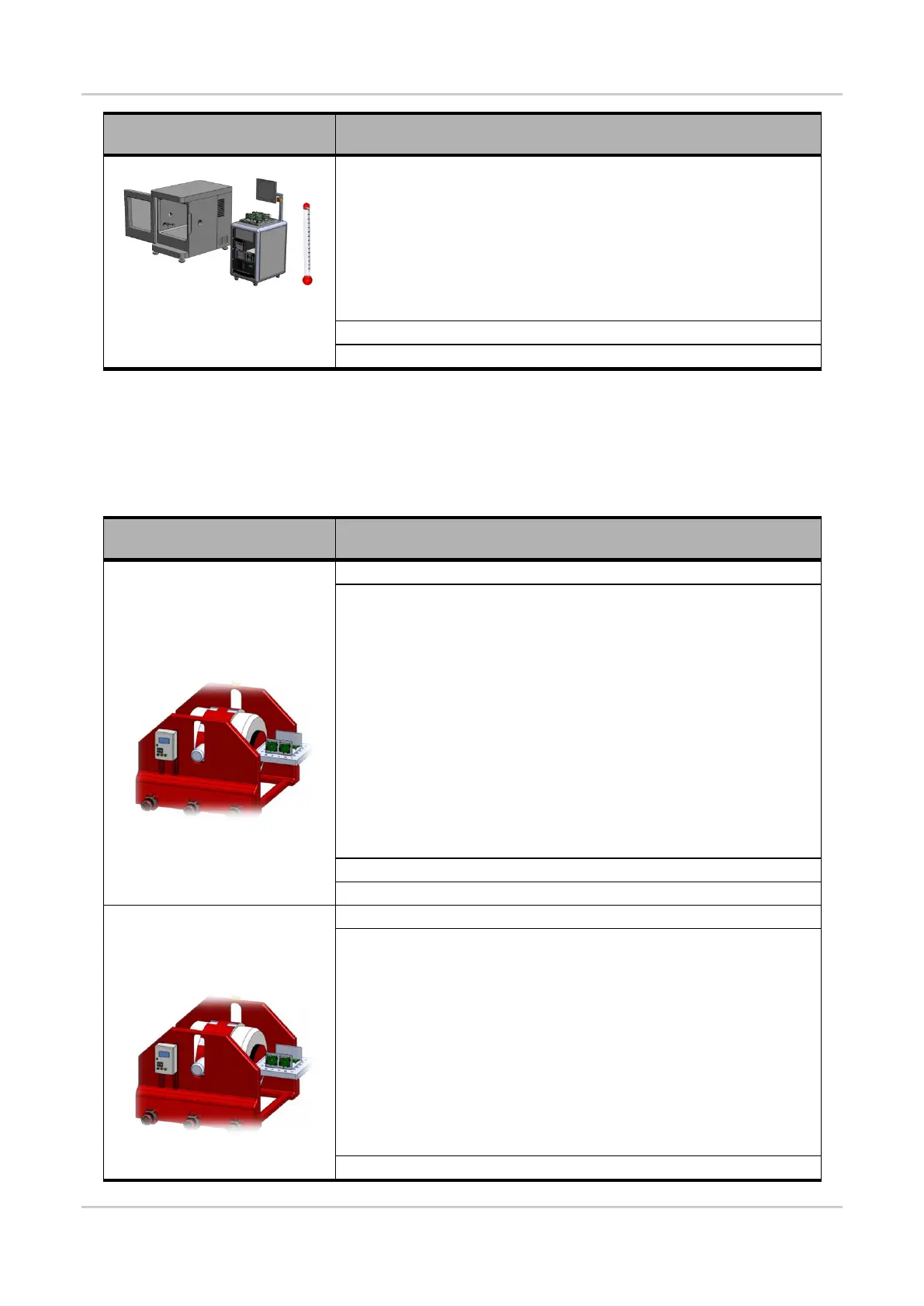

Table 59: Mechanical Resistance Stress Tests
Designation
Condition
Sinusoidal Vibration Test
SVT
Standard: IEC 60068-2-6, Test Fc
Special conditions:
 Frequency range: 10Hz to 1000Hz
 Displacement: ±5mm (peak)
 Frequency range: 16Hz to 62Hz
 Acceleration: 5G
 Frequency range: 62Hz to 200Hz
 Acceleration: 3G
 Frequency range: 200Hz to 1000Hz
 Acceleration: 1G
 Sweep rate: 1 oct/min.
 Test duration: 20 cycles
 Sweep directions: X, Y and Z
Operating conditions: Un-powered
Duration: 72 hours
Random Vibration Test
RVT
Standard: IEC 60068-2-64
Special conditions:
 Density spectrum: 0.96m²/s3
 Frequency range:
 0.1 g
2
/Hz at 10Hz
 0.01 g
2
/Hz at 250Hz
 0.0005 g
2
/Hz at 1000Hz
 0.0005 g
2
/Hz at 2000Hz
 Slope: -3dB/octave
 Acceleration: 0.9gRMS
 Number of axis: 3
Operating conditions: Un-powered
