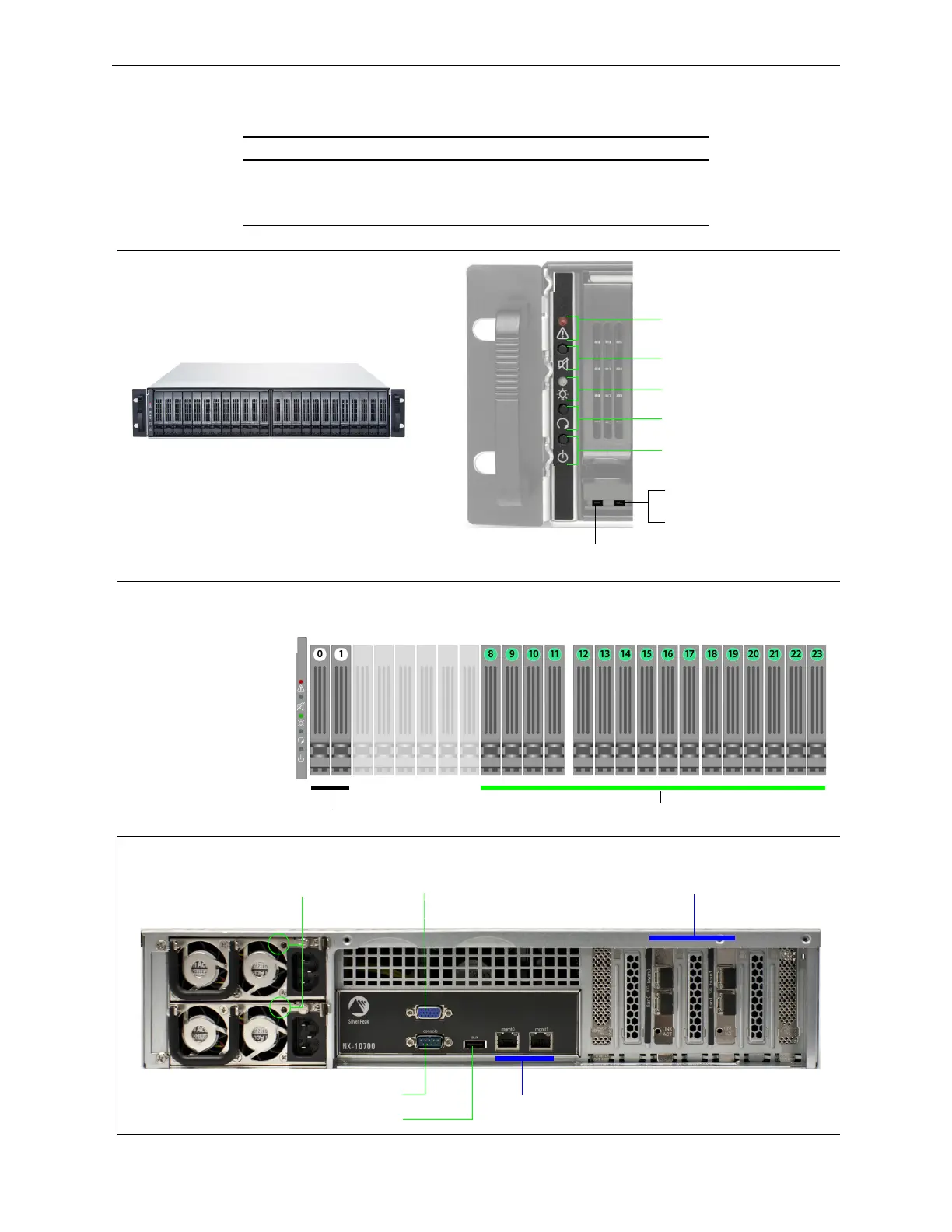

Silver Peak Hardware Reference Guide NX-10700 [PN 200519]
104 PN 200972-001 Rev B
NX-10700 [PN 200519]
NX-10700 Drives Power Supplies
Quantity 18 2
User authorized to replace? yes yes
Hot swappable? yes yes
Front View
Power supply warning LED
[red = 1 PS down or missing]
Alarm mute
Power LED [blue = on]
System reset
Power switch
blue = disk on
NO LIGHT = OFF
DISK LEDs:
green = disk activity
red = error [no access to drive]
Solid-state disksSATA hard disk drives
Note that the NX-10700 appliance contains a mix of SATA
hard disk drives and SSDs (solid-state drives).
Disk Layout
auxiliary port
console [serial port]
VGA port
Power Supply LEDs
green = power on
management
interfaces
10 Gbps fiber
network interfaces
Rear View
SSD NVMe
