NX-1700 AC [PN 200404 and PN 200576]
There are a couple of different physical chassis for AC current. The functional distinction is only in
whether the physical interfaces are on the front panel or the rear panel.
Option #1 – NX-1700 AC with Interfaces on Rear Panel [PN 200404]
NX-1700 HDD Power Supplies
Quantity 1 1
User authorized to replace? no no
Hot swappable? -- --
Power LED
Power switch
When you toggle the Power switch, verify
that the Power LED illuminates green.

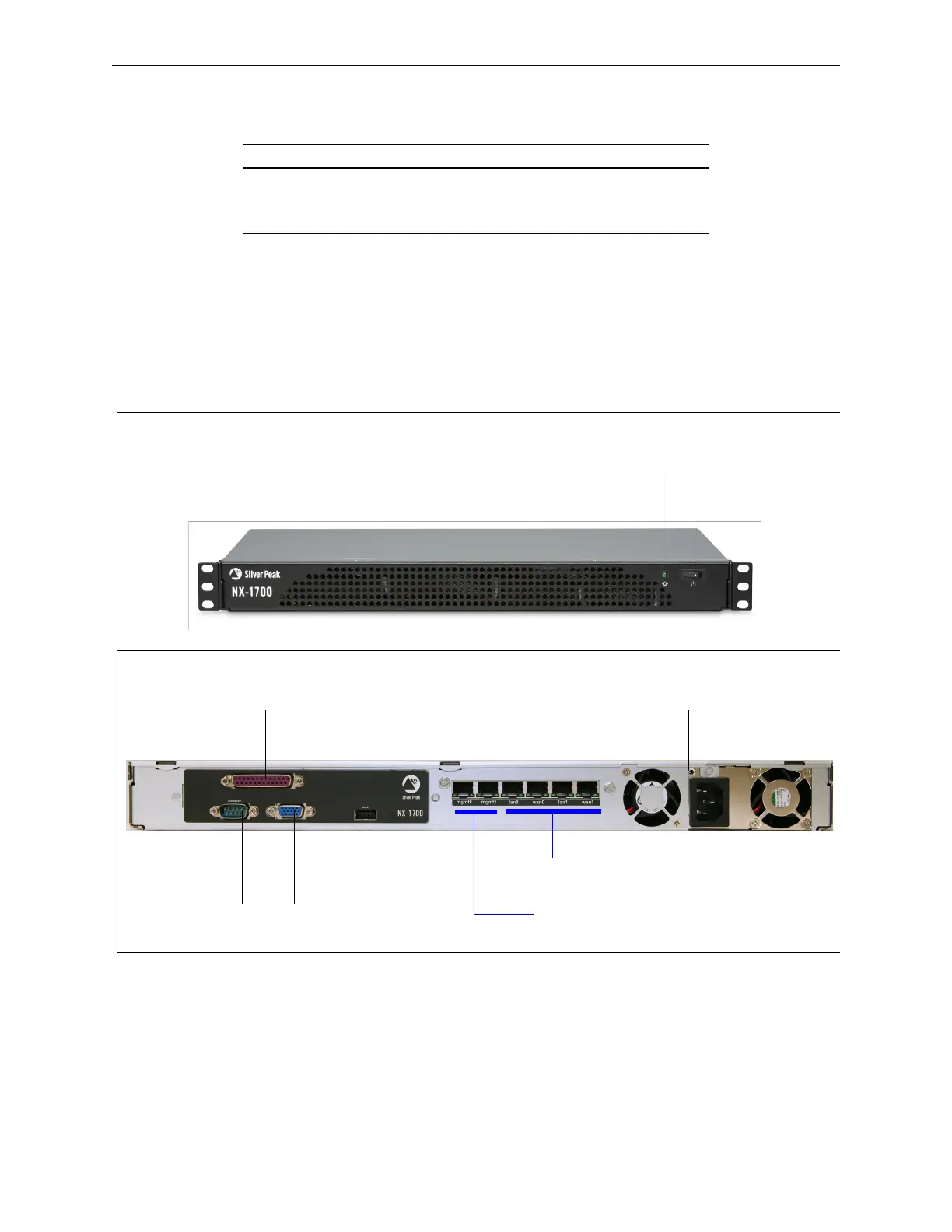

NX-1700 (AC) — Front View
parallel port
console
[serial port]
VGA port
auxiliary
port
management interfaces
[mgmt0 / mgmt1]
network interfaces
[lan0 / wan0 / lan1 / wan1]
NX-1700
power supply LED
NX-1700 (AC) — Rear View
