SilverPeak EC-XS - NX-700 [PN 200849]

NX-700 [PN 200849] Chapter 6 Appliance Views
PN 200972-001 Rev B 61
NX-700 [PN 200849]
NX-700 SSD Power Adapter
Quantity 1 1
User authorized to replace? no N/A
Hot swappable? -- --

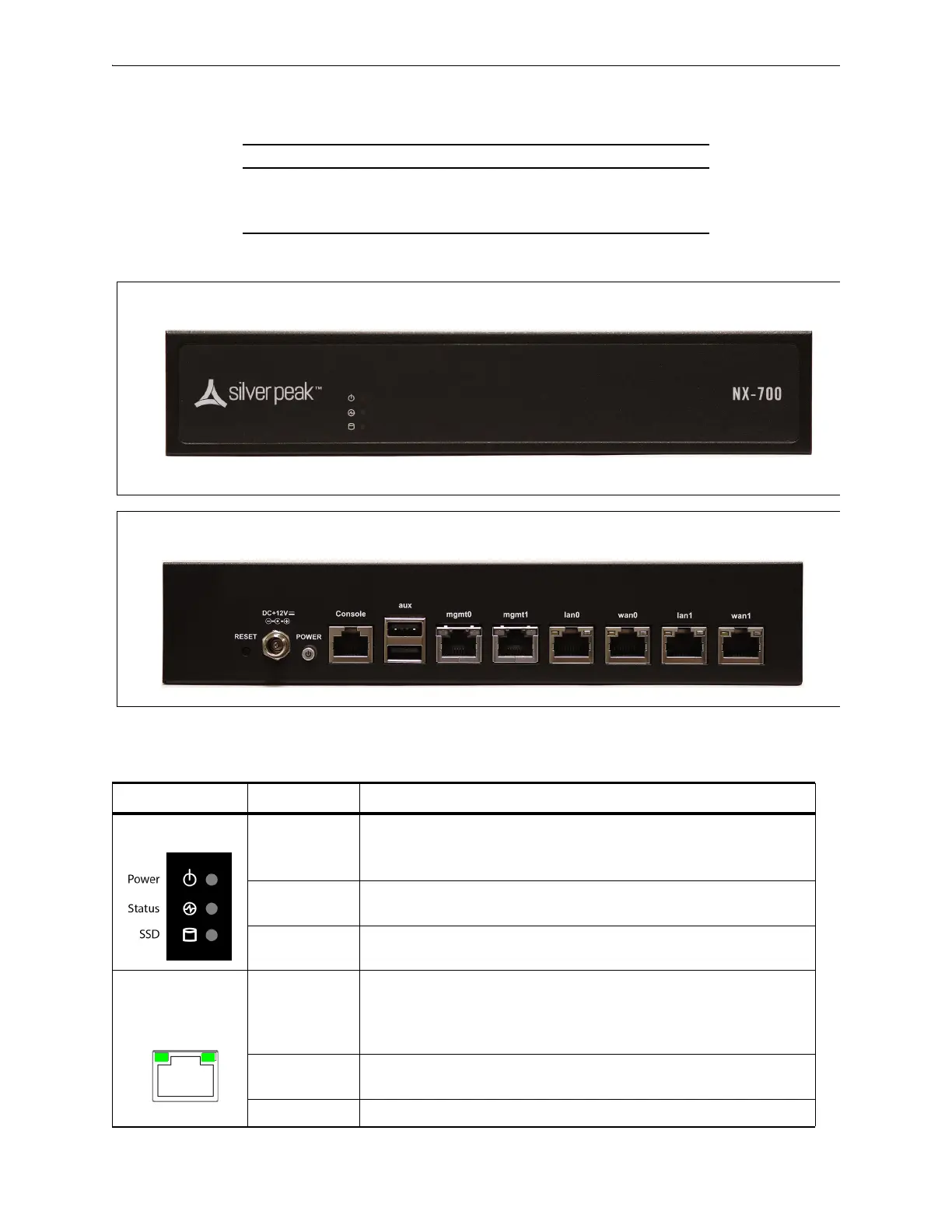

NX-700 — Front View
NX-700 — Rear View
NX-700
LED
Front LEDs
Power • Illuminated = System is powered on
• Not illuminated = System is powered off
Status • Green = Operational state is normal
• Red = System is malfunctioning
SSD • Blinking = Data access activities
Rear LEDs
Speed • Amber = Connection speed is 1000 Mbps
• Green = Connection speed is 100 Mbps
• Not illuminated = Connection speed is 10 Mbps
Link/ACT • Amber solid= Port is active
• Amber blinking = There is traffic
Both LEDs • Not illuminated = BYPASS
Link/
Activity
Speed
