SilverPeak EC-XS - Nx-2600 [Pn 200178]; Nx-2610 [Pn 200193]

Silver Peak Hardware Reference Guide NX-2600 [PN 200178] / NX-2610 [PN 200193]
66 PN 200972-001 Rev B
NX-2600 [PN 200178] / NX-2610 [PN 200193]
Power LED [blue]
Power switch
On the front panel, verify that the
Power LED illuminates blue.

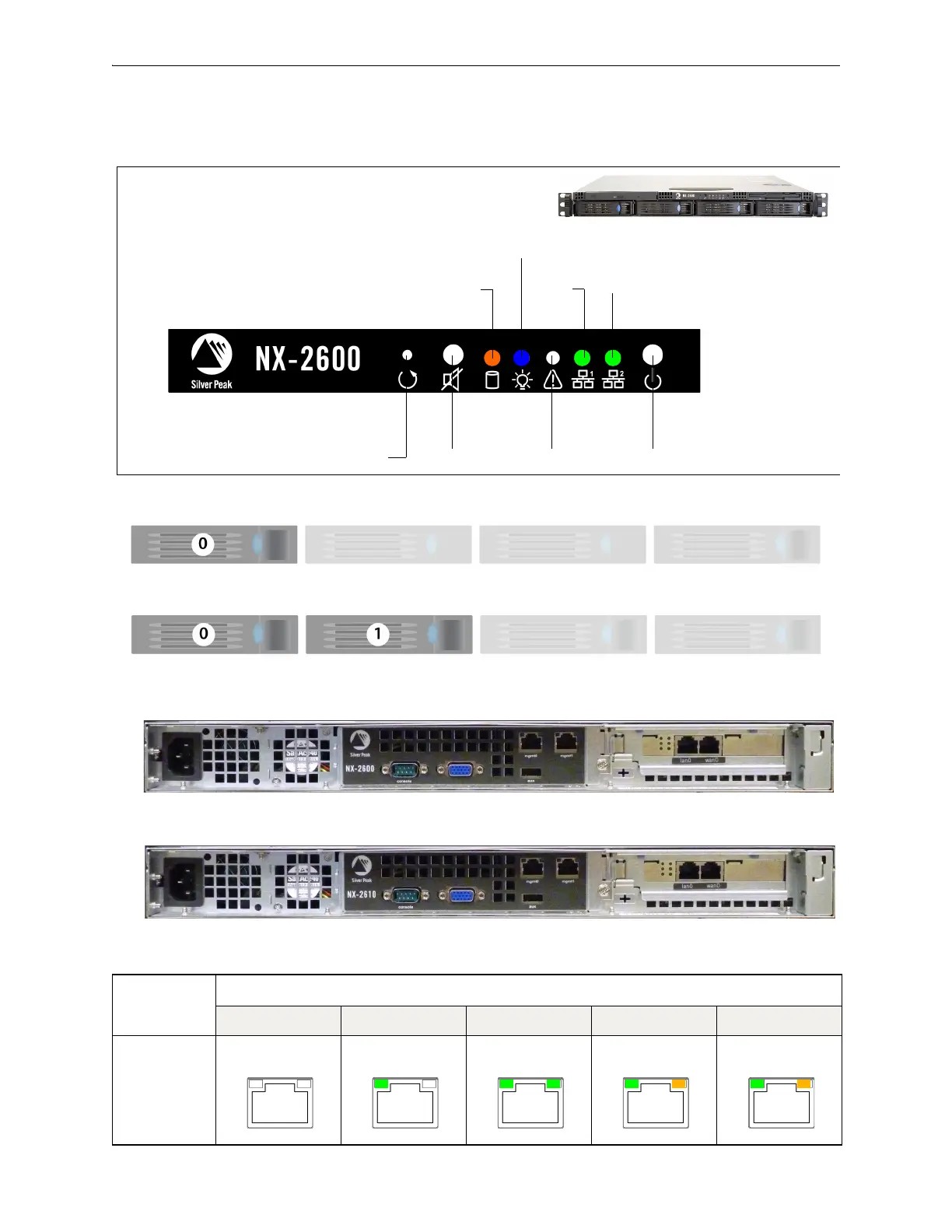

NX-2600 and NX-2610 — Front Views
Not usedAlarm MuteSystem Reset
mgmt0 mgmt1
Disk Drive Drive
activity
NX-2600 — Disk Layout
User replacement NOT authorized
NX-2610
NX-2600 — Rear View
NX-2610
NX-2600
NX-2610
mgmt0 & mgmt1
Not connected 10 Mbps 100 Mbps 1000 Mbps Auto
Speed = solid
--
Link/Activity:
blinking = traffic
Link/
Activity Speed
Link/
Activity Speed
Link/
Activity Speed
Link/
Activity Speed
Link/
Activity Speed
