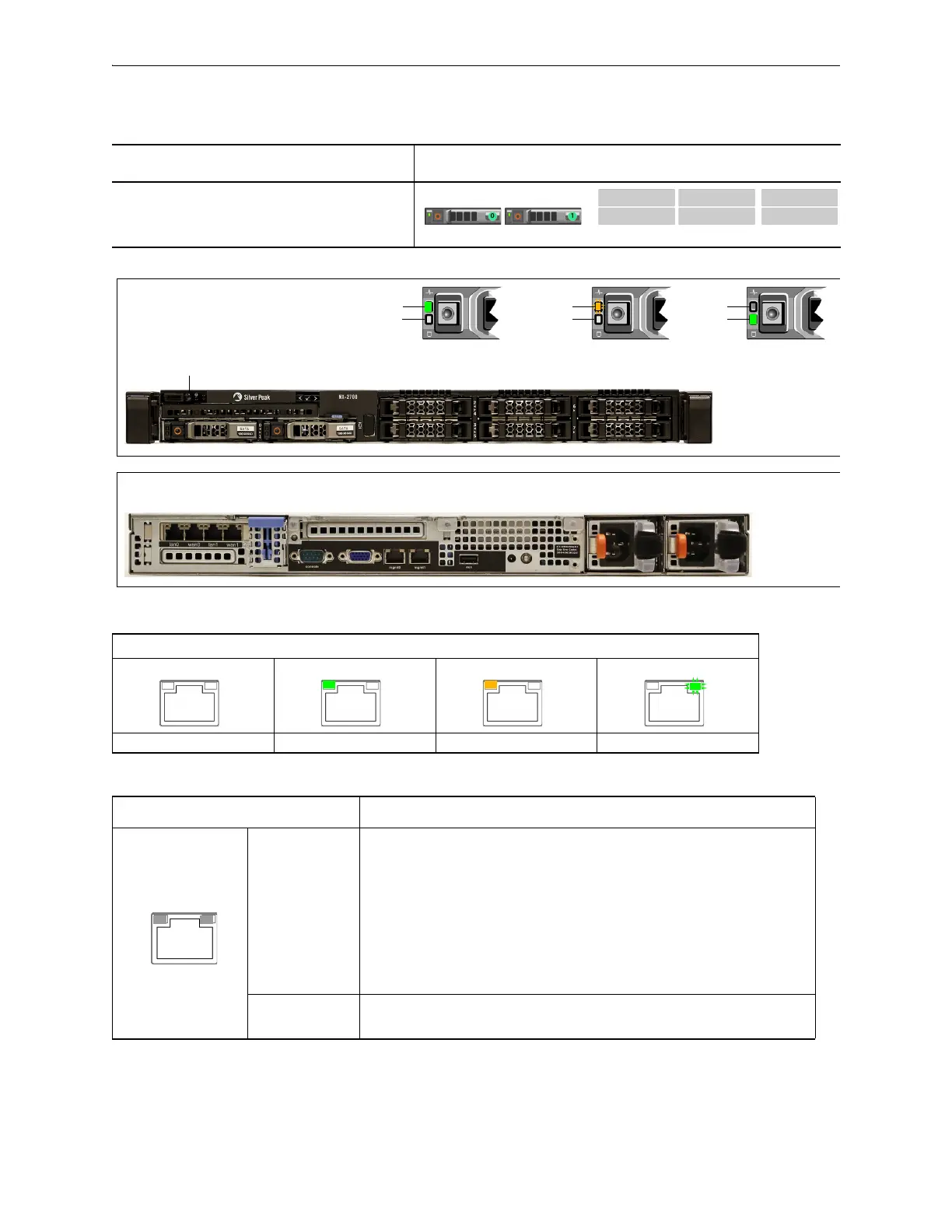

NX-2700 [PN 200697] Chapter 6 Appliance Views
PN 200972-001 Rev B 69
NX-2700 [PN 200697]
NX-2700
SSD
Power
Supplies Disk Layout
Quantity 2 2
User authorized to replace? yes yes
Hot swappable? yes yes
Front View
Power LED [blue = ON]
Status
Activity
Drive online
Status
Activity
Drive failed
Status
Activity
Traffic
(4 blinks/sec)
Rear View
mgmt0 & mgmt1
Not connected Connected at max speed Connected at lower speed Traffic
ActivityLink
ActivityLink
ActivityLink
ActivityLink
LED
lan0 / wan0 / lan1 / wan1
Rear LEDs
Speed / Bypass /
Disconnect
SPEED
• Yellow solid = Connection speed is 1000 Mbps
• Green solid = Connection speed is 100 Mbps
• Not illuminated = Connection speed is 10 Mbps
Bypass/Disconnect
• Green blinking = Bypass
• Yellow blinking = Disconnect
Link/ACT • Green solid= Port is active
• Green blinking = There is traffic
Link/
Activity
Speed /
Bypass /
Disconnect
