Silver Peak Hardware Reference Guide EC-S [PN 200877]
50 PN 200972-001 Rev B
EC-S [PN 200877]
EC-S SSD Power Supplies
Quantity 1 1
User authorized to replace? no N/A
Hot swappable? -- --

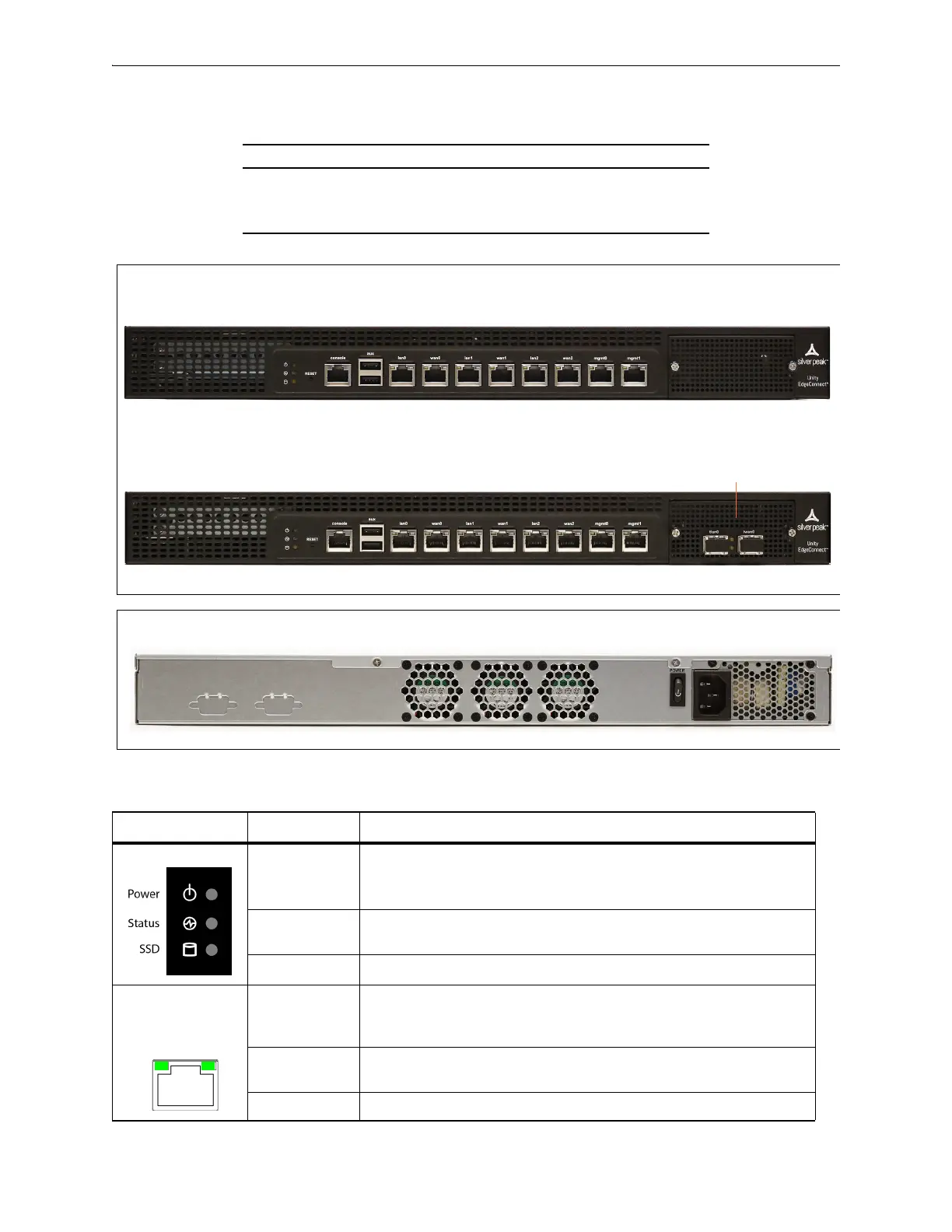

Front View
With optional 1/10 Gbps fiber card
Rear View
EC-S
LED
Power • Illuminated = System is powered on
• Not illuminated = System is powered off
Status • Green = Operational state is normal
• Red = System is malfunctioning
SSD • Blinking = Data access activities
Speed • Amber = Connection speed is 1000 Mbps
• Green = Connection speed is 100 Mbps
• Not illuminated = Connection speed is 10 Mbps
Link/ACT • Amber solid= Port is active
• Amber blinking = There is traffic
Both LEDs • Not illuminated = BYPASS
Link/
Activity
Speed
