SilverPeak EC-XS - Ec-Xl-Nm [Pn 200888]

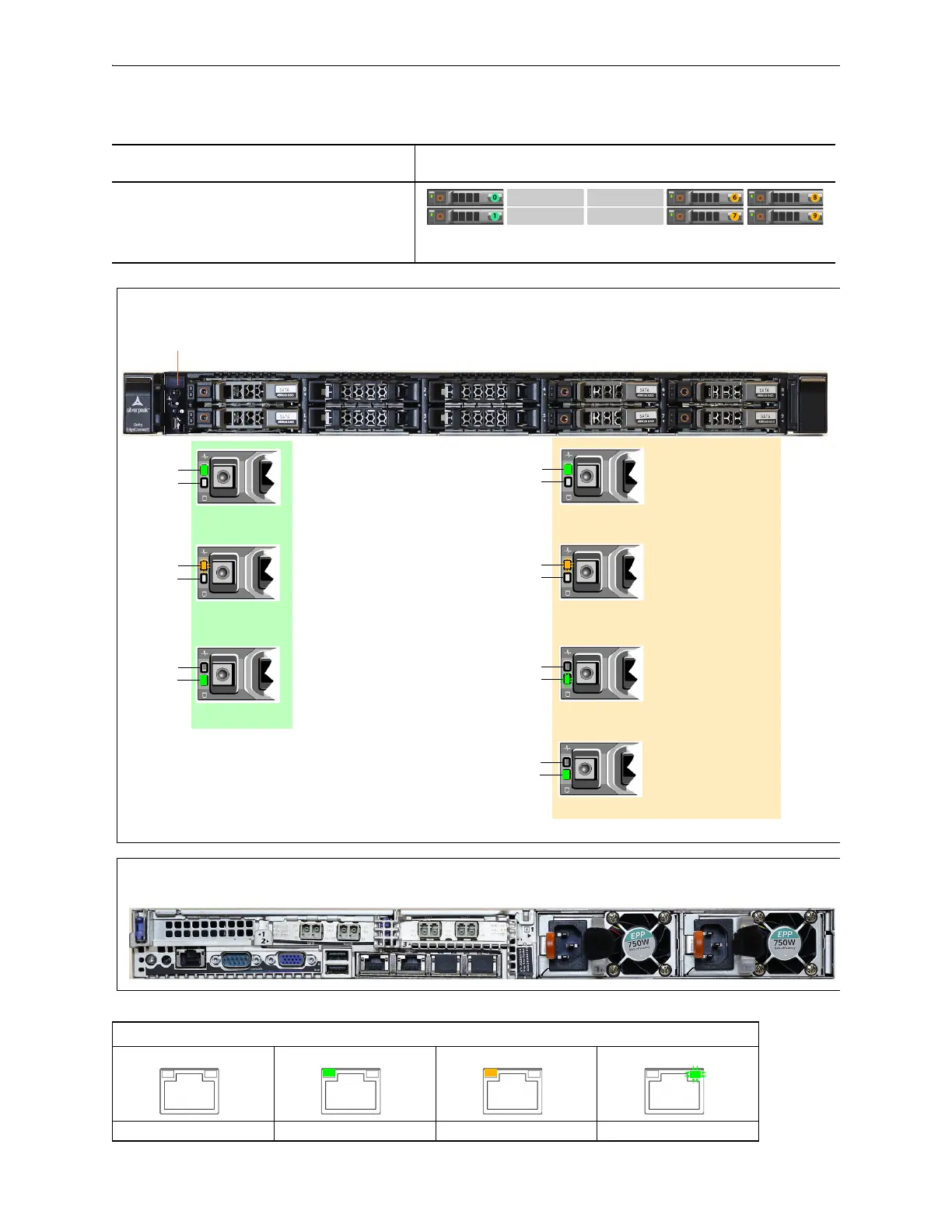

EC-XL-NM [PN 200888] Chapter 6 Appliance Views
PN 200972-001 Rev B 59
EC-XL-NM [PN 200888]
EC-XL-NM
Drives
Power
Supplies Disk Layout
Quantity 2 SSD +
4 NVMe
2
User authorized to replace? yes yes
Hot swappable? yes yes
Front View
Power LED [green = ON]
Status
Activity
Drive online
Status
Activity
Drive failed
Status
Activity
Traffic
(4 blinks/sec)
Status
Activity
Drive online
Status
Activity
Drive failed
Status
Activity
Traffic
(4 blinks/sec)
Status
Activity
Idle
(flashing)
SSD
NVMe
Rear View
mgmt0 & mgmt1
Not connected Connected at max speed Connected at lower speed Traffic
ActivityLink
ActivityLink
ActivityLink
ActivityLink
