NX-5700 [PN 200399] Chapter 6 Appliance Views
PN 200972-001 Rev B 77
.
Each power cord socket has a corresponding green LED to its
left. When a socket receives power, its LED illuminates green.

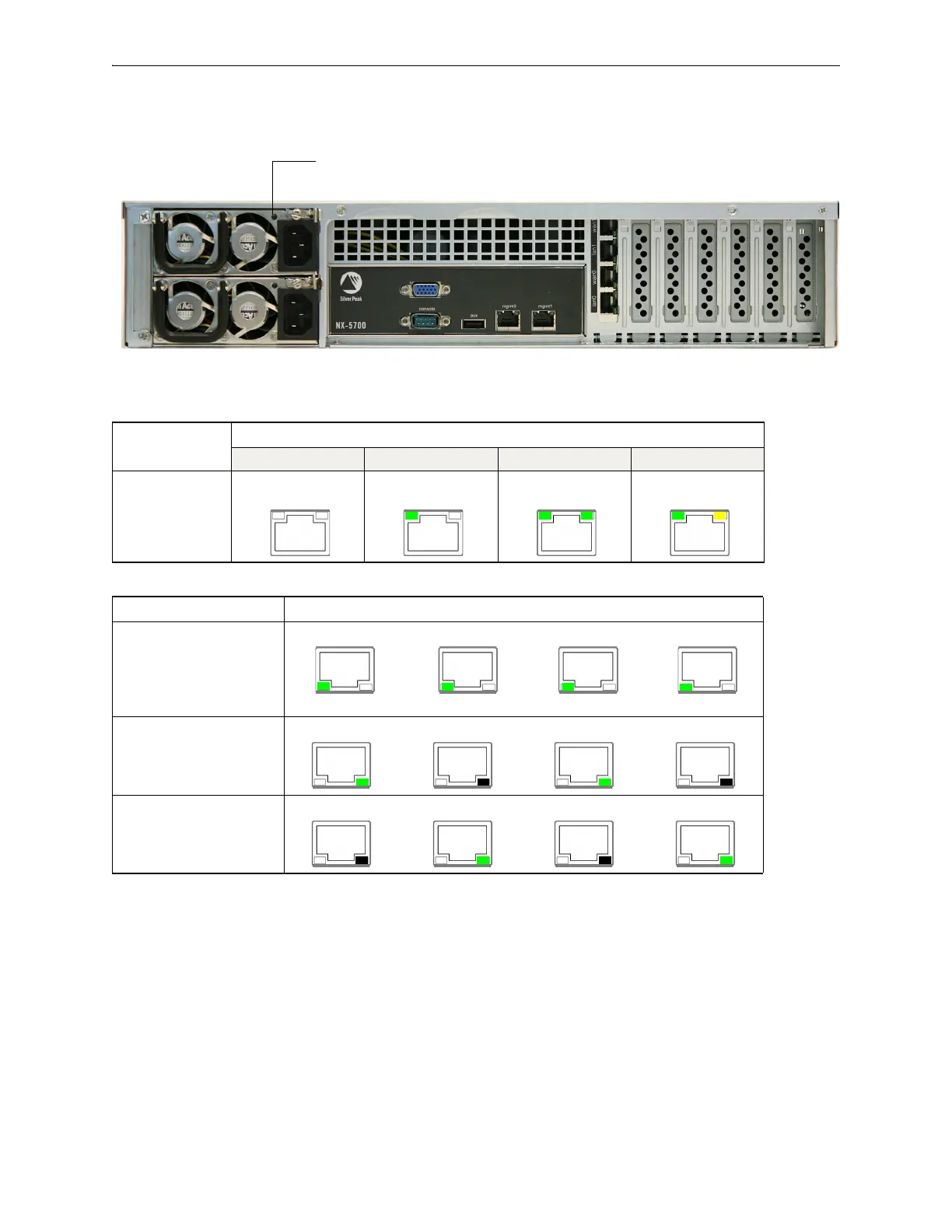

NX-5700 — Rear View
NX-5700
mgmt0 & mgmt1
Not connected 10 Mbps 100 Mbps 1000 Mbps
Speed = solid
Link/Activity:
solid = link
blinking = traffic
Link/
Activity
Speed
Link/
Activity
Speed
Link/
Activity
Speed
Link/
Activity
Speed
NX-5700
Network interfaces
Link/Activity:
solid green = link good
blinking green = traffic
system bypass mode
Ports 0 + 2 – solid green
Ports 1 + 3 – OFF
slave ports
not in system bypass
Ports 0 + 2 – OFF
Ports 1 + 3 – solid green
Link/Activity
lan0 wan0 lan1 wan1
Link/ActivityLink/Activity Link/Activity
lan0 wan0 lan1 wan1
lan0 wan0 lan1 wan1
