NX-8700 [PN 200397] Chapter 6 Appliance Views
PN 200972-001 Rev B 89
Network interfaces
10 Gbps fiber interfaces
You have the option to separately order LR (Long Reach) 10 Gbps Fiber Interfaces to replace the default
SR (Short Reach) modules in the NX-8700 appliance.
Silver Peak supports different module combinations. For example, you may have an SR (Short
Reach) interface for the LAN side and an LR (or Long Reach) for the WAN.
These modules are hot-swappable.
You can distinguish the SR module from the LR module by the number on the label and the color of the
handle.
NX-8700
Network interfaces

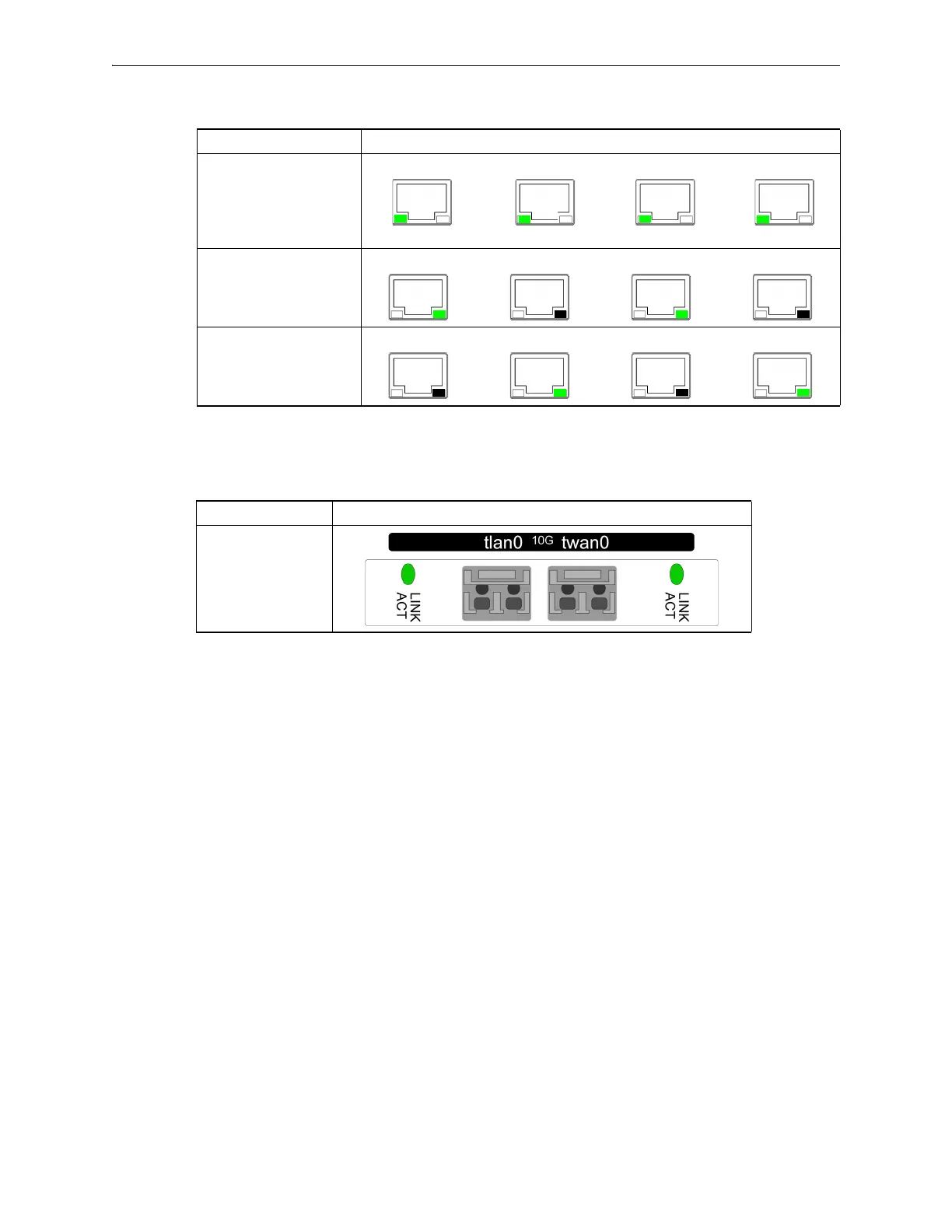

Link/Activity:
solid green = link good
blinking green = traffic
system bypass mode
Ports 0 + 2 – solid green
Ports 1 + 3 – OFF
slave ports
not in system bypass
Ports 0 + 2 – OFF
Ports 1 + 3 – solid green
NX-8700
tlan0 / twan0
all LEDs are green
Link = solid
Activity = blinking
Link/Activity
lan0 wan0 lan1 wan1
Link/ActivityLink/Activity Link/Activity
