6.6 Stencil Foil Design Recommendation
The recommended thickness of stencil foil is 0.15mm.

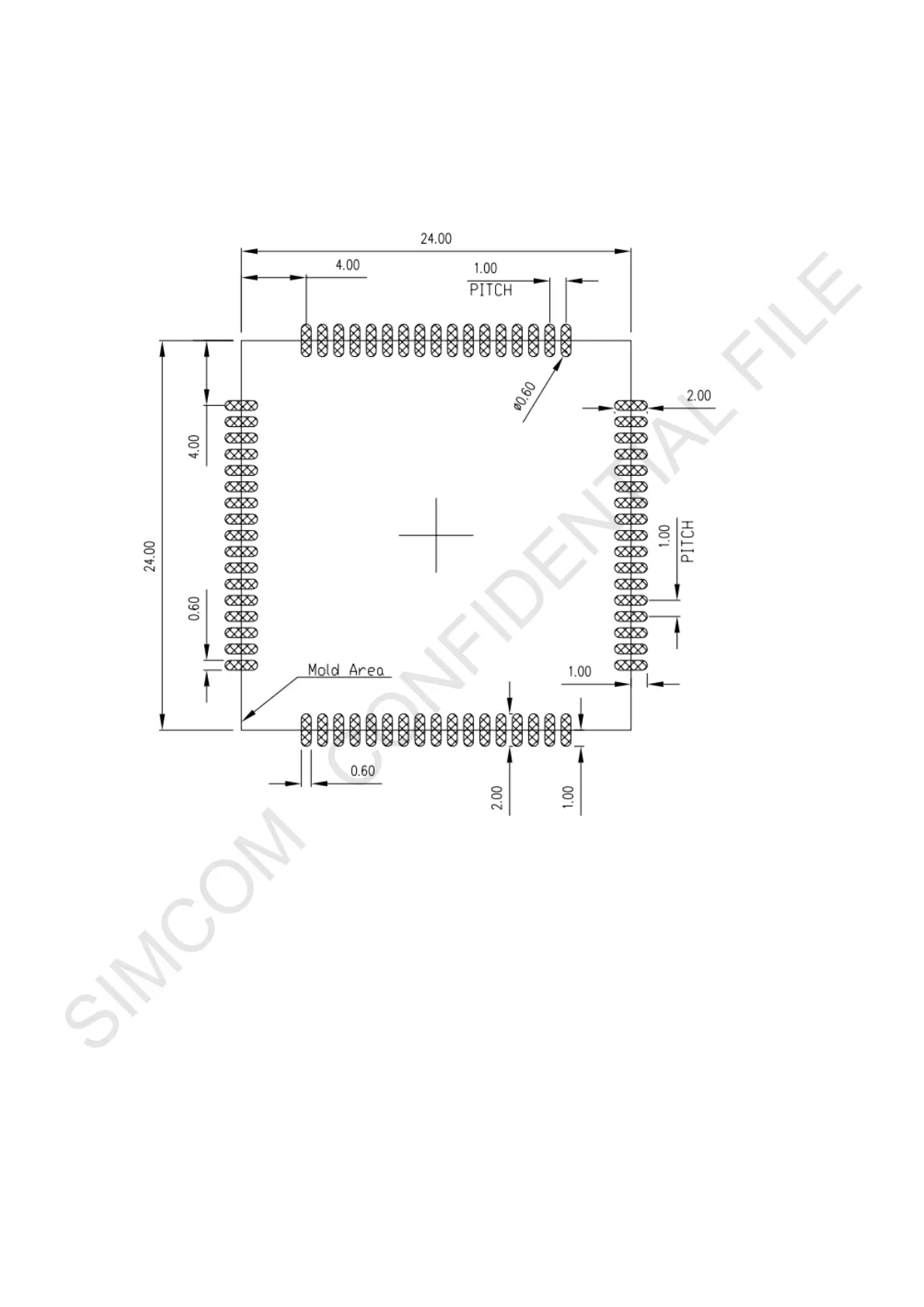

Figure 35: stencil recommendation (Unit: mm)
SIMCOM CONFIDENTIAL FILE
