Smart Machine Smart Decision
SIM7000 _Hardware Design _V1.04 2018-1-31
3.6.2 PCM Application Guide

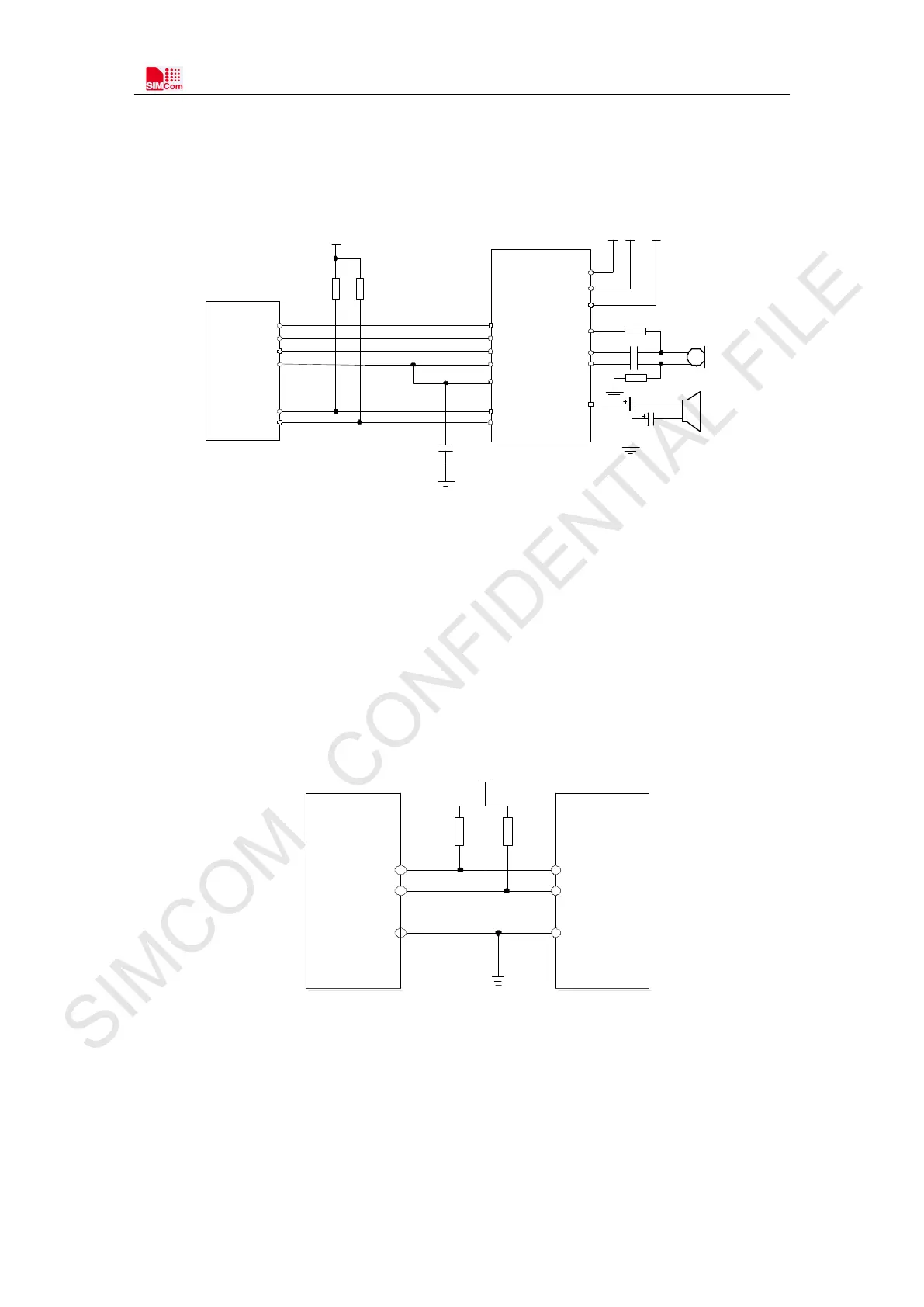

The following figure shows the external codec reference design.
MODULE
PCM_ IN
PCM_ SYNC
PCM_ CLK
PCM_ OUT
33pF
ADCOUT
FS
BCLK
DACIN
MCLK
VDD_ EXT
2.2K
2.2K
SCLK
SDIO
I2C_ SCL
I2C_ SDA
VDDA
VDDSPK
VDDD
3.3V 3.8V
VDD_ EXT
MIC+
MIC-
MICBIAS
MOUT
MIC
SPK
NAU88C10
2.2K
1uF
1uF
47uF
47uF
2.2K
Figure 22: Audio codec reference circuit
3.7 I2C Interface
SIM7000 provides an I2C interface compatible with I2C specification, version 5.0, with clock rate
up to 400 kbps. Its operation voltage is 1.8V.
The following figure shows the I2C bus reference design.
DEVICE
SDA
GND
SCL
VDD_ EXT
2.2K
MODULE
I2C_SDA
GND
I2C_SCL
2.2K
Figure 23: I2C reference circuit
The I2C signal has no pull-up resistors in module. So the pulling up resistors 2.2KΩ to
VDD_EXT are necessary in application circuit.
