4.11.2 PCM Interface

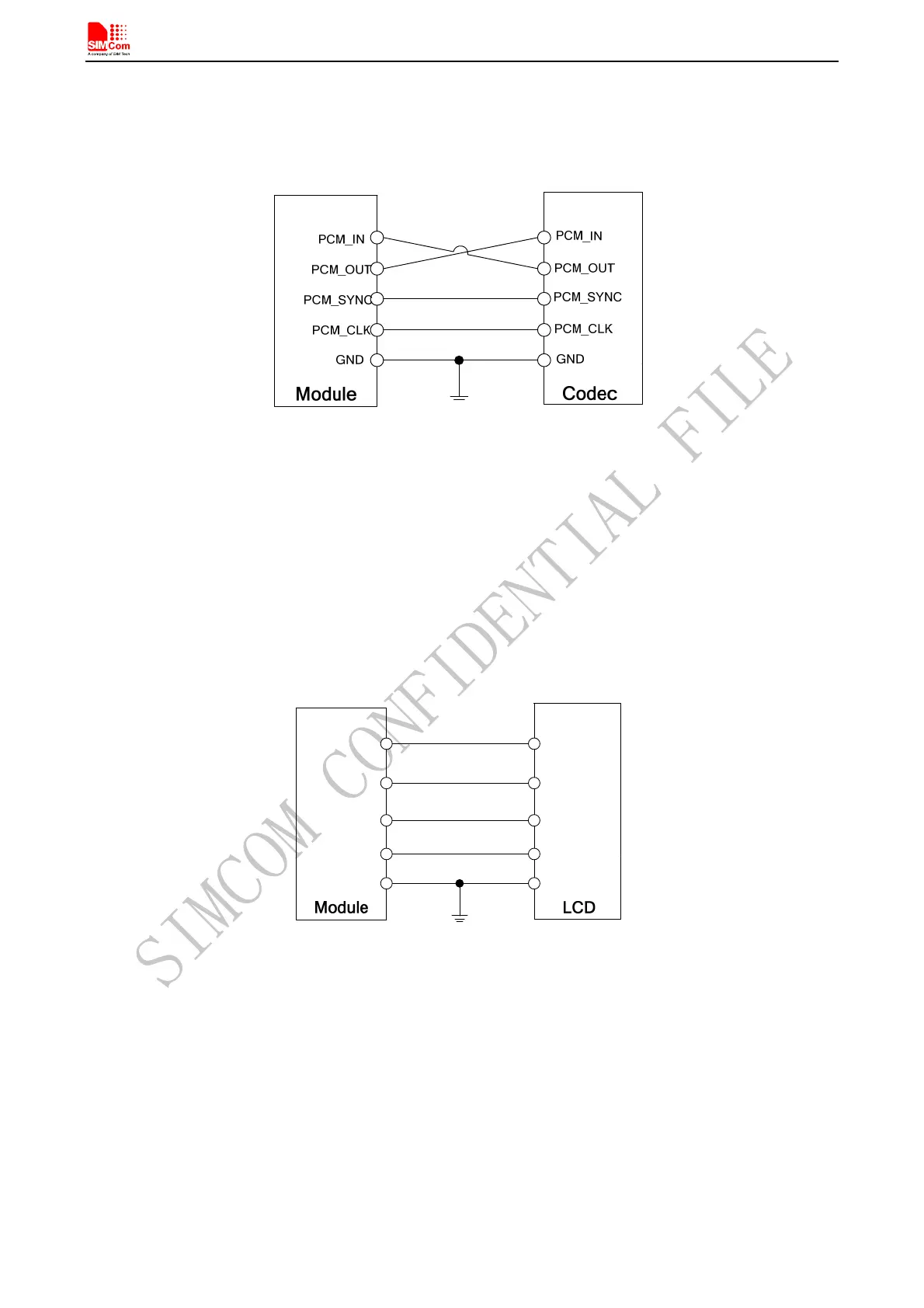

Refer to the following figure for PCM design:
Figure 40: PCM reference circuit
4.11.3 LCD Display/SPI Interface
SIM808 provides a serial interface. It could be used as SPI interface in the embedded AT application. For details
about embedded AT application, please refer to document [1].
Refer to the following figure for SPI design:
DISP_D/C
DISP_CS
SPI_D/C
SPI_CS
SPI_CLK
DISP_CLK
SPI_DATA
DISP_DATA
GND
GND
Figure 41: LCD reference circuit
Note: This function is not supported in the standard firmware. If user wants this function, the firmware must be customized.
Please contact SIMCom for more details.
SIM808_Hardware Design_V1.00 2014.03.27
