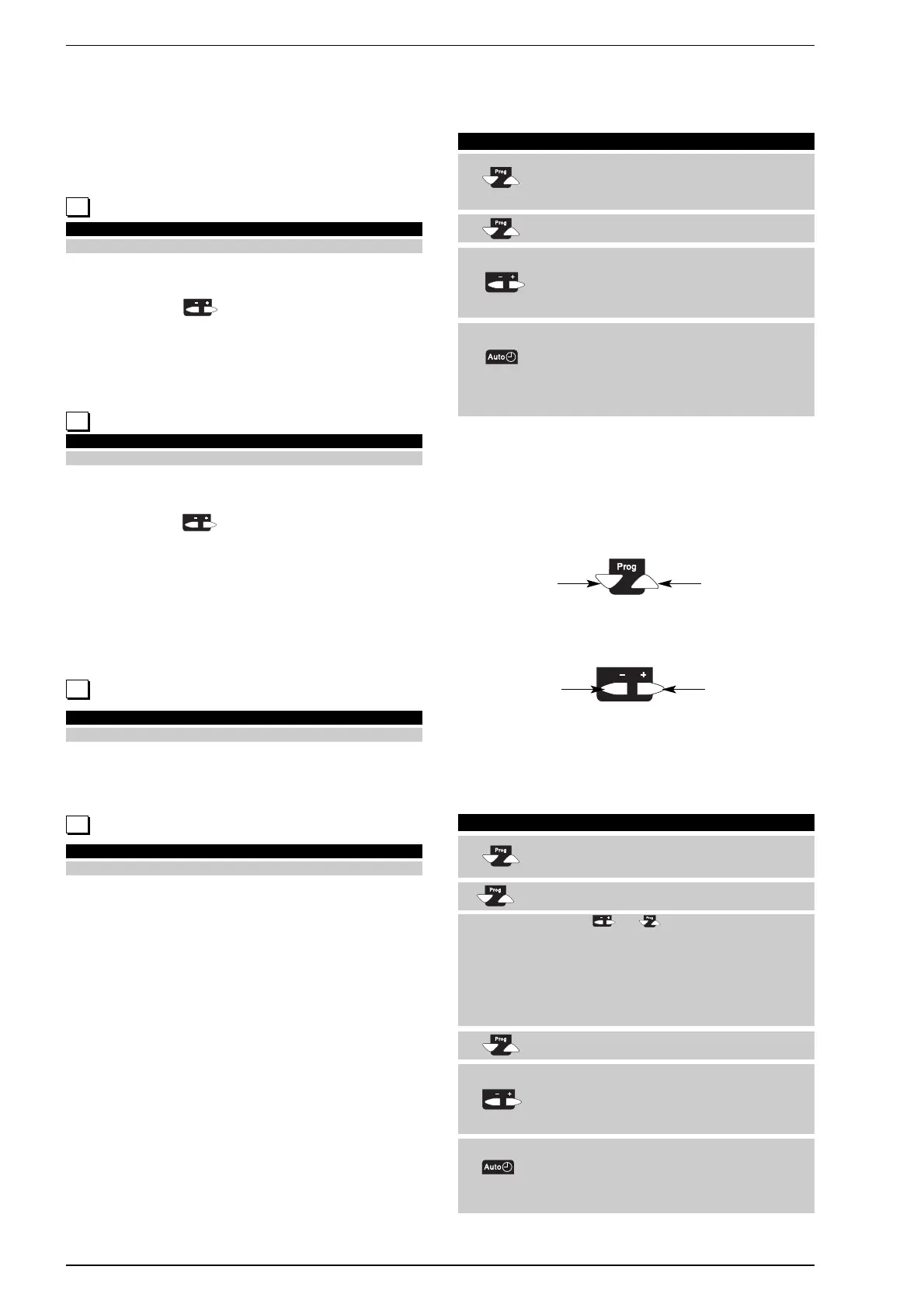

Sime C Series User Manual

83
By following the instructions, it is now possible to set the time
and day of the week, follow the instructions below, Date (day,
month) and year
Time of day (MASTER)
a) Press the row selection pushbuttons to select
row 1.
b) Press the buttons to set the time of day.
The scheduling clock is set to the exact time; this is important
to ensure correct functioning of the controller’s heating sche-
dule.
Day of the week (MASTER)
a) Press the row selection pushbuttons to select
row 2.
b) Press the pushbuttons to set the day of the
week.
The timer will be set to the selected day of the week
1 = Monday 5 = Friday
2 = Tuesday 6 = Saturday
3 = Wednesday 7 = Sunday
4 = Thursday
Date (day, month) (MASTER)
The controller day and month must be set to the current date.
This is important to make sure that the summer/winter set-
ting is switched correctly.
Year (MASTER)
The controller year must be set to the current year. This is
important to make sure that the summer/winter setting is
switched correctly.
2.2.2 Installer level
These parameters must be configured and set by a heating technician.
This mode permits display of a number of parameters, including:
– the type of system recognised (53)
– the actual boiler temperature (55)
– the actual cascade delivery temperature (56)
– the actual cascade return temperature (57)
– the actual hot water temperature (59)
– the cascade delivery temperature pursued, or the cascade delivery
setpoint (66)
– the hot water temperature setpoint (69)
– the room temperature setpoint (70)
Refer to section 11 for a complete list of parameters.
2.2.3 Manufacturer (OEM) level
This level is reserved for the boiler manufacturer only.
If the two Prog keys are number 1 and 2
and the two adjacent keys are numbered 3 and 4
the access code is: “1 2 4 3 4”
Refer to section 12 for a complete list of parameters.
Do not change OEM settings!
Button Description Row
PRESS BOTH ROW SELECTION BUTTONS
1 FOR AT LEAST 3 SECONDS TO GO DIRECTLY TO
“INSTALLER” PROGRAMMING MODE
51
PRESS THE SELECTION BUTTONS TO SELECT
2
THE DESIRED ROW
51......173
PRESS THE PLUS OR MINUS BUTTON TO SET
THE DESIRED VALUE. THE SETTING WILL BE
3 STORED IN
MEMORY WHEN YOU EXIT
PROGRAMMING MODE OR
GO ON TO ANOTHER
ROW
TO EXIT “INSTALLER” PROGRAMMING MODE, PRESS
ONE OF THE OPERATING MODE BUTTONS.
4
If you do not press any button for about 8
minutes, the controller will automatically return
to its most recent operating mode
1
2
3s
1 2
3 4
Button Description Row
PRESS ONE OF THE UP/DOWN BUTTONS
1 TO GO DIRECTLY TO “END USER” 1
PROGRAMMING MODE
PRESS THE ROW SELECTION BUTTONS FOR AT
2
LEAST 9 SECONDS
°°
PRESS THE AND BUTTONS TO ENTER
THE ACCESS CODE COMBINATION REQUIRED.
IF THE COMBINATION OF BUTTONS IS CORRECT
YOU WILL ENTER OEM PROGRAMMING MODE
3 CODICE
IF THE CODE IS WRONG, THE DISPLAY WILL GO
ON TO “SETTING PARAMETERS FOR
THE HEATING TECHNICIAN”.
PRESS THE SELECTION BUTTON TO SELECT THE
4
DESIRED ROW.
1.....92
PRESS THE PLUS OR MINUS BUTTON TO SET THE
DESIRED VALUE.
5
THE SETTING WILL BE STORED IN MEMORY
WHEN YOU
EXIT PROGRAMMING MODE OR
GO ON TO ANOTHER ROW.
TO EXIT “OEM” PROGRAMMING MODE, PRESS
ONE OF THE OPERATING MODE BUTTONS.
6
If you do not press any button for about 8
minutes, the controller will automatically return
to its most recent operating mode.
9s
Setting range Units
00.00…..23:59 Hours: Minutes
Setting range Units
1…..7 Day of the week
3
Setting range Units
01 : 01 ….. 31 : 12 day month
4
Setting range Units
1999 ….. 2099 Year
