User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141

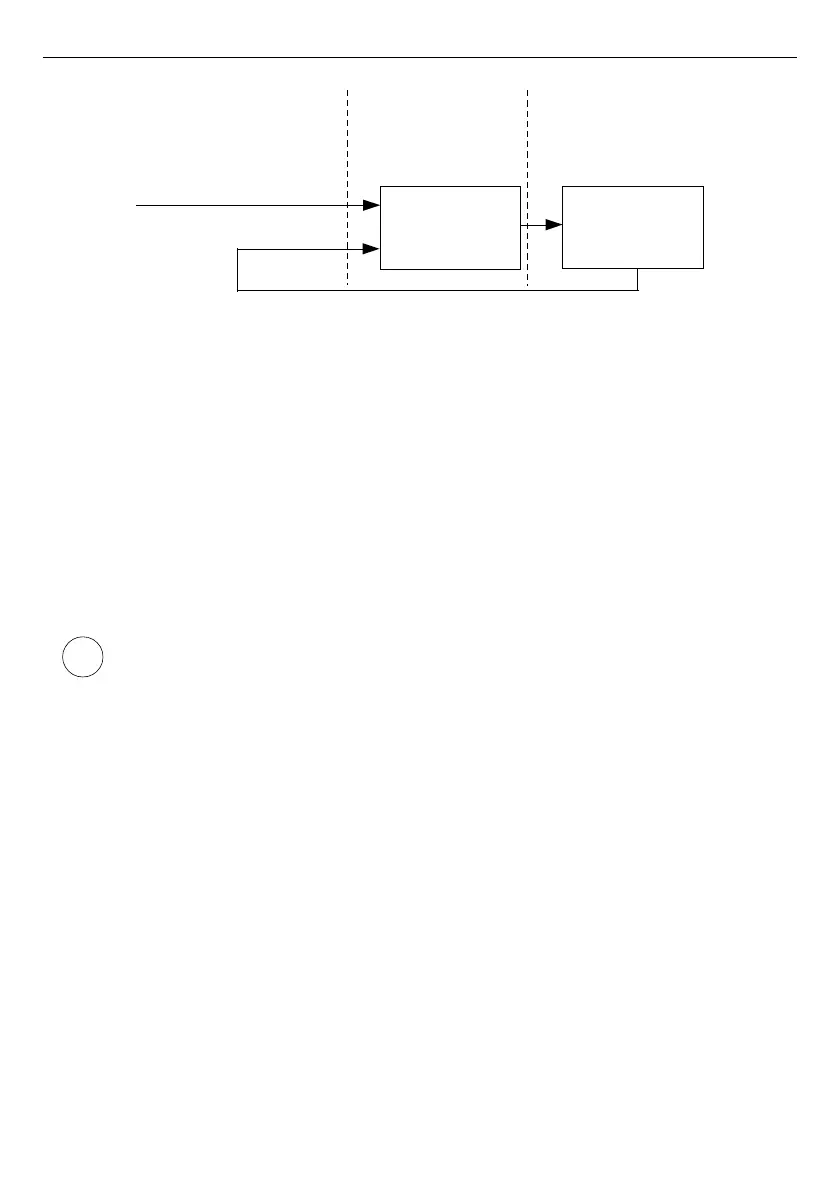

Fig. 7.61. The overall structure of control system implemented in the device
–
Latch
parameter block - allows the user to set the
latch function
which will hold the
last value of a channel (discussed in
Chapter 7.8.1. Logical Channels - General
settings
),
–
Processing
parameter block - is used for scaling and filtering data (discussed in
Chapter 7.8.1. Logical Channels - General settings
),
–
Displaying
parameter block - for these parameters the user selects the format and
range of data displayed on the screen (discussed in
Chapter 7.8.1. Logical
Channels - General settings
).
The user must configure the controller parameters in the
Controllers
menu
before using this controller to control a real object (To read more about
Controllers profiles
see
Chapter 7.13. CONTROLLERS
).
116
i
Controller
Control
system
Set point value
feedback
Input
Output
Multicon
