7.8.11.6. Application of Logical channel in the Hardware input for TC8 modules
See also: Appendices 8.6. TC4, TC8, TC12 – THERMOCOUPLE SENSOR
MEASUREMENT MODULES and Chapter 7.8.6. Logical Channels - Math function mode.
Task:
In this example we calculate the mean value from logic channels 1÷8. In these channels
there are values from thermocouple sensors that are located around the furnace.
Solution:
Before measuring the temperature, the user should configure the device as follows and
then connect the thermocouple sensors to the device. An example of the connection is shown
in
Fig. 7.76
.

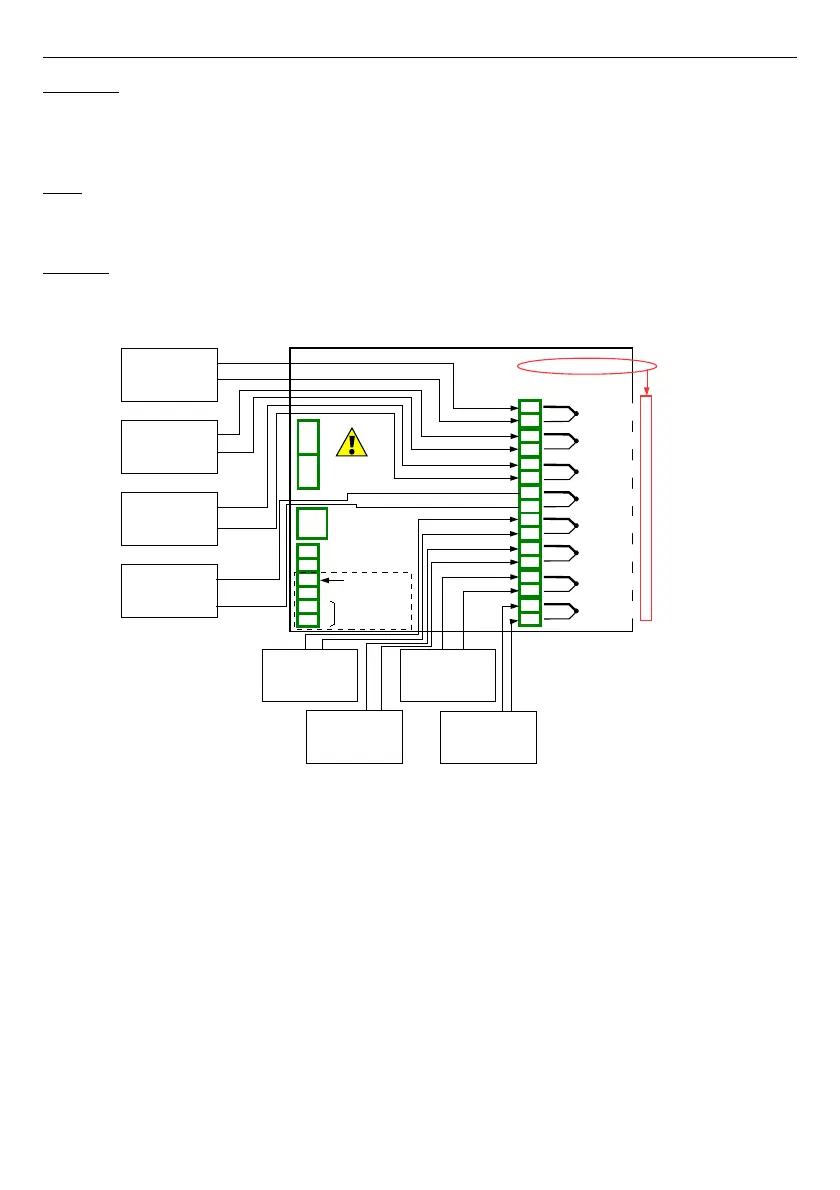

Fig. 7.76. Schematic diagram for the TC8 module
To configure logical channels for reading temperatures from 1÷8 inputs (names
Temperature 1
,
Temperature 2
, etc.) we should follow the same way as in
7.8.11.2.
Application of Logical channel in the Hardware input mode for TC4 modules
.
For Logical channel in the
Math function
mode to calculate an average value:
– touch the screen and press the
Menu
button,
– press the
Device configuration
button,
– enter the
Logical channels
menu,
– using the arrows in the top navigation bar, select any
logical channel
(except 1÷8)
such as
9
,
– in the
Name
parameter write
Mean value
,
– Mode parameter set as
Math function
,
– enter the
Function
submenu to select the appropriate function that allows the
calculation of the mean value,
138
Power supply
(depending on version)
1
2
8
5
6
7
3
4
SERVICE
+24V DC ±5% ( I max. = 200m A)
digital input
0/15..24V DC
RS-485
GND
GND
A+
B-
isolated
TC4
4 thermocouple input
IN1
+
-
IN2
+
-
IN3
+
-
IN4
+
-
n01
n02
n03
n04
n05
n06
n07
n08
1
5
6
7
4
2
Slot A
IN6
+
-
IN7
+
-
IN8
+
-
n09
n10
n11
n12
n13
n14
n15
n16
3
8
Inp.A1 : Thermocouple
Inp.A2 : Thermocouple
Inp.A3 : Thermocouple
Inp.A4 : Thermocouple
Inp.A5 : Thermocouple
Inp.A6 : Thermocouple
Inp.A7 : Thermocouple
Inp.A8 : Thermocouple
IN5
-
+
