Timing
parameter block
The parameters of this block include:
–
Period
- the duration of one cycle of output pulse (the minimum value is 0.1
seconds),
–
Minimum ON time
- minimum duration of a high state (after switching to a high
state, switching back is possible after
Minimum On time
), see
Fig. 7.94
,
–
Minimum OFF time
- minimum duration of a low state (after switching to a low state,
switching back is possible after
Minimum OFF time
), see
Fig. 7.94
,

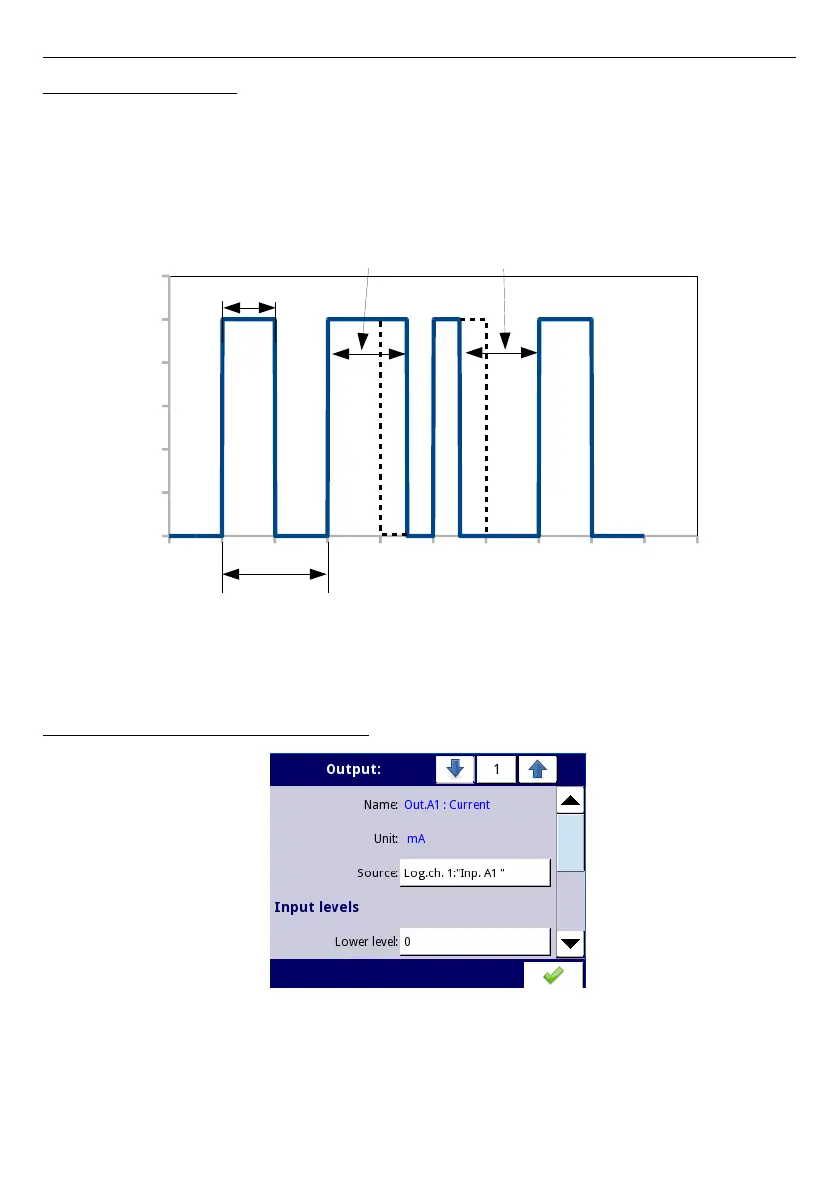

Fig. 7.94. Sample of output signal of SSR relay in PWM mode
7.10.4. Built-in output - Current output
Fig. 7.95. Menu of the Passive current output
The parameters of the built-in output for the
Current outputs
module are:
–
Name
– each output already has a name given by the device and the user cannot
change it - see
Fig. 7.84
,
171
0 10 20 30 40 50 60 70 80 90 100
0
2
4
6
8
10
12
Time [s]
PWM output [V]
T=20s
Parameter: Minimum ON time, Minimum OFF time
t=10s (D=50%)
