Looping
parameter set as
disabled
, because we want the Profile to be executed
only once after triggering from logical channel 2,
– in the end leave the
Profiles/timers
menu,
In the next step you need to define a
Logical channel
:
– touch the screen and press the
Menu
button,
– press the
Device configuration
button,
– enter the
Logical channels
menu,
– using the arrows in the top navigation bar, select any
Logical channel
such as
1
,
– in the
Name
parameter write
Profile
,
–
Mode
parameter set as
P/T1:”Profile 1”
,
– for
Displaying
block parameters:
•
Format
parameter set as
numeric
,
•
Precision
parameter set as
0.0
,
•
in
Graph low
parameter write
0
,
•
in
Graph high
parameter write
10
,
The way of configuring a logical channel (
Triggering source
) in the
Hardware input
mode for the
current input
is shown in
7.8.11.1. Application of the Logical channel in the
Hardware input mode for the UI4 module
(this is the way to configure the logical channel
2).
The another method is described in
Chapter
7.8.11.9. Application of Logical channel
in the Profile/timer mode.
7.12.4.2. Application of the Profiles/timers triggered on time
See also: C
hapter 7.12.3. Profiles/timers - Triggering mode: on time
.
Task:
The task is to create a Profile/timer in logical channel 3, which will generate its profile
from the moment of turning on the device till turning it off. The profile consists of two sections:
1. const.value 1 within 0.2 second,
2. const.value 0 within 1.8 second,

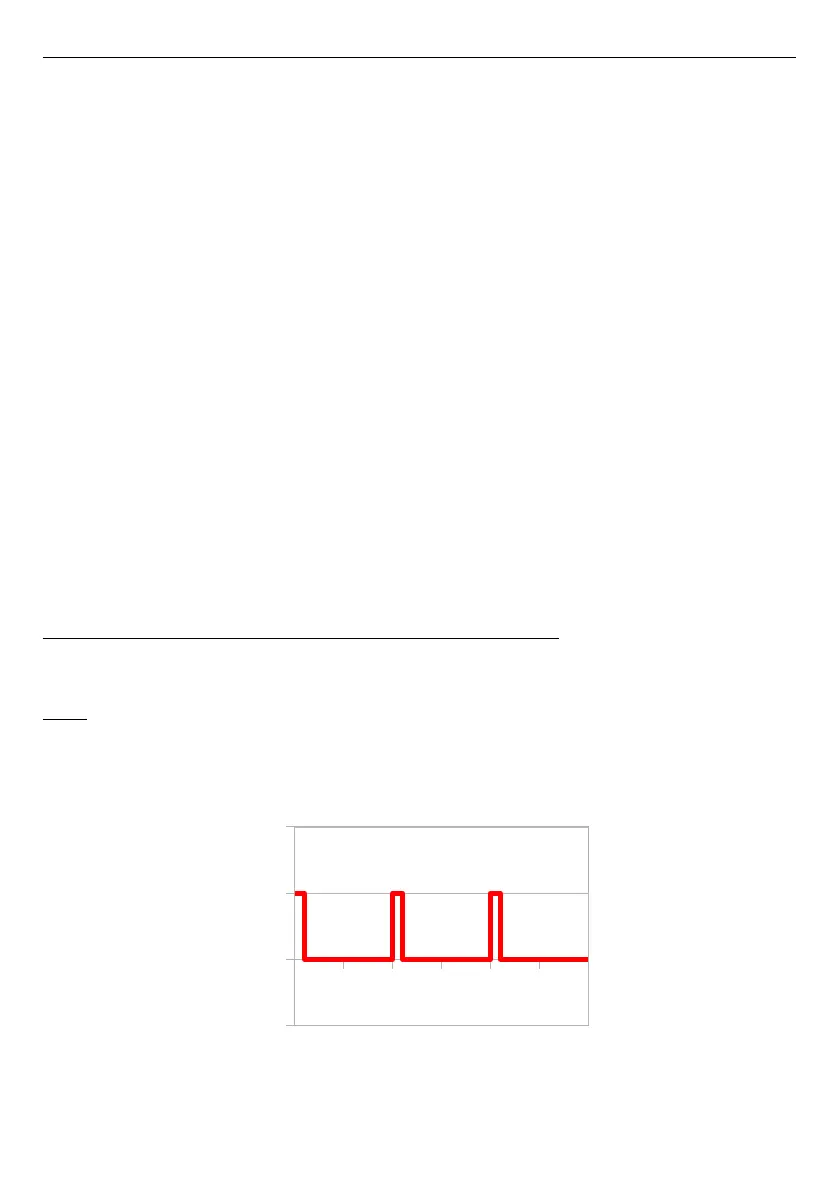

Fig. 7.114. An example of the waveform
197
0 1 2 3 4 5 6
-1
0
1
2
Time [s]
Value
