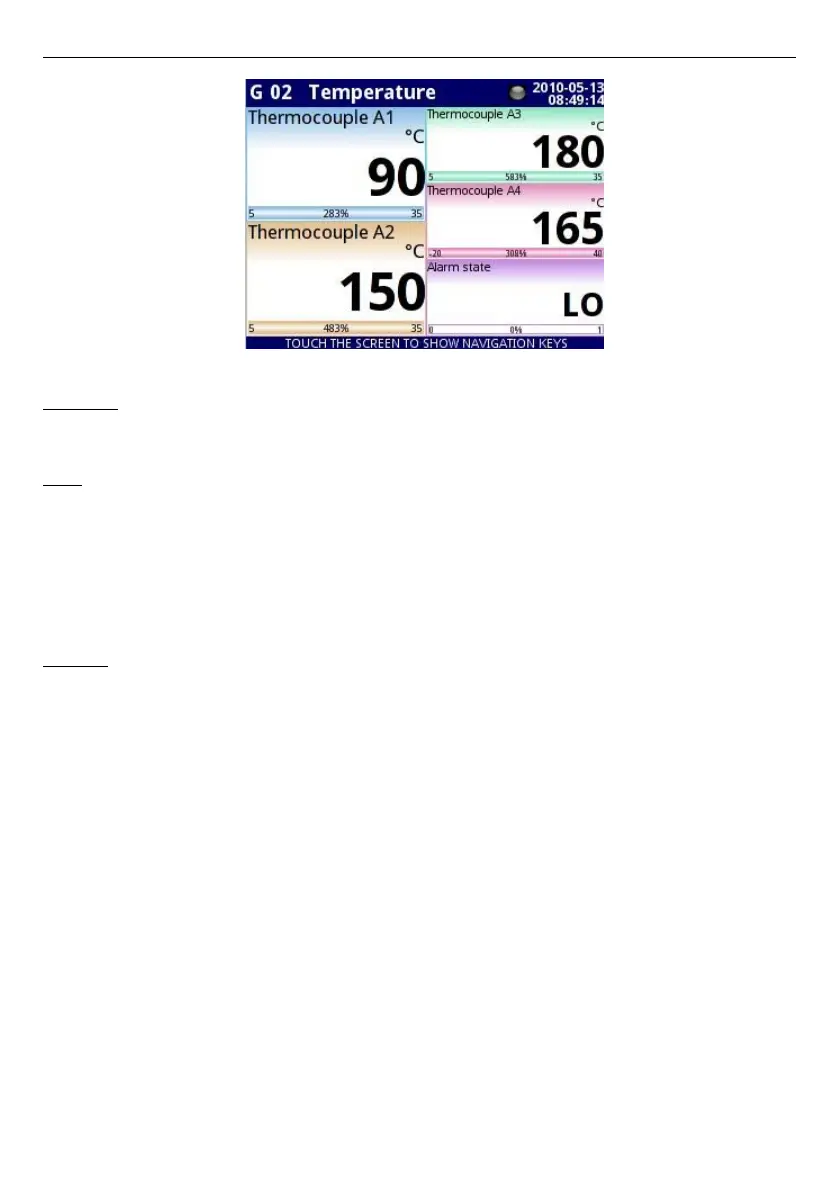

Fig. 7.70. The proposition of Example 2 result
7.8.11.3.
Application of Logical channel in the Hardware input mode for RT4 modules
See also:
Appendices
8.7. RT4 , RT6 – RTD MEASUREMENT MODULES.
Task:
The MultiCon with the built-in
RT4
module can simultaneously measure temperature at
four points. Suppose we want to monitor the temperature in the office, warehouse, basement
and corridor. To monitor the temperature in the first two channels, we will use the PT1000
sensors and 3-wire connections, and for the rest PT100 and 2 and 4-wire connections. We
want to read the temperature from 4 sensors in one window in the vertical bars mode.
In addition, we want to log the temperature every 1 minute (for more details about logging see
Chapter
7.14.2 Groups - Logging options
).
Solution:
Before measuring the temperature the user should configure the device and then
connect the sensors as shown in
Fig. 7.71
.
131
