User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
8.2. UI4, UI8, UI12, U16, U24, I16, I24 – VOLTAGE AND CURRENT
MEASUREMENT MODULES

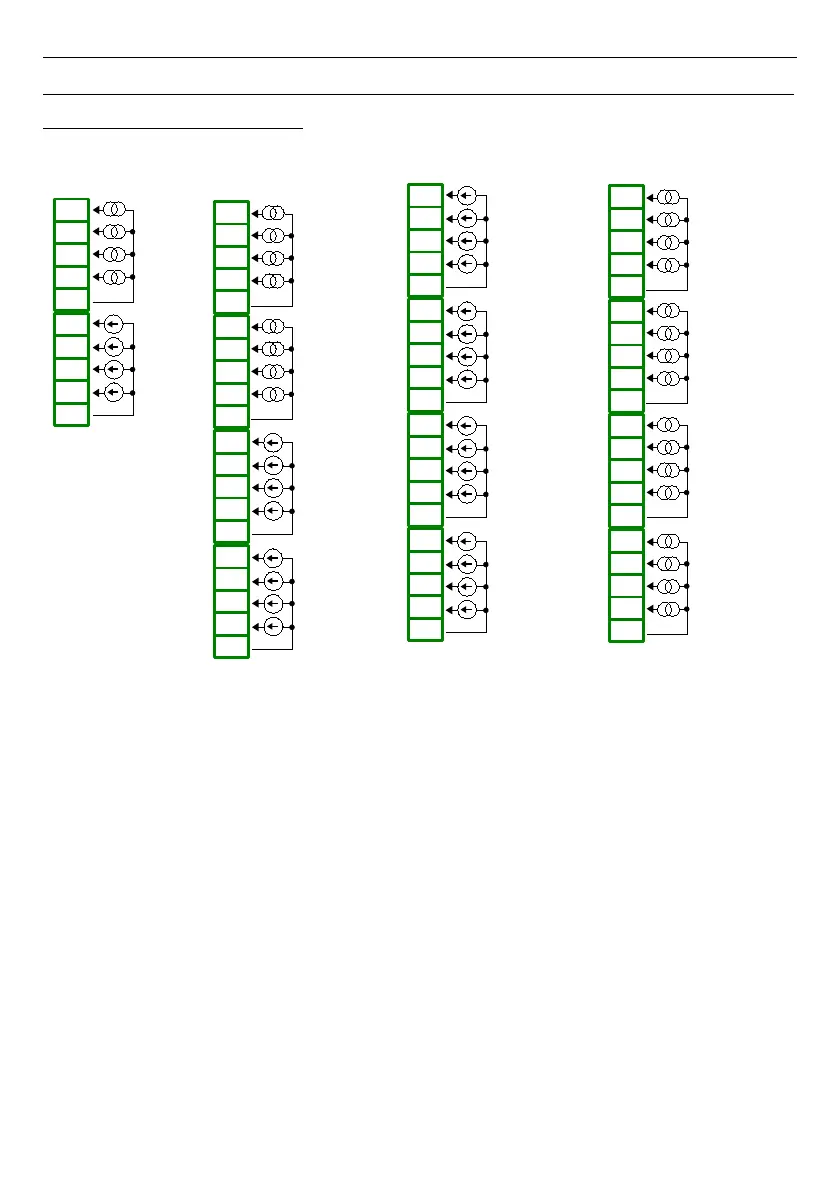

Fig. 8.2. Voltage and current measurement modules
266
UI4
4 current
+ 4 voltage inputs
n08
n09
n10
n04
n05
n06
n07
n01
n02
n03
GND
IN1
IN2
IN3
IN4
4 x 0-20mA
GND
IN5
IN6
IN7
IN8
4 x 0-10V
UI8
8 current
+ 8 voltage inputs
n08
n09
n10
n11
n12
n04
n05
n06
n07
n01
n02
n03
n20
n16
n17
n18
n19
n13
n14
n15
GND
IN1
IN2
IN3
IN4
4 x 0-20mA
GND
IN5
IN6
IN7
IN8
4 x 0-20mA
GND
IN9
IN10
IN11
IN12
4 x 0-10V
GND
IN13
IN14
IN15
IN16
4 x 0-10V
U16
16 voltage inputs
n08
n09
n10
n11
n12
n04
n05
n06
n07
n01
n02
n03
n20
n16
n17
n18
n19
n13
n14
n15
GND
IN9
IN10
IN11
IN12
4 x 0-10V
GND
IN13
IN14
IN15
IN16
4 x 0-10V
GND
IN1
IN2
IN3
IN4
4 x 0-10V
GND
IN5
IN6
IN7
IN8
4 x 0-10V
I16
16 current inputs
n08
n09
n10
n11
n12
n04
n05
n06
n07
n01
n02
n03
n20
n16
n17
n18
n19
n13
n14
n15
GND
IN1
IN2
IN3
IN4
4 x 0-20mA
GND
IN5
IN6
IN7
IN8
4 x 0-20mA
GND
IN9
IN10
IN11
IN12
4 x 0-20mA
GND
IN13
IN14
IN15
IN16
4 x 0-20mA
